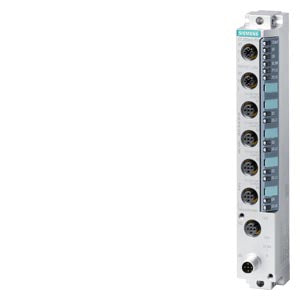

SIMATIC DP 4 IO-Link 4x M12 PN
| General information | ||
| Vendor identification (VendorID) | 002AH | |
| Device identifier (DeviceID) | 0306H | |
| Product function | ||
| Isochronous mode | No | |
| IRT | No | |
| Operating mode | ||
| IO-Link | Yes | |
| DI | Yes | |
| DQ | Yes; max. 100 mA | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| Reverse polarity protection | Yes | |
| power supply according to NEC Class 2 required | Yes | |
| Load voltage 2L+ | ||
| Rated value (DC) | 24 V | |
| Reverse polarity protection | Yes; against destruction; load increasing | |
| Input current | ||
| Current consumption, typ. | 100 mA | |
| from supply voltage 1L+, max. | 4 A | |
| from load voltage 2L+, max. | 4 A | |
| Encoder supply | ||
| Number of outputs | 4 | |
| 24 V encoder supply | ||
| Short-circuit protection | Yes; per channel, electronic | |
| Output current, max. | 500 mA; Per channel | |
| Power loss | ||
| Power loss, typ. | 4.8 W | |
| IO-Link | ||
| Number of ports | 4 | |
| of which simultaneously controllable | 4 | |
| IO-Link protocol 1.0 | Yes | |
| IO-Link protocol 1.1 | Yes | |
| Transmission rate | 4.8 kBaud (COM1); 38.4 kBaud (COM2), 230 kBaud (COM3) | |
| Size of process data, input per port | 32 byte | |
| Size of process data, input per module | 128 bytes + 4 bytes PQI | |
| Size of process data, output per port | 32 byte | |
| Size of process data, output per module | 128 byte | |
| Memory size for device parameter | 2 kbyte; for each port | |
| Master backup | Possible with function block IO_LINK_MASTER | |
| Configuration without S7-PCT | Possible; autostart/manual function | |
| Cable length unshielded, max. | 20 m | |
| Operating modes | ||
| IO-Link | Yes | |
| DI | Yes | |
| DQ | Yes; max. 100 mA | |
| Connection of IO-Link devices | ||
| Port type A | Yes; via 3-core cable | |
| Port type B | Yes; Additional device supply: max. 2 A per port, max. 4 A per module | |
| Interfaces | ||
| Transmission procedure | 100BASE-TX | |
| Number of PROFINET interfaces | 1 | |
| 1. Interface | ||
| Interface types | ||
| M12 port | Yes | |
| integrated switch | Yes | |
| PROFINET IO Device | ||
| Services | ||
| IRT with the option "high flexibility" | Yes | |
| Interface types | ||
| M12 port | ||
| Autonegotiation | Yes | |
| Autocrossing | Yes | |
| Transmission rate, max. | 100 Mbit/s | |
| Protocols | ||
| Supports protocol for PROFINET IO | Yes | |
| PROFINET CBA | No | |
| PROFIsafe | No | |
| EtherNet/IP | No | |
| Redundancy mode | ||
| Media redundancy | ||
| MRP | Yes | |
| Open IE communication | ||
| TCP/IP | No | |
| SNMP | Yes | |
| DCP | Yes | |
| LLDP | Yes | |
| ping | Yes | |
| ARP | Yes | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes | |
| Alarms | ||
| Diagnostic alarm | Yes | |
| Diagnoses | ||
| Diagnostic information readable | Yes | |
| Monitoring the supply voltage | Yes; green "ON" LED | |
| Short-circuit | Yes; Device supply to M | |
| Group error | Yes; Red/yellow "SF/MT" LED | |
| Potential separation | ||
| between the load voltages | Yes | |
| between load voltage and all other switching components | No | |
| between Ethernet and electronics | Yes | |
| Isolation | ||
| tested with | ||
| 24 V DC circuits | 707 V DC (type test) | |
| Test voltage for interface, rms value [Vrms] | 1 500 V; According to IEEE 802.3 | |
| Degree and class of protection | ||
| IP degree of protection | IP65/67 | |
| Standards, approvals, certificates | ||
| Suitable for safety-related tripping of standard modules | No | |
| Use in hazardous areas | ||
| Explosion protection category for gas | ATEX II 3G Ex nA II T4 | |
| Explosion protection category for dust | ATEX II 3D Ex tc IIIC T90°C Dc | |
| connection method | ||
| Design of electrical connection | 3/5-pin M12 round connectors | |
| Dimensions | ||
| Width | 30 mm | |
| Height | 200 mm | |
| Depth | 49 mm | |
| Weights | ||
| Weight, approx. | 550 g | |
| Approvals / Certificates | ||
