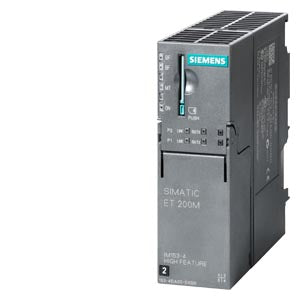

Siemens - 6ES7153-4BA00-0XB0
Siemens - 6ES7153-4BA00-0XB0
Regular price
€526,06 EUR
Regular price
Sale price
€526,06 EUR
Couldn't load pickup availability
Low stock: 2 left
SIMATIC DP IM 153-4 PN IO
| General information | ||
| Product type designation | IM 153-4 PN HF | |
| Vendor identification (VendorID) | 002AH | |
| Device identifier (DeviceID) | 0302H | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 20.4 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| external protection for power supply lines (recommendation) | In a construction with grounded reference potential, a fuse is necessary for redundant interface modules (Recommendation: 2.5 A) | |
| Mains buffering | ||
| Mains/voltage failure stored energy time | 5 ms | |
| Input current | ||
| Current consumption, max. | 600 mA; with 24 V DC supply | |
| Inrush current, typ. | 4 A | |
| I²t | 0.09 A²·s | |
| output voltage / header | ||
| Rated value (DC) | 5 V | |
| Output current | ||
| for backplane bus (5 V DC), max. | 1.5 A | |
| Power loss | ||
| Power loss, typ. | 6 W | |
| Address area | ||
| Addressing volume | ||
| Inputs | 672 byte; Extended HART user data | |
| Outputs | 192 byte | |
| Hardware configuration | ||
| number of modules per DP device interface, max. | 12 | |
| Protocols | ||
| Bus protocol/transmission protocol | PROFINET IO | |
| Protocols (Ethernet) | ||
| TCP/IP | Yes | |
| SNMP | Yes | |
| LLDP | Yes | |
| ping | Yes | |
| ARP | Yes | |
| PROFINET IO Device | ||
| Services | ||
| IRT | Yes | |
| PROFIenergy | No | |
| Prioritized startup | Yes | |
| Shared device | Yes | |
| Number of IO Controllers with shared device, max. | 2 | |
| Redundancy mode | ||
| PROFINET system redundancy (S2) | Yes; on S7-400H | |
| Media redundancy | ||
| MRP | Yes | |
| Interrupts/diagnostics/status information | ||
| Diagnostics indication LED | ||
| LINK LED | Yes; green LED | |
| RX/TX LED | Yes; Yellow LED | |
| for module diagnostics | Yes | |
| Potential separation | ||
| Potential separation exists | Yes; Only direction PROFINET, RWB is not separated | |
| Isolation | ||
| Isolation tested with | Between PROFINET and 24 V supply: 1 500 V AC, between functional grounding and 24 V supply: 500 V DC | |
| Degree and class of protection | ||
| IP degree of protection | IP20 | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| min. | 0 °C | |
| max. | 60 °C | |
| Altitude during operation relating to sea level | ||
| Installation altitude above sea level, max. | 2 000 m | |
| Dimensions | ||
| Width | 40 mm | |
| Height | 125 mm | |
| Depth | 118 mm | |
| Weights | ||
| Weight, approx. | 215 g | |
| Approvals / Certificates | ||
