Siemens - 6ES7154-2AA01-0AB0
Siemens - 6ES7154-2AA01-0AB0
Regular price
€148,45 EUR
Regular price
Sale price
€148,45 EUR
Couldn't load pickup availability
Low stock: 1 left

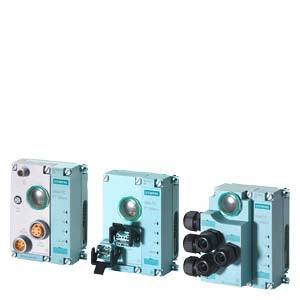

SIMATIC DP IM 154-2 HF
| General information | ||
| Product type designation | IM 154-2 DP HF | |
| Vendor identification (VendorID) | 8119H | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| Reverse polarity protection | Yes; against destruction | |
| Short-circuit protection | Yes; over exchangeable fuses | |
| power supply according to NEC Class 2 required | No | |
| Load voltage 2L+ | ||
| Rated value (DC) | 24 V | |
| Reverse polarity protection | Yes; against destruction | |
| Input current | ||
| from supply voltage 1L+, max. | 200 mA | |
| Power loss | ||
| Power loss, typ. | 5 W | |
| Address area | ||
| Addressing volume | ||
| Inputs | 244 byte | |
| Outputs | 244 byte | |
| Interfaces | ||
| Interfaces/bus type | PROFIBUS DP | |
| Interface types | ||
| RS 485 | ||
| Transmission rate, max. | 12 Mbit/s | |
| automatic detection of transmission rate | Yes | |
| Protocols | ||
| Supports protocol for PROFINET IO | No | |
| PROFIsafe | Yes | |
| PROFIBUS | Yes | |
| EtherNet/IP | No | |
| PROFIBUS DP | ||
| Services | ||
| SYNC capability | Yes | |
| FREEZE capability | Yes | |
| Direct data exchange (slave-to-slave communication) | Yes | |
| Interrupts/diagnostics/status information | ||
| Alarms | ||
| Diagnostic alarm | Yes; Parameterizable | |
| Hardware interrupt | Yes; Parameterizable | |
| Diagnostics indication LED | ||
| For load voltage monitoring | Yes | |
| Bus fault BF (red) | Yes | |
| Group error SF (red) | Yes | |
| Monitoring 24 V voltage supply ON (green) | Yes | |
| Parameter | ||
| Swapping interrupt | Parameterizable | |
| Startup if setpoint not equal to actual configuration | Parameterizable | |
| Hot swapping of modules | possible | |
| Potential separation | ||
| between supply voltage and electronics | Yes | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Degree and class of protection | ||
| IP degree of protection | IP65/67 | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| min. | -25 °C | |
| max. | 55 °C | |
| Ambient temperature during storage/transportation | ||
| min. | -40 °C | |
| max. | 70 °C | |
| Dimensions | ||
| Width | 90 mm | |
| Height | 130 mm | |
| Depth | 60 mm | |
| Weights | ||
| Weight, approx. | 375 g | |
| Approvals / Certificates | ||
