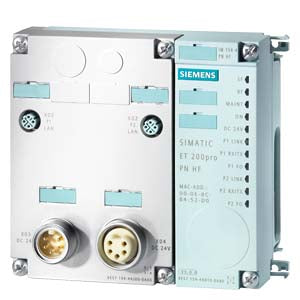

Siemens - 6ES7154-4AB10-0AB0
Siemens - 6ES7154-4AB10-0AB0
Regular price
€150,51 EUR
Regular price
Sale price
€150,51 EUR
Couldn't load pickup availability
Low stock: 1 left
SIMATIC DP IM 154-4 PN HF
| General information | ||
| Product type designation | IM 154-4 PN HF | |
| Vendor identification (VendorID) | 0x002A | |
| Device identifier (DeviceID) | 0x0305 | |
| Product function | ||
| IRT | Yes | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| Reverse polarity protection | Yes; against destruction | |
| Short-circuit protection | Yes; Fuse in lower part is exchangeable, the fuse on the IM-LP is not | |
| power supply according to NEC Class 2 required | No | |
| Load voltage 2L+ | ||
| Rated value (DC) | 24 V | |
| Reverse polarity protection | Yes; against destruction | |
| Input current | ||
| from supply voltage 1L+, max. | 400 mA; Dependent on terminal module, typ. maximum value for FO connection method, full load on RWB and 20.4 V input voltage | |
| Power loss | ||
| Power loss, typ. | 6 W; dependent on terminal module, typ. maximum value for CU connection method, full load on RWB, for FO the value is approx. 0.7 W higher | |
| Address area | ||
| Addressing volume | ||
| Inputs | 256 byte | |
| Outputs | 256 byte | |
| Interfaces | ||
| Interfaces/bus type | PROFINET IO | |
| Interface types | ||
| M12 port | ||
| Autonegotiation | Yes | |
| Transmission rate, max. | 100 Mbit/s | |
| Protocols | ||
| Supports protocol for PROFINET IO | Yes | |
| PROFIsafe | Yes | |
| PROFIBUS | No | |
| EtherNet/IP | No | |
| Protocols (Ethernet) | ||
| SNMP | Yes | |
| ping | Yes | |
| ARP | Yes | |
| Redundancy mode | ||
| Media redundancy | ||
| MRP | Yes | |
| Interrupts/diagnostics/status information | ||
| Alarms | ||
| Diagnostic alarm | Yes; Parameterizable | |
| Hardware interrupt | Yes; Parameterizable | |
| Diagnostics indication LED | ||
| MAINT LED | Yes | |
| LINK LED | Yes | |
| RX/TX LED | Yes | |
| For load voltage monitoring | Yes | |
| Bus fault BF (red) | Yes | |
| Group error SF (red) | Yes | |
| Monitoring 24 V voltage supply ON (green) | Yes | |
| Parameter | ||
| Swapping interrupt | Parameterizable | |
| Startup if setpoint not equal to actual configuration | Parameterizable | |
| Hot swapping of modules | possible | |
| Potential separation | ||
| between backplane bus and electronics | No | |
| between supply voltage and electronics | Yes | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Degree and class of protection | ||
| IP degree of protection | IP65/67 | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| min. | -25 °C | |
| max. | 55 °C | |
| Ambient temperature during storage/transportation | ||
| min. | -40 °C | |
| max. | 70 °C | |
| Dimensions | ||
| Width | 135 mm | |
| Height | 130 mm | |
| Depth | 60 mm | |
| Weights | ||
| Weight, approx. | 490 g | |
| Approvals / Certificates | ||
