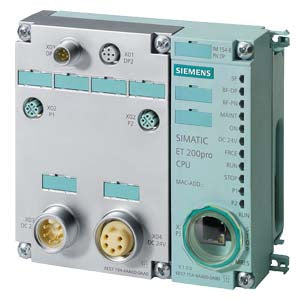

SIMATIC DP IM 154-8 PN/DP CPU

General information
HW functional status 01
Firmware version V3.2
Product function
Isochronous mode Yes; Via PROFIBUS DP or PROFINET interface
Engineering with
Programming package STEP 7 V5.5 or higher
Supply voltage
Rated value (DC) 24 V
external protection for power supply lines (recommendation) MCB 24 V DC / 16 A with tripping characteristic Type B and C (see ET 200pro manual)
Load voltage L+
Rated value (DC) 24 V
permissible range, lower limit (DC) 20.4 V
permissible range, upper limit (DC) 28.8 V
Reverse polarity protection Yes
Input current
Current consumption, typ. 350 mA
Current consumption (in no-load operation), typ. 250 mA; Typical, current consumption for CPU in STOP state
Inrush current, typ. 2 A
I²t 0.25 A²·s; Typical
Power loss
Power loss, typ. 8.5 W
Memory
Work memory
integrated 384 kbyte
expandable No
Load memory
Plug-in (MMC) Yes
Plug-in (MMC), max. 8 Mbyte
Data management on MMC (after last programming), min. 10 a
Backup
present Yes; Guaranteed by MMC (maintenance-free)
without battery Yes; Program and data
CPU processing times
for bit operations, typ. 0.05 µs
for word operations, typ. 0.09 µs
for fixed point arithmetic, typ. 0.12 µs
for floating point arithmetic, typ. 0.45 µs
CPU-blocks
Number of blocks (total) 1 024; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used.
DB
Number, max. 1 024; Number range: 1 to 16000
Size, max. 64 kbyte
FB
Number, max. 1 024; Number range: 0 to 7999
Size, max. 64 kbyte
FC
Number, max. 1 024; Number range: 0 to 7999
Size, max. 64 kbyte
OB
Size, max. 64 kbyte
Number of free cycle OBs 1; OB 1
Number of time alarm OBs 1; OB 10
Number of delay alarm OBs 2; OB 20, 21
Number of cyclic interrupt OBs 4; OB 32, 33, 34, 35
Number of process alarm OBs 1; OB 40
Number of DPV1 alarm OBs 3; OB 55, 56, 57
Number of isochronous mode OBs 1; OB 61
Number of startup OBs 1; OB 100
Number of asynchronous error OBs 6; OB 80, 82, 83, 85, 86, 87 (OB83 only for centralized I/O and PROFINET IO)
Number of synchronous error OBs 2; OB 121, 122
Nesting depth
per priority class 16
additional within an error OB 4
Counters, timers and their retentivity
S7 counter
Number 256
Retentivity
adjustable Yes
preset Z 0 to Z 7
Counting range
adjustable Yes
lower limit 0
upper limit 999
IEC counter
present Yes
Type SFB
Number Unlimited (limited only by RAM capacity)
S7 times
Number 256
Retentivity
adjustable Yes
preset No retentivity
Time range
lower limit 10 ms
upper limit 9 990 s
IEC timer
present Yes
Type SFB
Number Unlimited (limited only by RAM capacity)
Data areas and their retentivity
Retentive data area (incl. timers, counters, flags), max. 128 kbyte
Flag
Size, max. 2 048 byte
Retentivity available Yes; MB 0 to MB 2 047
Retentivity preset MB 0 to MB 15
Number of clock memories 8
Data blocks
Retentivity adjustable Yes; via non-retain property on DB
Retentivity preset Yes
Local data
per priority class, max. 32 768 byte; Max. 2048 bytes per block
Address area
I/O address area
Inputs 2 048 byte
Outputs 2 048 byte
of which distributed
Inputs 2 048 byte
Outputs 2 048 byte
Process image
Inputs, adjustable 2 048 byte
Outputs, adjustable 2 048 byte
Inputs, default 128 byte
Outputs, default 128 byte
Subprocess images
Number of subprocess images, max. 1; With PROFINET IO, the length of the user data is limited to 1600 bytes
Digital channels
Inputs 16 384
of which central 128
Outputs 16 384
of which central 64
Analog channels
Inputs 1 024
of which central 64
Outputs 1 024
