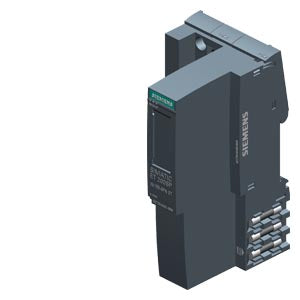

Siemens - 6ES7155-6AU01-0BN0
Siemens - 6ES7155-6AU01-0BN0
Regular price
€156,31 EUR
Regular price
Sale price
€156,31 EUR
Couldn't load pickup availability
17 in stock
SIMATIC ET 200SP IM 155-6 PN ST
| General information | ||
| Product type designation | IM 155-6 PN ST | |
| HW functional status | From FS03 | |
| Firmware version | V4.2 | |
| FW update possible | Yes | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Module swapping during operation (hot swapping) | Yes; Single hot swapping | |
| Isochronous mode | No | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V14 | |
| STEP 7 configurable/integrated from version | V5.5 SP4 | |
| PROFINET from GSD version/GSD revision | GSDML V2.35 | |
| Configuration control | ||
| via dataset | Yes | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Short-circuit protection | Yes | |
| Mains buffering | ||
| Mains/voltage failure stored energy time | 10 ms | |
| Input current | ||
| Current consumption (rated value) | 450 mA | |
| Current consumption, max. | 550 mA | |
| Inrush current, max. | 3.7 A | |
| I²t | 0.09 A²·s | |
| Power loss | ||
| Power loss, typ. | 1.9 W | |
| Address area | ||
| Address space per module | ||
| Address space per module, max. | 256 byte; For input and output data respectively | |
| Address space per station | ||
| Address space per station, max. | 512 byte | |
| Hardware configuration | ||
| Rack | ||
| Quantity of operable ET 200SP modules, max. | 32 | |
| Quantity of operable ET 200AL modules, max. | 16 | |
| Submodules | ||
| Number of submodules per station, max. | 256 | |
| Interfaces | ||
| Number of PROFINET interfaces | 1; 2 ports (switch) | |
| 1. Interface | ||
| Interface types | ||
| RJ 45 (Ethernet) | Yes; with BusAdapter | |
| Number of ports | 2; with BusAdapter | |
| integrated switch | Yes | |
| BusAdapter (PROFINET) | Yes; BA 2x RJ45, BA 2x FC, BA 2x M12 | |
| Protocols | ||
| PROFINET IO Device | Yes | |
| Open IE communication | Yes | |
| Media redundancy | Yes; PROFINET MRP client | |
| PROFINET IO Device | ||
| Services | ||
| IRT | Yes; 250 µs to 4 ms in 125 µs frame | |
| PROFIenergy | Yes | |
| Prioritized startup | Yes | |
| Shared device | Yes | |
| Number of IO Controllers with shared device, max. | 2 | |
| Interface types | ||
| RJ 45 (Ethernet) | ||
| Transmission procedure | PROFINET with 100 Mbit/s full duplex (100BASE-TX) | |
| 100 Mbps | Yes | |
| Autonegotiation | Yes | |
| Autocrossing | Yes | |
| Protocols | ||
| Supports protocol for PROFINET IO | Yes | |
| PROFIsafe | Yes | |
| PROFIBUS | No | |
| EtherNet/IP | No | |
| Modbus TCP | No | |
| Redundancy mode | ||
| PROFINET system redundancy (S2) | No | |
| Media redundancy | ||
| MRP | Yes | |
| MRPD | No | |
| Open IE communication | ||
| TCP/IP | Yes | |
| SNMP | Yes | |
| LLDP | Yes | |
| Interrupts/diagnostics/status information | ||
| Status indicator | Yes | |
| Alarms | Yes | |
| Diagnostics function | Yes | |
| Diagnostics indication LED | ||
| RUN LED | Yes; green LED | |
| ERROR LED | Yes; red LED | |
| MAINT LED | Yes; Yellow LED | |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED | |
| Connection display LINK TX/RX | Yes; 2x green link LEDs on BusAdapter | |
| Potential separation | ||
| between backplane bus and electronics | No | |
| between PROFINET and all other circuits | Yes; 1500 V AC (type test) | |
| between supply and all other circuits | No | |
| Permissible potential difference | ||
| between different circuits | Safety extra low voltage SELV | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Standards, approvals, certificates | ||
| Network loading class | 2 | |
| Ecological footprint | ||
| environmental product declaration | Yes | |
| Global warming potential | ||
| global warming potential, (total) [CO2 eq] | 105 kg | |
| global warming potential, (during production) [CO2 eq] | 13.7 kg | |
| global warming potential, (during operation) [CO2 eq] | 91.9 kg | |
| global warming potential, (after end of life cycle) [CO2 eq] | -0.617 kg | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| horizontal installation, min. | -30 °C; No condensation | |
| horizontal installation, max. | 60 °C | |
| vertical installation, min. | -30 °C; No condensation | |
| vertical installation, max. | 50 °C | |
| Altitude during operation relating to sea level | ||
| Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual | |
| connection method | ||
| ET-Connection | ||
| via BU/BA Send | Yes; + 16 ET 200AL modules | |
| Dimensions | ||
| Width | 50 mm | |
| Height | 117 mm | |
| Depth | 74 mm | |
| Weights | ||
| Weight, approx. | 147 g; without BusAdapter | |
| Approva | ||
