Siemens - 6ES7155-6AU30-0CN0
Siemens - 6ES7155-6AU30-0CN0
Regular price
€208,08 EUR
Regular price
Sale price
€208,08 EUR
Couldn't load pickup availability
Low stock: 1 left

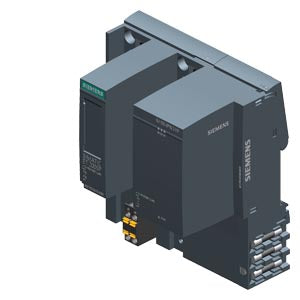

SIMATIC ET 200SP IM 155-6 PN/3 HF
| General information | ||
| Product type designation | IM 155-6 PN/3 HF | |
| HW functional status | From FS02 | |
| Firmware version | V4.2 | |
| FW update possible | Yes | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Module swapping during operation (hot swapping) | Yes; Multi-hot swapping | |
| Isochronous mode | Yes | |
| Tool changer | Yes; Docking station and docking unit | |
| Local coupling, IO data | Yes | |
| Number of coupling modules | 16 | |
| Number of coupling submodules per module | 4 | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V15.1 | |
| STEP 7 configurable/integrated from version | use GSD file | |
| PROFINET from GSD version/GSD revision | GSDML V2.34 | |
| Configuration control | ||
| via dataset | Yes | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Short-circuit protection | Yes | |
| Mains buffering | ||
| Mains/voltage failure stored energy time | 10 ms | |
| Input current | ||
| Current consumption (rated value) | 175 mA; At 24 V, 2 slots 2x RJ45 BusAdapter, no I/O modules | |
| Current consumption, max. | 950 mA | |
| Inrush current, max. | 9 A | |
| I²t | 0.34 A²·s | |
| Power loss | ||
| Power loss, typ. | 4.9 W | |
| Address area | ||
| Address space per module | ||
| Address space per module, max. | 288 byte; For input and output data respectively | |
| Address space per station | ||
| Address space per station, max. | 1 440 byte | |
| Hardware configuration | ||
| Rack | ||
| Quantity of operable ET 200SP modules, max. | 64 | |
| Quantity of operable ET 200AL modules, max. | 16 | |
| Submodules | ||
| Number of submodules per station, max. | 256 | |
| Interfaces | ||
| Number of PROFINET interfaces | 1; 3 ports (switch) | |
| 1. Interface | ||
| Interface types | ||
| RJ 45 (Ethernet) | Yes; with BusAdapter | |
| Number of ports | 3; with 2 compatible BusAdapters: | |
| integrated switch | Yes | |
| BusAdapter (PROFINET) | Yes; BA 2x RJ45, BA 2x FC, BA 2x SCRJ, BA SCRJ/RJ45, BA SCRJ/FC, BA 2x LC, BA LC/RJ45, BA LC/FC | |
| Protocols | ||
| PROFINET IO Device | Yes | |
| Open IE communication | Yes | |
| Media redundancy | Yes; PROFINET MRP client | |
| PROFINET IO Device | ||
| Services | ||
| IRT | Yes; 250 µs to 4 ms in 125 µs frame | |
| PROFIenergy | Yes | |
| Prioritized startup | Yes | |
| Shared device | Yes | |
| Number of IO Controllers with shared device, max. | 4 | |
| Interface types | ||
| RJ 45 (Ethernet) | ||
| Transmission procedure | PROFINET with 100 Mbit/s full duplex (100BASE-TX) | |
| 100 Mbps | Yes | |
| Autonegotiation | Yes | |
| Autocrossing | Yes | |
| Protocols | ||
| Supports protocol for PROFINET IO | Yes | |
| PROFIsafe | Yes | |
| PROFIBUS | No | |
| EtherNet/IP | No | |
| Modbus TCP | No | |
| Number of connections | ||
| Number of MtM communication relationships/connections, max. | 16 | |
| Redundancy mode | ||
| PROFINET system redundancy (S2) | Yes; NAP S2 | |
| H-Sync forwarding | Yes | |
| Media redundancy | ||
| MRP | Yes | |
| MRPD | No | |
| Open IE communication | ||
| TCP/IP | Yes | |
| SNMP | Yes | |
| LLDP | Yes | |
| Isochronous mode | ||
| Equidistance | Yes | |
| shortest clock pulse | 250 µs | |
| max. cycle | 4 ms | |
| Bus cycle time (TDP), min. | 250 µs | |
| Jitter, max. | 1 µs | |
| Interrupts/diagnostics/status information | ||
| Status indicator | Yes | |
| Alarms | Yes | |
| Diagnostics function | Yes | |
| Diagnostics indication LED | ||
| RUN LED | Yes; green LED | |
| ERROR LED | Yes; red LED | |
| MAINT LED | Yes; Yellow LED | |
| Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED | |
| Connection display LINK TX/RX | Yes; 2x green link LEDs on BusAdapter | |
| Potential separation | ||
| between backplane bus and electronics | No | |
| between PROFINET and all other circuits | Yes; 1500 V AC (type test) | |
| between supply and all other circuits | No | |
| Permissible potential difference | ||
| between different circuits | Safety extra low voltage SELV | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Standards, approvals, certificates | ||
| Network loading class | 3 | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| horizontal installation, min. | -30 °C; No condensation | |
| horizontal installation, max. | 60 °C | |
| vertical installation, min. | -30 °C; No condensation | |
| vertical installation, max. | 50 °C | |
| Altitude during operation relating to sea level | ||
| Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual | |
| connection method | ||
| ET-Connection | ||
| via BU/BA Send | ||
