Siemens - 6ES7155-6MU00-0CN0
Siemens - 6ES7155-6MU00-0CN0
Regular price
€230,57 EUR
Regular price
Sale price
€230,57 EUR
Couldn't load pickup availability
Low stock: 1 left

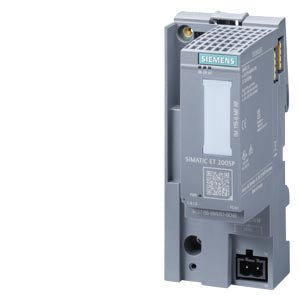

SIMATIC ET 200SP IM 155-6 MF HF
| General information | ||
| Product type designation | IM 155-6 MF HF | |
| Firmware version | V5.2 | |
| FW update possible | Yes | |
| Vendor identification (VendorID) | 002AH | |
| Device identifier (DeviceID) | 0313H | |
| Manufacturer ID according to ODVA (VendorID) | 04E3H | |
| Device ID according to ODVA (Product code) | 0FA2H | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Module swapping during operation (hot swapping) | Yes; Multi-hot swapping | |
| Isochronous mode | No | |
| Tool changer | Yes; Docking station and docking unit | |
| Local coupling, IO data | Yes | |
| Number of coupling modules | 6; 1x output + max. 5x input | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | via IM155-6PN/2 HF in compatibility mode | |
| STEP 7 configurable/integrated from version | via IM155-6PN/2 HF in compatibility mode | |
| PROFINET from GSD version/GSD revision | GSDML V2.3 | |
| Multi Fieldbus Configuration Tool (MFCT) | from V1.3 | |
| Configuration control | ||
| via dataset | Yes | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Short-circuit protection | Yes | |
| Mains buffering | ||
| Mains/voltage failure stored energy time | 10 ms; according to IEC 61131-2 (6.2.1.3) severity degree PS2 | |
| Input current | ||
| Current consumption, max. | 700 mA | |
| Inrush current, max. | 4.5 A | |
| I²t | 0.25 A²·s | |
| Power loss | ||
| Power loss, typ. | 2.4 W | |
| Address area | ||
| Address space per module | ||
| Address space per module, max. | 288 byte; For input and output data respectively | |
| Address space per station | ||
| Address space per station, max. | 1 440 byte | |
| Hardware configuration | ||
| Rack | ||
| Quantity of operable ET 200SP modules, max. | 64 | |
| Quantity of operable ET 200AL modules, max. | 16 | |
| Submodules | ||
| Number of submodules per station, max. | 256 | |
| Interfaces | ||
| Number of PROFINET interfaces | 1; 2 ports (switch) | |
| 1. Interface | ||
| Interface types | ||
| RJ 45 (Ethernet) | Yes; with BusAdapter | |
| Number of ports | 2; with BusAdapter | |
| integrated switch | Yes | |
| BusAdapter (PROFINET) | Yes | |
| Protocols | ||
| PROFINET IO Device | Yes | |
| Open IE communication | Yes | |
| Media redundancy | Yes; PROFINET MRP client | |
| PROFINET IO Device | ||
| Services | ||
| IRT | No | |
| PROFIenergy | Yes | |
| Prioritized startup | No | |
| Shared device | Yes | |
| Number of IO Controllers with shared device, max. | 14; 2x PN controller + 2x EtherNet/IP scanner + 10x Modbus TCP master | |
| Interface types | ||
| RJ 45 (Ethernet) | ||
| Transmission procedure | PROFINET with 100 Mbit/s full duplex (100BASE-TX) | |
| 100 Mbps | Yes | |
| Autonegotiation | Yes | |
| Autocrossing | Yes | |
| Protocols | ||
| Supports protocol for PROFINET IO | Yes | |
| PROFIsafe | Yes | |
| PROFIBUS | No | |
| EtherNet/IP | Yes | |
| Modbus TCP | Yes | |
| Number of connections | ||
| Number of MtM communication relationships/connections, max. | 16 | |
| Redundancy mode | ||
| PROFINET system redundancy (S2) | Yes; NAP S2 | |
| H-Sync forwarding | Yes | |
| Media redundancy | ||
| MRP | Yes | |
| MRPD | No | |
| EtherNet/IP | ||
| Services | ||
| CIP Implicit Messaging | Yes | |
| CIP Explicit Messaging | Yes | |
| CIP Safety | No | |
| Configuration control via Explicit Messaging | No | |
| Shared device | Yes; 2x PN controller + 2x EtherNet/IP scanner + 10x Modbus TCP master | |
| Number of scanners with shared device, max. | 2 | |
| Updating times | ||
| Requested Packet Interval (RPI) | 2 ms | |
| Address area | ||
| Address space per module, max. | 288 byte; (246 byte outputs / 288 byte inputs) | |
| ForwardOpen (Class1 & 32 bit Header) | 500 byte; (246 byte outputs / 500 byte inputs) | |
| LargeForwardOpen (Class3) | 4 002 byte | |
| Connections | ||
| Number of rack connections | 2 | |
| Modbus TCP | ||
| Services | ||
| read coils (code=1) | Yes | |
| read discrete inputs (code=2) | Yes | |
| Read Holding Registers (Code=3) | Yes | |
| write single coil (code=5) | Yes | |
| write multiple coils (code=15) | Yes | |
| Write Multiple Registers (Code=16) | Yes | |
| Parameter change by master | Yes | |
| Modbus TCP Security Protocol | No | |
| Address space per station | ||
| Address space per station, max. | 500 byte; (246 byte outputs / 500 byte inputs) | |
| Access-consistent address space | 250 byte; (246 byte outputs / 250 byte inputs) | |
| Updating time | ||
| I/O request interval | 2 ms | |
| Connections | ||
| number of connections per device | 9; (1x inputs / 2x outputs / 4x volatile registers / 2x Device Info) | |
| Open IE communication | ||
| TCP/IP | Yes | |
| UDP | Yes | |
| SNMP | Yes | |
