Siemens - 6ES7158-3AD01-0XA0
Siemens - 6ES7158-3AD01-0XA0
Regular price
€811,20 EUR
Regular price
Sale price
€811,20 EUR
Couldn't load pickup availability
Low stock: 3 left

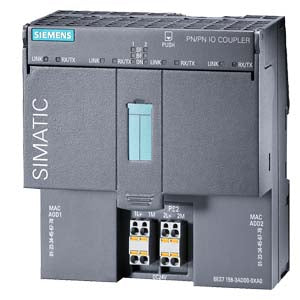

SIMATIC DP PN/PN Coupler
| General information | ||
| Product type designation | PN/PN coupler | |
| Firmware version | ||
| FW update possible | Yes | |
| Product function | ||
| Isochronous mode | No; For operation on isochronous bus | |
| Installation type/mounting | ||
| Mounting | Mounting rail 7.5 mm and 15 mm | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 20.4 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Mains buffering | ||
| Mains/voltage failure stored energy time | 20 ms | |
| Input current | ||
| from supply voltage 1L+, max. | 400 mA | |
| Power loss | ||
| Power loss, typ. | 6 W | |
| Interfaces | ||
| Transmission rate, max. | 100 Mbit/s | |
| 1. Interface | ||
| Interface types | ||
| RJ 45 (Ethernet) | Yes | |
| Number of ports | 2 | |
| integrated switch | Yes | |
| Protocols | ||
| Media redundancy | Yes; as MRP client | |
| 2. Interface | ||
| Interface types | ||
| RJ 45 (Ethernet) | Yes | |
| Number of ports | 2 | |
| integrated switch | Yes | |
| Protocols | ||
| Media redundancy | Yes; as MRP client | |
| Interface types | ||
| RJ 45 (Ethernet) | ||
| 100 Mbps | Yes | |
| Autonegotiation | Yes | |
| Autocrossing | Yes | |
| Protocols | ||
| Supports protocol for PROFINET IO | Yes | |
| Protocols (Ethernet) | ||
| SNMP | Yes | |
| ping | Yes | |
| ARP | Yes | |
| Redundancy mode | ||
| Media redundancy | ||
| MRP | Yes | |
| Interrupts/diagnostics/status information | ||
| Status indicator | Yes | |
| Alarms | Yes | |
| Diagnostics function | Yes | |
| Diagnostics indication LED | ||
| LINK LED | Yes; for each port | |
| Bus fault BF (red) | Yes; for each side | |
| Group error SF (red) | Yes; for each side | |
| Monitoring 24 V voltage supply ON (green) | Yes; for each side | |
| Potential separation | ||
| between supply voltage and electronics | Yes; to power input 2 | |
| between Ethernet and electronics | Yes | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| min. | 0 °C | |
| max. | 60 °C | |
| Dimensions | ||
| Width | 120 mm; Minimized with good handling | |
| Height | 119.5 mm | |
| Depth | 75 mm; with mounting rail | |
| Weights | ||
| Weight, approx. | 283 g | |
| Approvals / Certificates | ||
