Siemens - 6ES7193-6AS00-0AA0
Siemens - 6ES7193-6AS00-0AA0
Regular price
€63,06 EUR
Regular price
Sale price
€63,06 EUR
Couldn't load pickup availability
21 in stock

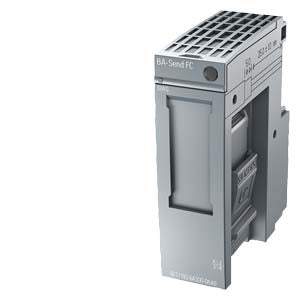

SIMATIC ET 200SP BA-Send BA 1x FC
| General information | ||
| Product type designation | BA-Send 1xFC | |
| HW functional status | From FS05 | |
| Interfaces | ||
| Supports protocol for PROFINET IO | ||
| Cable length | ||
| Cu conductors | 15 m; from IM firmware V3.3: between BA-send and the first ET-CONNECTION bus node and between all other bus nodes | |
| ET-Connection | ||
| Number of interfaces ET connection | 1 | |
| FC (FastConnect) | Yes | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| horizontal installation, min. | -30 °C | |
| horizontal installation, max. | 60 °C | |
| vertical installation, min. | -30 °C | |
| vertical installation, max. | 50 °C | |
| Altitude during operation relating to sea level | ||
| Installation altitude above sea level, max. | 5 000 m; restrictions for installation altitudes > 2 000 m, see ET 200SP system manual | |
| Dimensions | ||
| Width | 20 mm | |
| Height | 69.5 mm | |
| Depth | 59 mm | |
| Weights | ||
| Weight, approx. | 44 g | |
| Approvals / Certificates | ||
