Siemens - 6ES7193-6BP00-0BA0
Siemens - 6ES7193-6BP00-0BA0
Regular price
€10,56 EUR
Regular price
Sale price
€10,56 EUR
Couldn't load pickup availability
632 in stock

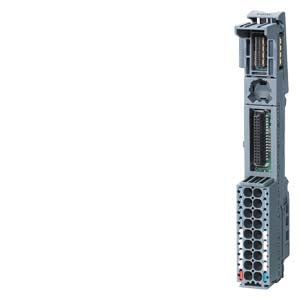

SIMATIC ET 200SP BU15-P16+A0+2B
| General information | ||
| Product type designation | BU type A0 | |
| HW functional status | From FS06 | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| external protection for power supply lines | Yes; 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic | |
| Mains filter | ||
| integrated | No | |
| Current carrying capacity | ||
| For P1 and P2 bus, max. | 10 A | |
| For process terminals, max. | 2 A | |
| Hardware configuration | ||
| Automatic encoding | Yes | |
| Formation of potential groups | ||
| New potential group | No | |
| Potential group continued from the left | Yes | |
| Slots | ||
| Number of slots | 1; Type A0 | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Standards, approvals, certificates | ||
| Ecological footprint | ||
| environmental product declaration | Yes | |
| Global warming potential | ||
| global warming potential, (total) [CO2 eq] | 0.873 kg | |
| global warming potential, (during production) [CO2 eq] | 0.866 kg | |
| global warming potential, (during operation) [CO2 eq] | 0 kg | |
| global warming potential, (after end of life cycle) [CO2 eq] | -0.0011 kg | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| horizontal installation, min. | -30 °C | |
| horizontal installation, max. | 60 °C | |
| vertical installation, min. | -30 °C | |
| vertical installation, max. | 50 °C | |
| Altitude during operation relating to sea level | ||
| Installation altitude above sea level, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual | |
| Accessories | ||
| Color coding labels | ||
| for process terminals | CC00 to CC09 | |
| for AUX terminals | does not exist | |
| for add-on terminals | does not exist | |
| connection method | ||
| Terminals | ||
| Terminal type | Push-in terminal | |
| system-integrated shield connection | Yes; Optional | |
| Conductor cross-section, min. | 0.14 mm²; AWG 26 | |
| Conductor cross-section, max. | 2.5 mm²; AWG 14 | |
| Number of process terminals to I/O module | 16; Pro slot | |
| Number of terminals to AUX bus | 0 | |
| Number of add-on terminals | 0 | |
| Number of terminals with connection to P1 and P2 bus | 2; Pro slot | |
| Dimensions | ||
| Width | 15 mm | |
| Height | 117 mm | |
| Depth | 35 mm | |
| Weights | ||
| Weight, approx. | 40 g | |
| Approvals / Certificates | ||
