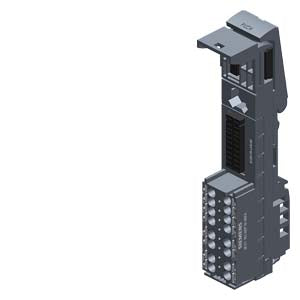

Siemens - 6ES7193-6BP20-0BF0
Siemens - 6ES7193-6BP20-0BF0
Regular price
€13,18 EUR
Regular price
Sale price
€13,18 EUR
Couldn't load pickup availability
Low stock: 2 left
SIMATIC ET 200SP BU20-P8+A4+0B
| General information | ||
| Product type designation | BU type F0 | |
| HW functional status | FS10 and higher | |
| Supply voltage | ||
| Rated value (DC) | See manual | |
| Rated value (AC) | See manual | |
| Mains filter | ||
| integrated | No | |
| Current carrying capacity | ||
| up to 60 °C, max. | 10 A | |
| For P1 and P2 bus, max. | 10 A | |
| For AUX bus, max. | 10 A | |
| For process terminals, max. | 5 A | |
| Hardware configuration | ||
| Automatic encoding | Yes | |
| Slots | ||
| Number of slots | 1; Type F0 | |
| Potential separation | ||
| between backplane bus and supply voltage | Yes | |
| between process terminals and supply voltage | Yes | |
| between power bus and supply voltage | Yes | |
| Isolation | ||
| Isolation tested with | 3 100 V DC | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| horizontal installation, min. | -30 °C | |
| horizontal installation, max. | 60 °C | |
| vertical installation, min. | -30 °C | |
| vertical installation, max. | 50 °C | |
| Altitude during operation relating to sea level | ||
| Installation altitude above sea level, max. | 2 000 m; On request: Installation altitudes greater than 2 000 m | |
| connection method | ||
| Terminals | ||
| system-integrated shield connection | Yes; Optional | |
| Dimensions | ||
| Width | 20 mm | |
| Height | 117 mm | |
| Depth | 35 mm | |
| Weights | ||
| Weight, approx. | 48 g | |
| Approvals / Certificates | ||
