Siemens - 6ES7222-1HF32-0XB0
Siemens - 6ES7222-1HF32-0XB0
Regular price
€74,87 EUR
Regular price
Sale price
€74,87 EUR
Couldn't load pickup availability
Low stock: 7 left

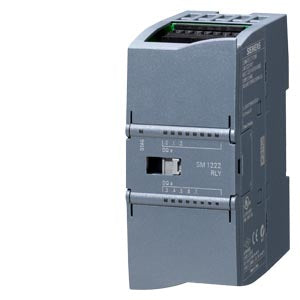

SIMATIC S7-1200 SM 1222 8 DO Relay 2A
| General information | ||
| Product type designation | SM 1222, DQ 8x relay/2 A | |
| Supply voltage | ||
| permissible range, lower limit (DC) | 20.4 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Input current | ||
| from backplane bus 5 V DC, max. | 120 mA | |
| Digital outputs | ||
| from load voltage L+, max. | 11 mA/relay coil | |
| Power loss | ||
| Power loss, typ. | 4.5 W | |
| Digital outputs | ||
| Number of digital outputs | 8 | |
| in groups of | 2 | |
| Short-circuit protection | No; to be provided externally | |
| Switching capacity of the outputs | ||
| with resistive load, max. | 2 A | |
| on lamp load, max. | 30 W with DC, 200 W with AC | |
| Output voltage | ||
| Rated value (DC) | 5 V DC to 30 V DC | |
| Rated value (AC) | 5 V AC to 250 V AC | |
| Output current | ||
| for signal "1" rated value | 2 A | |
| Output delay with resistive load | ||
| "0" to "1", max. | 10 ms | |
| "1" to "0", max. | 10 ms | |
| Total current of the outputs (per group) | ||
| horizontal installation | ||
| up to 50 °C, max. | 10 A; Current per mass | |
| Relay outputs | ||
| Number of relay outputs | 8 | |
| Rated supply voltage of relay coil L+ (DC) | 24 V | |
| Number of operating cycles, max. | mechanically 10 million, at rated load voltage 100 000 | |
| Switching capacity of contacts | ||
| with inductive load, max. | 2 A | |
| on lamp load, max. | 30 W with DC, 200 W with AC | |
| with resistive load, max. | 2 A | |
| Cable length | ||
| shielded, max. | 500 m | |
| unshielded, max. | 150 m | |
| Interrupts/diagnostics/status information | ||
| Alarms | ||
| Diagnostic alarm | Yes | |
| Diagnostics indication LED | ||
| for status of the outputs | Yes | |
| Potential separation | ||
| Potential separation digital outputs | ||
| between the channels | Relays | |
| between the channels, in groups of | 2 | |
| between the channels and backplane bus | 1 500 V AC for 1 minute | |
| Permissible potential difference | ||
| between different circuits | 750 V AC for 1 minute | |
| Degree and class of protection | ||
| IP degree of protection | IP20 | |
| Standards, approvals, certificates | ||
| CE mark | Yes | |
| CSA approval | Yes | |
| UL approval | Yes | |
| cULus | Yes | |
| FM approval | Yes | |
| RCM (formerly C-TICK) | Yes | |
| KC approval | Yes | |
| Marine approval | Yes | |
| Ecological footprint | ||
| environmental product declaration | Yes | |
| Global warming potential | ||
| global warming potential, (total) [CO2 eq] | 68.6 kg | |
| global warming potential, (during production) [CO2 eq] | 8.16 kg | |
| global warming potential, (during operation) [CO2 eq] | 60.7 kg | |
| global warming potential, (after end of life cycle) [CO2 eq] | -0.334 kg | |
| Ambient conditions | ||
| Free fall | ||
| Fall height, max. | 0.3 m; five times, in product package | |
| Ambient temperature during operation | ||
| min. | -20 °C | |
| max. | 60 °C | |
| horizontal installation, min. | -20 °C | |
| horizontal installation, max. | 60 °C | |
| vertical installation, min. | -20 °C | |
| vertical installation, max. | 50 °C | |
| permissible temperature change | 5°C to 55°C, 3°C / minute | |
| Ambient temperature during storage/transportation | ||
| min. | -40 °C | |
| max. | 70 °C | |
| Air pressure acc. to IEC 60068-2-13 | ||
| Storage/transport, min. | 660 hPa | |
| Storage/transport, max. | 1 080 hPa | |
| Relative humidity | ||
| Operation at 25 without condensation, max. | 95 % | |
| connection method | ||
| required front connector | Yes | |
| Mechanics/material | ||
| Enclosure material (front) | ||
| Plastic | Yes | |
| Dimensions | ||
| Width | 45 mm | |
| Height | 100 mm | |
| Depth | 75 mm | |
| Weights | ||
| Weight, approx. | 190 g | |
| Approvals / Certificates | ||
