Siemens - 6ES7223-1BL30-0XB0
Siemens - 6ES7223-1BL30-0XB0
Regular price
€344,96 EUR
Regular price
Sale price
€344,96 EUR
Couldn't load pickup availability
Low stock: 1 left

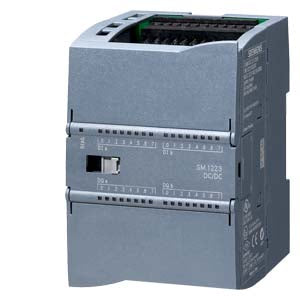

SIMATIC S7-1200 SM 1223 16 DI DC 24V Sink/Source 16 DO Transistor 0.5A
| General information | ||
| Product type designation | SM 1223, DI 16x24 V DC, DQ 16x24 V DC | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 20.4 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Input current | ||
| from backplane bus 5 V DC, max. | 185 mA | |
| Digital inputs | ||
| from load voltage L+ (without load), max. | 4 mA; per channel | |
| output voltage / header | ||
| supply voltage of the transmitters / header | ||
| present | Yes | |
| Power loss | ||
| Power loss, typ. | 4.5 W | |
| Digital inputs | ||
| Number of digital inputs | 16 | |
| in groups of | 2 | |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes | |
| Number of simultaneously controllable inputs | ||
| all mounting positions | ||
| up to 40 °C, max. | 16 | |
| horizontal installation | ||
| up to 40 °C, max. | 16 | |
| up to 50 °C, max. | 16 | |
| vertical installation | ||
| up to 40 °C, max. | 16 | |
| Input voltage | ||
| Type of input voltage | DC | |
| Rated value (DC) | 24 V | |
| for signal "0" | 5 V DC at 1 mA | |
| for signal "1" | 15 V DC at 2.5 mA | |
| Input current | ||
| for signal "0", max. (permissible quiescent current) | 1 mA | |
| for signal "1", min. | 2.5 mA | |
| for signal "1", typ. | 4 mA | |
| Input delay (for rated value of input voltage) | ||
| for standard inputs | ||
| parameterizable | Yes; 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms and 12.8 ms, selectable in groups of four | |
| for interrupt inputs | ||
| parameterizable | Yes | |
| Cable length | ||
| shielded, max. | 500 m | |
| unshielded, max. | 300 m | |
| Digital outputs | ||
| Number of digital outputs | 16 | |
| in groups of | 1 | |
| Short-circuit protection | No; to be provided externally | |
| Limitation of inductive shutdown voltage to | L+ (-48 V) | |
| Switching capacity of the outputs | ||
| with resistive load, max. | 0.5 A | |
| on lamp load, max. | 5 W | |
| Output voltage | ||
| Rated value (DC) | 24 V | |
| for signal "0", max. | 0.1 V; with 10 kOhm load | |
| for signal "1", min. | 20 V DC | |
| Output current | ||
| for signal "1" rated value | 0.5 A | |
| for signal "1" permissible range, max. | 0.5 A | |
| for signal "0" residual current, max. | 10 µA | |
| Output delay with resistive load | ||
| "0" to "1", max. | 50 µs | |
| "1" to "0", max. | 200 µs | |
| Total current of the outputs (per group) | ||
| horizontal installation | ||
| up to 50 °C, max. | 8 A; Current per mass | |
| Relay outputs | ||
| Switching capacity of contacts | ||
| with inductive load, max. | 0.5 A | |
| on lamp load, max. | 5 W | |
| with resistive load, max. | 0.5 A | |
| Cable length | ||
| shielded, max. | 500 m | |
| unshielded, max. | 150 m | |
| Interrupts/diagnostics/status information | ||
| Alarms | Yes | |
| Diagnostics function | Yes | |
| Alarms | ||
| Diagnostic alarm | Yes | |
| Diagnostics indication LED | ||
| for status of the inputs | Yes | |
| for status of the outputs | Yes | |
| for maintenance | Yes | |
| Potential separation | ||
| Potential separation digital inputs | ||
| between the channels, in groups of | 2 | |
| Potential separation digital outputs | ||
| between the channels, in groups of | 1 | |
| between the channels and backplane bus | 500 V AC | |
| Degree and class of protection | ||
| IP degree of protection | IP20 | |
| Standards, approvals, certificates | ||
| CE mark | Yes | |
| FM approval | Yes | |
| RCM (formerly C-TICK) | Yes | |
| Ambient conditions | ||
| Free fall | ||
| Fall height, max. | 0.3 m; five times, in product package | |
| Ambient temperature during operation | ||
| min. | 0 °C | |
| max. | 55 °C | |
| horizontal installation, min. | 0 °C | |
| horizontal installation, max. | 55 °C | |
| vertical installation, min. | 0 °C | |
| vertical installation, max. | 45 °C | |
| permissible temperature change | 5°C to 55°C, 3°C / minute | |
| Ambient temperature during storage/transportation | ||
| min. | -40 °C | |
| max. | 70 °C | |
| Air pressure acc. to IEC 60068-2-13 | ||
| Storage/transport, min. | 660 hPa | |
| Storage/transport, max. | 1 080 hPa | |
| Relative humidity | ||
| Operation at 25 without condensation, max. | 95 % | |
| connection method | ||
| required front connector | Yes | |
| Mechanics/material | ||
| Enclosure material (front) | ||
| Plastic | Yes | |
| Dimensions | ||
| Width | 70 mm | |
| Height | 100 mm | |
| Depth | 75 mm | |
| Weights | ||
| Weight, approx. | 310 g | |
| Approvals / Certificates | ||
