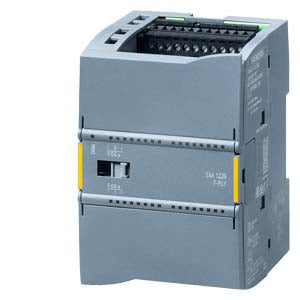

Siemens - 6ES7226-6RA32-0XB0
Siemens - 6ES7226-6RA32-0XB0
Regular price
€182,84 EUR
Regular price
Sale price
€182,84 EUR
Couldn't load pickup availability
Low stock: 10 left
SIMATIC S7-1200 SM 1226 2 F-DQ Relay 5A PROFIsafe
| General information | ||
| Product type designation | SM 1226, F-DQ 2x relay/5 A | |
| Supply voltage | ||
| permissible range, lower limit (DC) | 20.4 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| power supply according to NEC Class 2 required | No | |
| Input current | ||
| from backplane bus 5 V DC, max. | 120 mA | |
| Digital outputs | ||
| from load voltage L+, max. | 300 mA | |
| Power loss | ||
| Power loss, typ. | 10 W | |
| Digital outputs | ||
| Number of digital outputs | 2 | |
| Short-circuit protection | No | |
| Output voltage | ||
| Rated value (DC) | 5 V DC to 30 V DC | |
| Rated value (AC) | 5 V AC to 250 V AC | |
| Output current | ||
| for signal "1" permissible range, max. | 5 A maximum per circuit and 10 A maximum of all circuits per module | |
| Relay outputs | ||
| Number of relay outputs | 2; 2 circuits per output | |
| Switching capacity of contacts | ||
| with inductive load, max. | 0.1 Hz, accordance with IEC 60947-5-1, DC-13; 2 Hz, accordance with IEC 60947-5-1, AC-15 | |
| with resistive load, max. | 2 Hz | |
| Cable length | ||
| shielded, max. | 200 m | |
| unshielded, max. | 200 m | |
| Interrupts/diagnostics/status information | ||
| Diagnostics indication LED | ||
| for status of the outputs | Yes | |
| Degree and class of protection | ||
| IP degree of protection | IP20 | |
| Standards, approvals, certificates | ||
| CE mark | Yes | |
| cULus | Yes | |
| FM approval | Yes | |
| Highest safety class achievable in safety mode | ||
| Performance level according to ISO 13849-1 | Category 4, PL e | |
| SIL acc. to IEC 61508 | SIL 3 | |
| Probability of failure (for service life of 20 years and repair time of 100 hours) | ||
| Low demand mode: PFDavg in accordance with SIL3 | < 1.00E-05 | |
| High demand/continuous mode: PFH in accordance with SIL3 | < 4.00E-09 | |
| Ambient conditions | ||
| Free fall | ||
| Fall height, max. | 0.3 m; five times, in product package | |
| Ambient temperature during operation | ||
| min. | 0 °C | |
| max. | 55 °C | |
| permissible temperature change | 5°C to 55°C, 3°C / minute | |
| Ambient temperature during storage/transportation | ||
| min. | -40 °C | |
| max. | 70 °C | |
| Air pressure acc. to IEC 60068-2-13 | ||
| Storage/transport, min. | 660 hPa | |
| Storage/transport, max. | 1 080 hPa | |
| Relative humidity | ||
| Operation at 25 without condensation, max. | 95 % | |
| Mechanics/material | ||
| Enclosure material (front) | ||
| Plastic | Yes | |
| Dimensions | ||
| Width | 70 mm | |
| Height | 100 mm | |
| Depth | 75 mm | |
| Weights | ||
| Weight, approx. | 300 g | |
| Approvals / Certificates | ||
