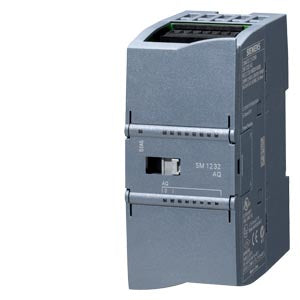

SIMATIC S7-1200 SM 1232 2 AO +/-10V 14BIT or 0-20mA/4-20mA 13BIT
| General information | ||
| Product type designation | SM 1232, AQ 2x14 bit | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| Input current | ||
| Current consumption, typ. | 45 mA | |
| from backplane bus 5 V DC, typ. | 80 mA | |
| Power loss | ||
| Power loss, typ. | 1.5 W | |
| Analog outputs | ||
| Number of analog outputs | 2; Current or voltage | |
| Output ranges, voltage | ||
| -10 V to +10 V | Yes | |
| Output ranges, current | ||
| 0 to 20 mA | Yes | |
| Load impedance (in rated range of output) | ||
| with voltage outputs, min. | 1 000 ¦ | |
| with current outputs, max. | 600 ¦ | |
| Cable length | ||
| shielded, max. | 100 m; shielded, twisted pair | |
| Analog value generation for the outputs | ||
| Integration and conversion time/resolution per channel | ||
| Resolution with overrange (bit including sign), max. | 14 bit; Voltage: 14 bit; Current : 13 bit | |
| Errors/accuracies | ||
| Temperature error (relative to output range), (+/-) | 25 °C ±0.3%, to 55 °C ±0.6% total measurement range | |
| Basic error limit (operational limit at 25 °C) | ||
| Voltage, relative to output range, (+/-) | 0.3 % | |
| Current, relative to output range, (+/-) | 0.3 % | |
| Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency | ||
| Common mode voltage, max. | 12 V | |
| Interrupts/diagnostics/status information | ||
| Alarms | Yes | |
| Diagnostics function | Yes | |
| Alarms | ||
| Diagnostic alarm | Yes | |
| Diagnoses | ||
| Monitoring the supply voltage | Yes | |
| Wire-break | Yes | |
| Short-circuit | Yes | |
| Diagnostics indication LED | ||
| for status of the outputs | Yes | |
| for maintenance | Yes | |
| Degree and class of protection | ||
| IP degree of protection | IP20 | |
| Standards, approvals, certificates | ||
| CE mark | Yes | |
| CSA approval | Yes | |
| UL approval | Yes | |
| cULus | Yes | |
| FM approval | Yes | |
| RCM (formerly C-TICK) | Yes | |
| KC approval | Yes | |
| Marine approval | Yes | |
| Ecological footprint | ||
| environmental product declaration | Yes | |
| Global warming potential | ||
| global warming potential, (total) [CO2 eq] | 36.4 kg | |
| global warming potential, (during production) [CO2 eq] | 7.46 kg | |
| global warming potential, (during operation) [CO2 eq] | 29.1 kg | |
| global warming potential, (after end of life cycle) [CO2 eq] | -0.18 kg | |
| Ambient conditions | ||
| Free fall | ||
| Fall height, max. | 0.3 m; five times, in product package | |
| Ambient temperature during operation | ||
| min. | -20 °C | |
| max. | 60 °C | |
| horizontal installation, min. | -20 °C | |
| horizontal installation, max. | 60 °C | |
| vertical installation, min. | -20 °C | |
| vertical installation, max. | 50 °C | |
| Ambient temperature during storage/transportation | ||
| min. | -40 °C | |
| max. | 70 °C | |
| Air pressure acc. to IEC 60068-2-13 | ||
| Operation, min. | 795 hPa | |
| Operation, max. | 1 080 hPa | |
| Storage/transport, min. | 660 hPa | |
| Storage/transport, max. | 1 080 hPa | |
| Relative humidity | ||
| Operation at 25 without condensation, max. | 95 % | |
| Pollutant concentrations | ||
| SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free | |
| connection method | ||
| required front connector | Yes | |
| Mechanics/material | ||
| Enclosure material (front) | ||
| Plastic | Yes | |
| Dimensions | ||
| Width | 45 mm | |
| Height | 100 mm | |
| Depth | 75 mm | |
| Weights | ||
| Weight, approx. | 180 g | |
| Approvals / Certificates | ||
