Siemens - 6ES7315-2FJ14-0AB0
Siemens - 6ES7315-2FJ14-0AB0
Regular price
€2.313,39 EUR
Regular price
Sale price
€2.313,39 EUR
Couldn't load pickup availability
Low stock: 6 left

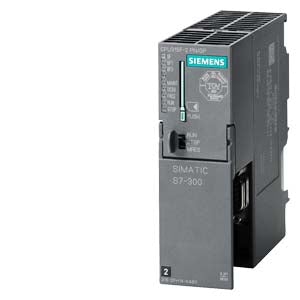

SIMATIC S7-300 CPU 315F-2 PN/DP
| General information | ||
| Product type designation | CPU 315F-2 PN/DP | |
| HW functional status | 01 | |
| Firmware version | V3.2 | |
| Product function | ||
| Isochronous mode | Yes; Via PROFIBUS DP or PROFINET interface | |
| Engineering with | ||
| Programming package | STEP 7 V5.5 or higher, Distributed Safety V5.4 SP4 | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 20.4 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| external protection for power supply lines (recommendation) | 2 A min. | |
| Mains buffering | ||
| Mains/voltage failure stored energy time | 5 ms | |
| Repeat rate, min. | 1 s | |
| Input current | ||
| Current consumption (rated value) | 750 mA | |
| Current consumption (in no-load operation), typ. | 150 mA | |
| Inrush current, typ. | 4 A | |
| I²t | 1 A²·s | |
| Power loss | ||
| Power loss, typ. | 4.65 W | |
| Memory | ||
| Work memory | ||
| integrated | 512 kbyte | |
| expandable | No | |
| Load memory | ||
| Plug-in (MMC) | Yes | |
| Plug-in (MMC), max. | 8 Mbyte | |
| Data management on MMC (after last programming), min. | 10 a | |
| Backup | ||
| present | Yes; Guaranteed by MMC (maintenance-free) | |
| without battery | Yes; Program and data | |
| CPU processing times | ||
| for bit operations, typ. | 0.05 µs | |
| for word operations, typ. | 0.09 µs | |
| for fixed point arithmetic, typ. | 0.12 µs | |
| for floating point arithmetic, typ. | 0.45 µs | |
| CPU-blocks | ||
| Number of blocks (total) | 1 024; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used. | |
| DB | ||
| Number, max. | 1 024; Number range: 1 to 16000 | |
| Size, max. | 64 kbyte | |
| FB | ||
| Number, max. | 1 024; Number range: 0 to 7999 | |
| Size, max. | 64 kbyte | |
| FC | ||
| Number, max. | 1 024; Number range: 0 to 7999 | |
| Size, max. | 64 kbyte | |
| OB | ||
| Size, max. | 64 kbyte | |
| Number of free cycle OBs | 1; OB 1 | |
| Number of time alarm OBs | 1; OB 10 | |
| Number of delay alarm OBs | 2; OB 20, 21 | |
| Number of cyclic interrupt OBs | 4; OB 32, 33, 34, 35 | |
| Number of process alarm OBs | 1; OB 40 | |
| Number of DPV1 alarm OBs | 3; OB 55, 56, 57 | |
| Number of isochronous mode OBs | 1; OB 61 | |
| Number of startup OBs | 1; OB 100 | |
| Number of asynchronous error OBs | 6; OB 80, 82, 83, 85, 86, 87 (OB83 only for PROFINET IO) | |
| Number of synchronous error OBs | 2; OB 121, 122 | |
| Nesting depth | ||
| per priority class | 16 | |
| additional within an error OB | 4 | |
| Counters, timers and their retentivity | ||
| S7 counter | ||
| Number | 256 | |
| Retentivity | ||
| adjustable | Yes | |
| preset | Z 0 to Z 7 | |
| Counting range | ||
| adjustable | Yes | |
| lower limit | 0 | |
| upper limit | 999 | |
| IEC counter | ||
| present | Yes | |
| Type | SFB | |
| Number | Unlimited (limited only by RAM capacity) | |
| S7 times | ||
| Number | 256 | |
| Retentivity | ||
| adjustable | Yes | |
| preset | No retentivity | |
| Time range | ||
| lower limit | 10 ms | |
| upper limit | 9 990 s | |
| IEC timer | ||
| present | Yes | |
| Type | SFB | |
| Number | Unlimited (limited only by RAM capacity) | |
| Data areas and their retentivity | ||
| Retentive data area (incl. timers, counters, flags), max. | 128 kbyte | |
| Flag | ||
| Size, max. | 2 048 byte | |
| Retentivity available | Yes; MB 0 to MB 2 047 | |
| Retentivity preset | MB 0 to MB 15 | |
| Number of clock memories | 8; 1 memory byte | |
| Data blocks | ||
| Retentivity adjustable | Yes; via non-retain property on DB | |
| Retentivity preset | Yes | |
| Local data | ||
| per priority class, max. | 32 768 byte; Max. 2048 bytes per block | |
| Address area | ||
| I/O address area | ||
| Inputs | 2 048 byte | |
| Outputs | 2 048 byte | |
| of which distributed | ||
| Inputs | 2 048 byte | |
| Outputs | 2 048 byte | |
| Process image | ||
| Inputs | 2 048 byte | |
| Outputs | 2 048 byte | |
| Inputs, adjustable | 2 048 byte | |
| Outputs, adjustable | 2 048 byte | |
| Inputs, default | 128 byte | |
| Outputs, default | 128 byte | |
| Subprocess images | ||
| Number of subprocess images, max. | 1; With PROFINET IO, the length of the user data is limited to 1600 bytes | |
| Digital channels | ||
| Inputs | 16 384 | |
| of which central | 1 024 | |
| Outputs | 16 384 | |
| of which central | 1 024 | |
| Analog channels | ||
| Inputs | ||
