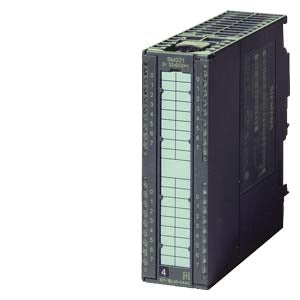

Siemens - 6ES7321-1CH20-0AA0
Siemens - 6ES7321-1CH20-0AA0
Regular price
€289,44 EUR
Regular price
Sale price
€289,44 EUR
Couldn't load pickup availability
Low stock: 2 left
SIMATIC S7-300 SM 321 16 DI DC 48-125V
| Supply voltage | ||
| Load voltage L+ | ||
| Rated value (DC) | 48 V | |
| permissible range, lower limit (DC) | 48 V | |
| permissible range, upper limit (DC) | 125 V | |
| Input current | ||
| from backplane bus 5 V DC, max. | 40 mA | |
| Power loss | ||
| Power loss, typ. | 4.3 W | |
| Digital inputs | ||
| Number of digital inputs | 16 | |
| Input characteristic curve in accordance with IEC 61131, type 1 | Yes | |
| Number of simultaneously controllable inputs | ||
| horizontal installation | ||
| up to 40 °C, max. | 8 | |
| up to 60 °C, max. | 8; 6 to Ue 146 V | |
| vertical installation | ||
| up to 40 °C, max. | 8 | |
| Input voltage | ||
| Type of input voltage | DC | |
| Rated value (DC) | 48 V; 48 V DC to 125 V DC | |
| for signal "0" | -146 V DC to +15 V DC | |
| for signal "1" | 30 V DC to 146 V DC | |
| Input current | ||
| for signal "1", typ. | 3.5 mA | |
| Input delay (for rated value of input voltage) | ||
| for standard inputs | ||
| parameterizable | No | |
| at "0" to "1", min. | 0.1 ms | |
| at "0" to "1", max. | 3.5 ms | |
| at "1" to "0", min. | 0.7 ms | |
| at "1" to "0", max. | 3 ms | |
| Cable length | ||
| shielded, max. | 1 000 m | |
| unshielded, max. | 600 m | |
| Encoder | ||
| Connectable encoders | ||
| 2-wire sensor | Yes | |
| permissible quiescent current (2-wire sensor), max. | 1 mA | |
| Interrupts/diagnostics/status information | ||
| Alarms | No | |
| Diagnostics function | No | |
| Alarms | ||
| Diagnostic alarm | No | |
| Hardware interrupt | No | |
| Diagnostics indication LED | ||
| Group error SF (red) | No | |
| Status indicator digital input (green) | Yes | |
| Potential separation | ||
| Potential separation digital inputs | ||
| between the channels | No | |
| between the channels, in groups of | 8 | |
| between the channels and backplane bus | Yes; Optocoupler | |
| Isolation | ||
| Isolation tested with | 1 500 V DC | |
| connection method | ||
| required front connector | 20-pin | |
| Dimensions | ||
| Width | 40 mm | |
| Height | 125 mm | |
| Depth | 120 mm | |
| Weights | ||
| Weight, approx. | 200 g | |
| Approvals / Certificates | ||
