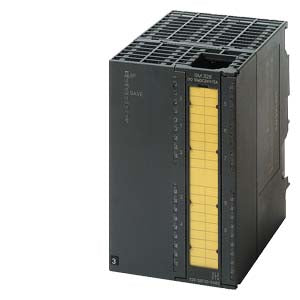

SIMATIC S7-300 SM 326F 10 DO DC 24V 2A
| Supply voltage | ||
| Rated value (DC) | 24 V; 1L+ | |
| Reverse polarity protection | Yes | |
| Load voltage L+ | ||
| Rated value (DC) | 24 V; 2L+, 3L+ | |
| Reverse polarity protection | No | |
| Input current | ||
| from supply voltage 1L+, max. | 70 mA | |
| from load voltage 2L+ (without load), max. | 100 mA | |
| from load voltage 3L+ (without load), max. | 100 mA | |
| from backplane bus 5 V DC, max. | 100 mA | |
| Power loss | ||
| Power loss, typ. | 12 W | |
| Digital outputs | ||
| Number of digital outputs | 10 | |
| Short-circuit protection | Yes | |
| Limitation of inductive shutdown voltage to | L+ (-53 V) without series diode, L+ (-33 V) with series diode | |
| Switching capacity of the outputs | ||
| on lamp load, max. | 5 W | |
| Output voltage | ||
| for signal "1", min. | L+ (-1 V) without series diode, L+ (-1.8 V) with series diode | |
| Output current | ||
| for signal "1" rated value | 2 A | |
| for signal "1" permissible range for 0 to 40 °C, min. | 7 mA | |
| for signal "1" permissible range for 0 to 40 °C, max. | 2 A; 2 A for horizontal installation, 1 A for vertical installation | |
| for signal "1" permissible range for 40 to 60 °C, min. | 7 mA | |
| for signal "1" permissible range for 40 to 60 °C, max. | 1 A; for horizontal installation | |
| for signal "0" residual current, max. | 0.5 mA | |
| Switching frequency | ||
| with resistive load, max. | 10 Hz | |
| with inductive load, max. | 2 Hz | |
| on lamp load, max. | 10 Hz | |
| Total current of the outputs (per group) | ||
| horizontal installation | ||
| up to 40 °C, max. | 7.5 A; without series diode, 5 A with series diode | |
| up to 60 °C, max. | 5 A; without series diode, 4 A with series diode | |
| vertical installation | ||
| up to 40 °C, max. | 5 A; without series diode, 4 A with series diode | |
| Cable length | ||
| shielded, max. | 1 000 m; 200 m for SIL 3, AK 6, Cat 4 | |
| unshielded, max. | 600 m | |
| Interrupts/diagnostics/status information | ||
| Alarms | ||
| Diagnostic alarm | Yes | |
| Diagnoses | ||
| Diagnostic information readable | Yes | |
| Diagnostics indication LED | ||
| Fail-safe operation | Yes | |
| Group error SF (red) | Yes | |
| Potential separation | ||
| Potential separation digital outputs | ||
| between the channels | Yes | |
| between the channels, in groups of | 5 | |
| between the channels and backplane bus | Yes | |
| between the channels and the power supply of the electronics | Yes | |
| Isolation | ||
| Isolation tested with | 500 V DC/350 V AC | |
| Standards, approvals, certificates | ||
| Highest safety class achievable in safety mode | ||
| acc. to DIN VDE 0801 | AK 5 and 6 | |
| acc. to EN 954 | Cat. 4 | |
| Performance level according to ISO 13849-1 | e | |
| SIL acc. to IEC 61508 | SIL 3 | |
| connection method | ||
| required front connector | 40-pin | |
| Dimensions | ||
| Width | 80 mm | |
| Height | 125 mm | |
| Depth | 120 mm | |
| Weights | ||
| Weight, approx. | 465 g | |
| Approvals / Certificates | ||
