Siemens - 6ES7332-5HD01-0AB0
Siemens - 6ES7332-5HD01-0AB0
Regular price
€474,32 EUR
Regular price
Sale price
€474,32 EUR
Couldn't load pickup availability
Low stock: 5 left

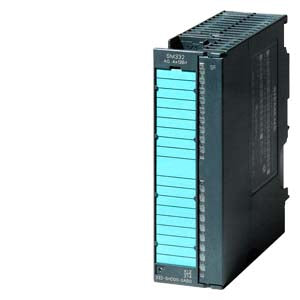

SIMATIC S7-300 SM 332 4 AO U/I 11/12 BIT
| Supply voltage | ||
| Load voltage L+ | ||
| Rated value (DC) | 24 V | |
| Reverse polarity protection | Yes | |
| Input current | ||
| from load voltage L+ (without load), max. | 240 mA | |
| from backplane bus 5 V DC, max. | 60 mA | |
| Power loss | ||
| Power loss, typ. | 3 W | |
| Analog outputs | ||
| Number of analog outputs | 4 | |
| Voltage output, short-circuit protection | Yes | |
| Voltage output, short-circuit current, max. | 25 mA | |
| Current output, no-load voltage, max. | 18 V | |
| Output ranges, voltage | ||
| 0 to 10 V | Yes | |
| 1 V to 5 V | Yes | |
| -10 V to +10 V | Yes | |
| Output ranges, current | ||
| 0 to 20 mA | Yes | |
| -20 mA to +20 mA | Yes | |
| 4 mA to 20 mA | Yes | |
| Load impedance (in rated range of output) | ||
| with voltage outputs, min. | 1 k¦ | |
| with voltage outputs, capacitive load, max. | 1 µF | |
| with current outputs, max. | 500 ¦ | |
| with current outputs, inductive load, max. | 10 mH | |
| Cable length | ||
| shielded, max. | 200 m | |
| Analog value generation for the outputs | ||
| Integration and conversion time/resolution per channel | ||
| Resolution with overrange (bit including sign), max. | 12 bit; ±10 V, ±20 mA, 4 mA to 20 mA, 1 V to 5 V: 11 bit + sign; 0 V to 10 V, 0 mA to 20 mA: 12 bit | |
| Conversion time (per channel) | 0.8 ms | |
| Settling time | ||
| for resistive load | 0.2 ms | |
| for capacitive load | 3.3 ms | |
| for inductive load | 0.5 ms; 0.5 ms (1 mH); 3.3 ms (10 mH) | |
| Errors/accuracies | ||
| Operational error limit in overall temperature range | ||
| Voltage, relative to output range, (+/-) | 0.5 % | |
| Current, relative to output range, (+/-) | 0.6 % | |
| Basic error limit (operational limit at 25 °C) | ||
| Voltage, relative to output range, (+/-) | 0.4 % | |
| Current, relative to output range, (+/-) | 0.5 % | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes; Parameterizable | |
| Alarms | ||
| Diagnostic alarm | Yes; Parameterizable | |
| Diagnoses | ||
| Diagnostic information readable | Yes | |
| Diagnostics indication LED | ||
| Group error SF (red) | Yes | |
| Potential separation | ||
| Potential separation analog outputs | ||
| between the channels | No | |
| between the channels and backplane bus | Yes | |
| Between the channels and load voltage L+ | Yes | |
| between the channels and the power supply of the electronics | Yes | |
| Isolation | ||
| Isolation tested with | 500 V DC | |
| connection method | ||
| required front connector | 20-pin | |
| Dimensions | ||
| Width | 40 mm | |
| Height | 125 mm | |
| Depth | 117 mm | |
| Weights | ||
| Weight, approx. | 220 g | |
| Approvals / Certificates | ||
