Siemens - 6ES7350-2AH01-0AE0
Siemens - 6ES7350-2AH01-0AE0
Regular price
€869,41 EUR
Regular price
Sale price
€869,41 EUR
Couldn't load pickup availability
Low stock: 1 left

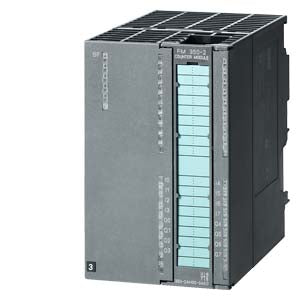

SIMATIC S7-300 FM 350-2 Counter module
| Supply voltage | ||
| Auxiliary voltage 1L+, load voltage 2L+ | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 20.4 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Input current | ||
| from load voltage L+ (without load), max. | 150 mA | |
| from backplane bus 5 V DC, max. | 100 mA | |
| Encoder supply | ||
| NAMUR encoder supply | ||
| 8.2 V | Yes | |
| Short-circuit protection | Yes | |
| Output current, max. | 200 mA | |
| Power loss | ||
| Power loss, typ. | 10 W | |
| Digital inputs | ||
| Number of digital inputs | 8 | |
| Number of NAMUR inputs | 8 | |
| Functions | 1 each for gate start/ gate stop | |
| Input voltage | ||
| for signal "0" | -3 to +5V | |
| for signal "1" | 11 to 30.2 V | |
| Input current | ||
| for signal "0", max. (permissible quiescent current) | 2 mA | |
| for signal "1", typ. | 9 mA | |
| for NAMUR encoders | ||
| for signal "0", max. | 1.2 mA | |
| for signal "1", min. | 2.1 mA | |
| Input delay (for rated value of input voltage) | ||
| Input frequency, max. | 20 kHz | |
| for standard inputs | ||
| at "0" to "1", max. | 50 µs | |
| for NAMUR inputs | ||
| at "0" to "1", max. | 50 µs | |
| Cable length | ||
| shielded, max. | 100 m | |
| Digital outputs | ||
| Number of digital outputs | 8 | |
| Short-circuit protection | Yes | |
| Limitation of inductive shutdown voltage to | L+ (-40 V) | |
| Output voltage | ||
| for signal "1", min. | L+ (-0.8 V) | |
| Output current | ||
| for signal "1" rated value | 0.5 A | |
| for signal "0" residual current, max. | 0.5 mA | |
| Output delay with resistive load | ||
| "0" to "1", max. | 300 µs | |
| Switching frequency | ||
| with resistive load, max. | 500 Hz | |
| with inductive load, max. | 0.5 Hz | |
| Total current of the outputs (per group) | ||
| horizontal installation | ||
| up to 40 °C, max. | 4 A | |
| up to 60 °C, max. | 2 A | |
| all other mounting positions | ||
| up to 40 °C, max. | 2 A | |
| Cable length | ||
| shielded, max. | 600 m | |
| unshielded, max. | 100 m | |
| Encoder | ||
| Connectable encoders | ||
| Incremental encoder (asymmetrical) | Yes | |
| 24 V initiator | Yes | |
| 24 V directional element | Yes | |
| NAMUR encoder | Yes; to DIN 19 234 | |
| 2-wire sensor | Yes | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes; Diagnostic information readable | |
| Alarms | ||
| Diagnostic alarm | Yes; Parameterizable | |
| Hardware interrupt | Yes; Parameterizable | |
| Diagnostics indication LED | ||
| Group error SF (red) | Yes | |
| Counter | ||
| Number of counter inputs | 8; 32 bit or ±31 bit | |
| Counter input 24 V | ||
| Input voltage for signal "0" | -3 to +5V | |
| Input voltage for signal "1" | 11 to 30.2 V | |
| Input current for signal "1", typ. | 9 mA | |
| Counting frequency, max. | 20 kHz; Incremental encoder: 10 kHz | |
| Potential separation | ||
| Potential separation digital inputs | ||
| between the channels and backplane bus | Yes; and shielding | |
| Potential separation digital outputs | ||
| between the channels and backplane bus | Yes; and shielding | |
| Potential separation counter | ||
| between the channels and backplane bus | Yes; and shielding | |
| connection method | ||
| required front connector | 1x 40-pin | |
| Dimensions | ||
| Width | 80 mm | |
| Height | 125 mm | |
| Depth | 120 mm | |
| Weights | ||
| Weight, approx. | 460 g | |
| Approvals / Certificates | ||
