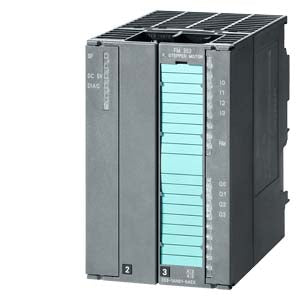

Siemens - 6ES7353-1AH01-0AE0
Siemens - 6ES7353-1AH01-0AE0
Regular price
€622,33 EUR
Regular price
Sale price
€622,33 EUR
Couldn't load pickup availability
Low stock: 1 left
SIMATIC S7-300 FM 353 Function module
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 20.4 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Input current | ||
| Current consumption, max. | 300 mA | |
| Power loss | ||
| Power loss, typ. | 7 W | |
| Digital inputs | ||
| Number of digital inputs | 4; + 1 input for message signal | |
| Functions | Reference cams, flying actual value setting, flying measurement, start/stop positioning, external block change | |
| Input voltage | ||
| Rated value (DC) | 24 V | |
| for signal "0" | -3 to +5V | |
| for signal "1" | +11 to +30V | |
| Input current | ||
| for signal "0", max. (permissible quiescent current) | 2 mA | |
| for signal "1", typ. | 6 mA; 6 to 15 mA | |
| Digital outputs | ||
| Number of digital outputs | 4 | |
| Functions | Position reached: stop, axis travels forward, axis travels back, change M-function M97, change M-function M98, start enable, direct output via data record | |
| Short-circuit protection | Yes | |
| Output voltage | ||
| Rated value (DC) | 24 V | |
| for signal "1", min. | UP -3 V | |
| Output current | ||
| for signal "1" permissible range for 0 to 55 °C, max. | 0.6 A; with UPmax | |
| for signal "0" residual current, max. | 2 mA | |
| Drive interface | ||
| Signal Input | ||
| Function | "Power section ready" | |
| Stepper drive | ||
| Differential output voltage, min. | 2 V; RL = 100 Ohm | |
| Differential output voltage for signal "0", max. | 1 V; Io = 20 mA | |
| Differential output voltage for signal "1", min. | 3.7 V; Io = -20 mA | |
| Cable length, shielded, max. | 35 m | |
| Potential separation | ||
| Potential separation digital inputs | ||
| Potential separation digital inputs | No | |
| Potential separation digital outputs | ||
| Potential separation digital outputs | No | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| min. | 0 °C | |
| max. | 55 °C | |
| Ambient temperature during storage/transportation | ||
| min. | -40 °C | |
| max. | 70 °C | |
| connection method | ||
| required front connector | 1x 20-pin | |
| Dimensions | ||
| Width | 80 mm | |
| Height | 125 mm | |
| Depth | 118 mm | |
| Weights | ||
| Weight, approx. | 500 g | |
| Approvals / Certificates | ||
