Siemens - 6ES7355-1VH10-0AE0
Siemens - 6ES7355-1VH10-0AE0
Regular price
€802,03 EUR
Regular price
Sale price
€802,03 EUR
Couldn't load pickup availability
Low stock: 1 left

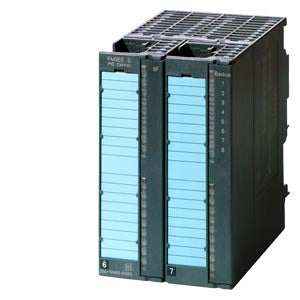

SIMATIC S7-300 FM 355S Control unit
| Supply voltage | ||
| Load voltage L+ | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 20.4 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Input current | ||
| from load voltage L+ (without load), max. | 270 mA; typ. 220 mA | |
| from backplane bus 5 V DC, max. | 75 mA; typ. 50 mA | |
| Power loss | ||
| Power loss, typ. | 5.5 W | |
| Power loss, max. | 6.9 W | |
| Digital inputs | ||
| Number of digital inputs | 8 | |
| Input characteristic curve in accordance with IEC 61131, type 2 | Yes | |
| Input voltage | ||
| Rated value (DC) | 24 V | |
| for signal "0" | -3 to +5V | |
| for signal "1" | 13 to 30V | |
| Input current | ||
| for signal "1", typ. | 7 mA | |
| Cable length | ||
| shielded, max. | 1 000 m | |
| unshielded, max. | 600 m | |
| Digital outputs | ||
| Number of digital outputs | 8 | |
| Short-circuit protection | Yes; Electronic | |
| Limitation of inductive shutdown voltage to | L+ (-1.5 V) | |
| Controlling a digital input | Yes | |
| Switching capacity of the outputs | ||
| on lamp load, max. | 5 W | |
| Load resistance range | ||
| lower limit | 240 ¦ | |
| upper limit | 4 k¦ | |
| Output voltage | ||
| for signal "1", min. | L+ (-2.5 V) | |
| Output current | ||
| for signal "1" rated value | 100 mA | |
| for signal "1" permissible range for 0 to 60 °C, min. | 5 mA | |
| for signal "1" permissible range for 0 to 60 °C, max. | 150 mA | |
| for signal "0" residual current, max. | 0.5 mA | |
| Parallel switching of two outputs | ||
| for logic links | Yes | |
| Switching frequency | ||
| with resistive load, max. | 100 Hz | |
| with inductive load, max. | 0.5 Hz | |
| on lamp load, max. | 100 Hz | |
| Total current of the outputs (per group) | ||
| all mounting positions | ||
| up to 60 °C, max. | 400 mA | |
| Cable length | ||
| shielded, max. | 1 000 m | |
| unshielded, max. | 600 m | |
| Analog inputs | ||
| Number of analog inputs | 4 | |
| permissible input voltage for voltage input (destruction limit), max. | 30 V | |
| permissible input current for current input (destruction limit), max. | 40 mA | |
| Input ranges | ||
| Voltage | Yes | |
| Current | Yes | |
| Thermocouple | Yes | |
| Resistance thermometer | Yes | |
| Input ranges (rated values), voltages | ||
| 0 to +10 V | Yes | |
| Input resistance (0 to 10 V) | 100 k¦ | |
| -1.75 V to +11.75 V | Yes | |
| Input resistance (-1.75 V to +11.75 V) | 100 k¦ | |
| -80 mV to +80 mV | Yes | |
| Input resistance (-80 mV to +80 mV) | 10 M¦ | |
| Input ranges (rated values), currents | ||
| 0 to 20 mA | Yes | |
| Input resistance (0 to 20 mA) | 50 ¦ | |
| 0 to 23.5 mA | Yes | |
| Input resistance (0 to 23.5 mA) | 50 ¦ | |
| -3.5 mA to +23.5 mA | Yes | |
| Input resistance (-3.5 mA to +23.5 mA) | 50 ¦ | |
| 4 mA to 20 mA | Yes | |
| Input resistance (4 mA to 20 mA) | 50 ¦ | |
| Input ranges (rated values), thermocouples | ||
| Type B | Yes | |
| Input resistance (Type B) | 10 M¦ | |
| Type J | Yes | |
| Input resistance (type J) | 10 M¦ | |
| Type K | Yes | |
| Input resistance (Type K) | 10 M¦ | |
| Type R | Yes | |
| Input resistance (Type R) | 10 M¦ | |
| Type S | Yes | |
| Input resistance (Type S) | 10 M¦ | |
| Input ranges (rated values), resistance thermometer | ||
| Pt 100 | Yes | |
| Input resistance (Pt 100) | 10 M¦ | |
| Thermocouple (TC) | ||
| Temperature compensation | ||
| internal temperature compensation | Yes | |
| external temperature compensation with Pt100 | Yes | |
| Characteristic linearization | ||
| parameterizable | Yes | |
| for thermocouples | Type B, J, K, R, S | |
| for resistance thermometer | Pt100 (standard) | |
| Cable length | ||
| shielded, max. | 200 m; 50 m at 80 mV and thermocouples | |
| Analog value generation for the inputs | ||
| Integration and conversion time/resolution per channel | ||
| Resolution with overrange (bit including sign), max. | 14 bit; 12 bit or 14 bit, parameterizable | |
| Encoder | ||
| Connection of signal encoders | ||
| for voltage measurement | Yes | |
| for current measurement as 4-wire transducer | Yes | |
| Connectable encoders | ||
| 2-wire sensor | Yes | |
| permissible quiescent current (2-wire sensor), max. | 1.5 mA | |
| Errors/accuracies | ||
| Operational error limit in overall temperature range | ||
| Voltage, relative to input range, (+/-) | 0.6 %; ±0.6 to ±1% | |
| Current, relative to input range, (+/-) | 0.6 %; ±0.6 to ±1% | |
| Resistance thermometer, relative to input range, (+/-) | 0.6 %; ±0.6 to ±1% | |
| Basic error limit (operational limit at 25 °C) | ||
| Voltage, relative to input range, (+/-) | 0.4 %; 80 mV: ±0.6 %; 250 to 1 000 mV: ±0.4 %; 2.5 to 10 V: ±0.6 %; 3.2 to 20 mA: ±0.5 % | |
| Current, relative to input range, (+/-) | 0.4 %; ±0.4 to ±0.6 % | |
| Resistance thermometer, relative to input range, (+/-) | 0.4 %; ±0.4 to ±0.6 % | |
| Interrupts/diagnostics/status information | ||
| Substitute values connectable | Yes; Parameterizable | |
| Integrated Functions | ||
