Siemens - 6ES7392-1AM00-0AA0
Siemens - 6ES7392-1AM00-0AA0
Regular price
€30,20 EUR
Regular price
Sale price
€30,20 EUR
Couldn't load pickup availability
Low stock: 3 left

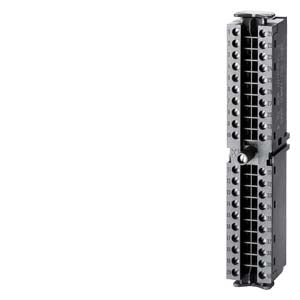

SIMATIC S7-300 Front connector screw contacts 40-pole
| General information | ||
| Product type designation | Front connector | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| min. | 0 °C | |
| max. | 60 °C | |
| Ambient temperature during storage/transportation | ||
| min. | -40 °C | |
| max. | 70 °C | |
| Accessories | ||
| belongs to product | S7-300 | |
| connection method | ||
| Connection I/O signals | ||
| Connection method | Screw terminals | |
| Number of lines per connection | 1; Or 2 cables up to 0.75 mm² (total) in a shared end sleeve | |
| Conductor cross-section in mm² | ||
| Connectable cable cross-sections for massive cables, min. | 0.14 mm² | |
| Connectable cable cross-sections for massive cables, min. | 0.75 mm² | |
| Connectable cable cross-sections for flexible cables without end sleeve, min. | 0.14 mm² | |
| Connectable cable cross-sections for flexible cables without end sleeve, max. | 0.75 mm² | |
| Connectable cable cross-sections for flexible cables with end sleeve, min. | 0.14 mm² | |
| Connectable cable cross-sections for flexible cables with end sleeve, max. | 0.75 mm² | |
| Conductor cross-section acc. to AWG | ||
| Connectable cable cross-sections for massive cables, min. | 24 | |
| Connectable cable cross-sections for massive cables, min. | 19 | |
| Connectable cable cross-sections for flexible cables without end sleeve, min. | 24 | |
| Connectable cable cross-sections for flexible cables without end sleeve, max. | 19 | |
| Connectable cable cross-sections for flexible cables with end sleeve, min. | 24 | |
| Connectable cable cross-sections for flexible cables with end sleeve, max. | 19 | |
| Wire end processing | ||
| Stripped length of cables, min. | 6 mm | |
| Stripped length of cables, max. | 6 mm | |
| End sleeve acc. to DIN 46228 without plastic sleeve | Design A, 5 mm to 7 mm long | |
| End sleeve acc. to DIN 46228 with plastic sleeve | Design E, up to 6 mm long | |
| Mounting | ||
| Tool | Screwdriver, conical design, 3 mm to 3.5 mm | |
| Tightening torque, min. | 0.4 N·m | |
| Tightening torque, max. | 0.7 N·m | |
| Dimensions | ||
| Width | 21.6 mm | |
| Height | 125 mm | |
| Depth | 40.9 mm | |
| Weights | ||
| Weight, approx. | 137 g | |
| Approvals / Certificates | ||
