Siemens - 6ES7412-1XJ05-0AB0
Siemens - 6ES7412-1XJ05-0AB0
Regular price
€1.134,05 EUR
Regular price
Sale price
€1.134,05 EUR
Couldn't load pickup availability
Low stock: 1 left

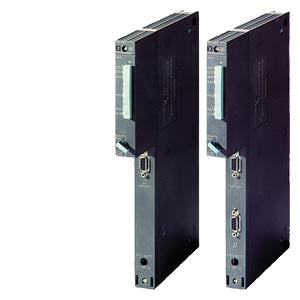

SIMATIC S7-400 CPU 412-1
| General information | ||
| Product type designation | CPU 412-1 | |
| HW functional status | 03 | |
| Firmware version | V5.3 | |
| Product function | ||
| Isochronous mode | Yes; For PROFIBUS only | |
| Engineering with | ||
| Programming package | STEP 7 V5.3 SP2 or higher with HW update | |
| CiR - Configuration in RUN | ||
| CiR synchronization time, basic load | 100 ms | |
| CiR synchronization time, time per I/O byte | 30 µs | |
| Supply voltage | ||
| Rated value (DC) | Power supply via system power supply | |
| Input current | ||
| from backplane bus 5 V DC, typ. | 0.5 A | |
| from backplane bus 5 V DC, max. | 0.6 A | |
| from backplane bus 24 V DC, max. | 150 mA; 150 mA per DP interface | |
| from interface 5 V DC, max. | 90 mA | |
| Power loss | ||
| Power loss, typ. | 2.5 W | |
| Memory | ||
| Type of memory | RAM | |
| Work memory | ||
| integrated | 288 kbyte | |
| integrated (for program) | 144 kbyte | |
| integrated (for data) | 144 kbyte | |
| expandable | No | |
| Load memory | ||
| expandable FEPROM | Yes; with Memory Card (FLASH) | |
| expandable FEPROM, max. | 64 Mbyte | |
| integrated RAM, max. | 512 kbyte | |
| expandable RAM | Yes; with Memory Card (RAM) | |
| expandable RAM, max. | 64 Mbyte | |
| Backup | ||
| present | Yes | |
| with battery | Yes; all data | |
| without battery | No | |
| Battery | ||
| Backup battery | ||
| Backup current, typ. | 125 µA; up to 40 °C | |
| Backup current, max. | 300 µA | |
| Backup time, max. | See reference manual, module data, Chapter 3.3 | |
| Feeding of external backup voltage to CPU | 5 V DC to 15 V DC | |
| CPU processing times | ||
| for bit operations, typ. | 75 ns | |
| for word operations, typ. | 75 ns | |
| for fixed point arithmetic, typ. | 75 ns | |
| for floating point arithmetic, typ. | 225 ns | |
| CPU-blocks | ||
| DB | ||
| Number, max. | 1 500; Number range: 1 to 16000 | |
| Size, max. | 64 kbyte | |
| FB | ||
| Number, max. | 750; Number range: 0 to 7999 | |
| Size, max. | 64 kbyte | |
| FC | ||
| Number, max. | 750; Number range: 0 to 7999 | |
| Size, max. | 64 kbyte | |
| OB | ||
| Number, max. | see instruction list | |
| Size, max. | 64 kbyte | |
| Number of free cycle OBs | 1; OB 1 | |
| Number of time alarm OBs | 2; OB 10, 11 | |
| Number of delay alarm OBs | 2; OB 20, 21 | |
| Number of cyclic interrupt OBs | 2; OB 32, 35 (shortest cycle that can be set = 500 µs) | |
| Number of process alarm OBs | 2; OB 40, 41 | |
| Number of DPV1 alarm OBs | 3; OB 55-57 | |
| Number of isochronous mode OBs | 2; OB 61-62 | |
| Number of multicomputing OBs | 1; OB 60 | |
| Number of background OBs | 1; OB 90 | |
| Number of startup OBs | 3; OB 100-102 | |
| Number of asynchronous error OBs | 9; OB 80-88 | |
| Number of synchronous error OBs | 2; OB 121, 122 | |
| Nesting depth | ||
| per priority class | 24 | |
| additional within an error OB | 1 | |
| Counters, timers and their retentivity | ||
| S7 counter | ||
| Number | 2 048 | |
| Retentivity | ||
| adjustable | Yes | |
| preset | Z 0 to Z 7 | |
| Counting range | ||
| lower limit | 0 | |
| upper limit | 999 | |
| IEC counter | ||
| present | Yes | |
| Type | SFB | |
| Number | Unlimited (limited only by RAM capacity) | |
| S7 times | ||
| Number | 2 048 | |
| Retentivity | ||
| adjustable | Yes | |
| preset | No times retentive | |
| Time range | ||
| lower limit | 10 ms | |
| upper limit | 9 990 s | |
| IEC timer | ||
| present | Yes | |
| Type | SFB | |
| Number | Unlimited (limited only by RAM capacity) | |
| Data areas and their retentivity | ||
| Retentive data area (incl. timers, counters, flags), max. | Total working and load memory (with backup battery) | |
| Flag | ||
| Size, max. | 4 kbyte; Size of bit memory address area | |
| Retentivity available | Yes | |
| Retentivity preset | MB 0 to MB 15 | |
| Number of clock memories | 8; in 1 memory byte | |
| Local data | ||
| adjustable, max. | 8 kbyte | |
| preset | 4 kbyte | |
| Address area | ||
| I/O address area | ||
| Inputs | 4 kbyte | |
| Outputs | 4 kbyte | |
| Process image | ||
| Inputs, adjustable | 4 kbyte | |
| Outputs, adjustable | 4 kbyte | |
| Inputs, default | 128 byte | |
| Outputs, default | 128 byte | |
| consistent data, max. | 244 byte | |
| Access to consistent data in process image | Yes | |
| Subprocess images | ||
| Number of subprocess images, max. | 15 | |
| Digital channels | ||
