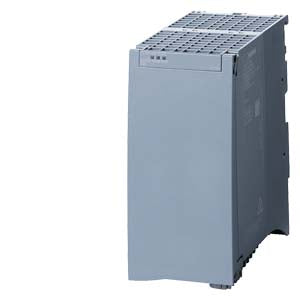

Siemens - 6ES7505-0RA00-0AB0
Siemens - 6ES7505-0RA00-0AB0
Regular price
€339,57 EUR
Regular price
Sale price
€339,57 EUR
Couldn't load pickup availability
Low stock: 1 left
SIMATIC S7-1500 PS 60W DC 24/48/60V
| General information | ||
| Product type designation | PS 60 W 24/48/60 V DC | |
| HW functional status | from FS04 | |
| Firmware version | from V1.0.0 | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V12 / V12 | |
| STEP 7 configurable/integrated from version | V5.5 SP3 or higher | |
| Supply voltage | ||
| Rated value (DC) | 24 V / 48 V / 60 V | |
| permissible range, lower limit (DC) | 19.2 V; Static 19.2 V, dynamic 18.5 V | |
| permissible range, upper limit (DC) | 72 V; Static 72 V, dynamic 75.5 V | |
| Reverse polarity protection | Yes | |
| Short-circuit protection | Yes | |
| Mains buffering | ||
| Mains/voltage failure stored energy time | 20 ms | |
| Input current | ||
| Rated value at 24 V DC | 3 A | |
| Rated value at 48 V DC | 1.5 A | |
| Rated value at 60 V DC | 1.2 A | |
| Output current | ||
| Short-circuit protection | Yes | |
| Power | ||
| Infeed power to the backplane bus | 60 W | |
| Power loss | ||
| Power loss at nominal rating conditions | 12 W | |
| Interrupts/diagnostics/status information | ||
| Status indicator | Yes | |
| Potential separation | ||
| primary/secondary | Yes; Electrical isolation for 230 V AC (reinforced isolation) | |
| Isolation | ||
| Isolation tested with | 2 500 V DC/2 s (routine test) | |
| EMC | ||
| Interference immunity against voltage surge | ||
| Interference immunity on supply lines acc. to IEC 61000-4-5 | Yes; ±1 kV (acc. to IEC 61000-4-5; 1995; surge symm.), ±2 kV (acc. to IEC 61000-4-5; 1995; surge asymm.), no external protective circuit required | |
| Degree and class of protection | ||
| Equipment protection class | I, with protective conductor | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| min. | -25 °C; up to FS04: 0 °C | |
| max. | 60 °C | |
| horizontal installation, min. | -25 °C; up to FS04: 0 °C | |
| horizontal installation, max. | 60 °C | |
| vertical installation, min. | -25 °C; up to FS04: 0 °C | |
| vertical installation, max. | 40 °C | |
| Ambient temperature during storage/transportation | ||
| min. | -40 °C | |
| max. | 70 °C | |
| Altitude during operation relating to sea level | ||
| Installation altitude above sea level, max. | 2 000 m | |
| Dimensions | ||
| Width | 70 mm | |
| Height | 147 mm | |
| Depth | 129 mm | |
| Weights | ||
| Weight, approx. | 600 g | |
| Approvals / Certificates | ||
