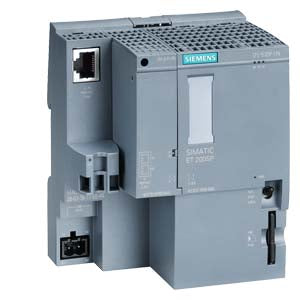

Siemens - 6ES7512-1DK01-0AB0
Siemens - 6ES7512-1DK01-0AB0
Regular price
€670,90 EUR
Regular price
Sale price
€670,90 EUR
Couldn't load pickup availability
Low stock: 5 left
SIMATIC DP CPU 1512SP-1 PN
| General information | ||
| Product type designation | CPU 1512SP-1 PN | |
| HW functional status | FS05 | |
| Firmware version | V2.9 | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Module swapping during operation (hot swapping) | Yes; Multi-hot swapping | |
| Isochronous mode | Yes; Only with PROFINET; with minimum OB 6x cycle of 625 µs | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V17 (FW V2.9) / V13 SP1 Update 4 (FW V1.8) or higher | |
| Configuration control | ||
| via dataset | Yes | |
| Control elements | ||
| Mode selector switch | 1 | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Mains buffering | ||
| Mains/voltage failure stored energy time | 5 ms | |
| Input current | ||
| Current consumption (rated value) | 0.6 A | |
| Current consumption, max. | 0.9 A | |
| Inrush current, max. | 4.7 A; Rated value | |
| I²t | 0.14 A²·s | |
| Power | ||
| Infeed power to the backplane bus | 8.75 W | |
| Power loss | ||
| Power loss, typ. | 5.6 W | |
| Memory | ||
| Number of slots for SIMATIC memory card | 1 | |
| SIMATIC memory card required | Yes | |
| Work memory | ||
| integrated (for program) | 200 kbyte | |
| integrated (for data) | 1 Mbyte | |
| Load memory | ||
| Plug-in (SIMATIC Memory Card), max. | 32 Gbyte | |
| Backup | ||
| maintenance-free | Yes | |
| CPU processing times | ||
| for bit operations, typ. | 48 ns | |
| for word operations, typ. | 58 ns | |
| for fixed point arithmetic, typ. | 77 ns | |
| for floating point arithmetic, typ. | 307 ns | |
| CPU-blocks | ||
| Number of elements (total) | 4 000; Blocks (OB, FB, FC, DB) and UDTs | |
| DB | ||
| Number range | 1 ... 60 999; subdivided into: number range that can be used by the user: 1 ... 59 999, and number range of DBs created via SFC 86: 60 000 ... 60 999 | |
| Size, max. | 1 Mbyte; For DBs with absolute addressing, the max. size is 64 KB | |
| FB | ||
| Number range | 0 ... 65 535 | |
| Size, max. | 200 kbyte | |
| FC | ||
| Number range | 0 ... 65 535 | |
| Size, max. | 200 kbyte | |
| OB | ||
| Size, max. | 200 kbyte | |
| Number of free cycle OBs | 100 | |
| Number of time alarm OBs | 20 | |
| Number of delay alarm OBs | 20 | |
| Number of cyclic interrupt OBs | 20; With minimum OB 3x cycle of 500 µs | |
| Number of process alarm OBs | 50 | |
| Number of DPV1 alarm OBs | 3 | |
| Number of isochronous mode OBs | 1 | |
| Number of technology synchronous alarm OBs | 2 | |
| Number of startup OBs | 100 | |
| Number of asynchronous error OBs | 4 | |
| Number of synchronous error OBs | 2 | |
| Number of diagnostic alarm OBs | 1 | |
| Nesting depth | ||
| per priority class | 24 | |
| Counters, timers and their retentivity | ||
| S7 counter | ||
| Number | 2 048 | |
| Retentivity | ||
| adjustable | Yes | |
| IEC counter | ||
| Number | Any (only limited by the main memory) | |
| Retentivity | ||
| adjustable | Yes | |
| S7 times | ||
| Number | 2 048 | |
| Retentivity | ||
| adjustable | Yes | |
| IEC timer | ||
| Number | Any (only limited by the main memory) | |
| Retentivity | ||
| adjustable | Yes | |
| Data areas and their retentivity | ||
| Retentive data area (incl. timers, counters, flags), max. | 128 kbyte; Available retentive memory for bit memories, timers, counters, DBs, and technology data (axes): 88 KB | |
| Flag | ||
| Size, max. | 16 kbyte | |
| Number of clock memories | 8; 8 clock memory bit, grouped into one clock memory byte | |
| Data blocks | ||
| Retentivity adjustable | Yes | |
| Retentivity preset | No | |
| Local data | ||
| per priority class, max. | 64 kbyte; max. 16 KB per block | |
| Address area | ||
| Number of IO modules | 2 048; max. number of modules / submodules | |
| I/O address area | ||
| Inputs | 32 kbyte; All inputs are in the process image | |
| Outputs | 32 kbyte; All outputs are in the process image | |
| per integrated IO subsystem | ||
| Inputs (volume) | 8 kbyte | |
| Outputs (volume) | 8 kbyte | |
| per CM/CP | ||
| Inputs (volume) | 8 kbyte | |
| Outputs (volume) | 8 kbyte | |
| Subprocess images | ||
| Number of subprocess images, max. | 32 | |
| Address space per module | ||
| Address space per module, max. | 288 byte; For input and output data respectively | |
| Address space per station | ||
| Address space per station, max. | 2 560 byte; for central inputs and outputs; depending on configuration; 2 048 bytes for ET 200SP modules + 512 bytes for ET 200AL modules | |
| Hardware configuration | ||
| Number of distributed IO systems | 32; A distributed I/O system is characterized not only by the integration of distributed I/O via PROFINET or PROFIBUS communication modules, but also by the connection of I/O via AS-i master modules or links (e.g. IE/PB-Link) | |
| Number of DP masters | ||
| Via CM | 1 | |
| Number of IO Controllers | ||
| integrated | 1 | |
| Via CM | 0 | |
| Rack | ||
| Modules per rack, max. | 80; CPU + | |
