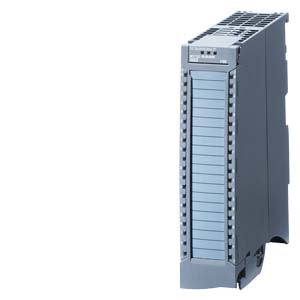

Siemens - 6ES7522-1BF00-0AB0
Siemens - 6ES7522-1BF00-0AB0
Regular price
€125,11 EUR
Regular price
Sale price
€125,11 EUR
Couldn't load pickup availability
Low stock: 1 left
SIMATIC S7-1500 DQ 8x24VDC/2A HF
| General information | ||
| Product type designation | DQ 8x24VDC/2A HF | |
| HW functional status | From FS03 | |
| Firmware version | V2.2.0 | |
| FW update possible | Yes | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Isochronous mode | No | |
| Prioritized startup | Yes | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V13 SP1 / - | |
| STEP 7 configurable/integrated from version | V5.5 SP3 / - | |
| PROFIBUS from GSD version/GSD revision | V1.0 / V5.1 | |
| PROFINET from GSD version/GSD revision | V2.3 / - | |
| Operating mode | ||
| DQ | Yes | |
| DQ with energy-saving function | Yes; with an application | |
| PWM | Yes | |
| Cam control (switching at comparison values) | No | |
| Oversampling | No | |
| MSO | Yes | |
| Integrated operating cycle counter | Yes | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes; through internal protection with 10 A per group | |
| Input current | ||
| Current consumption, max. | 40 mA; 20 mA per group, no output is activated. | |
| output voltage / header | ||
| Rated value (DC) | 24 V | |
| Power | ||
| Power consumption from the backplane bus | 0.9 W | |
| Power loss | ||
| Power loss, typ. | 5.6 W; 6.8 W for PWM operation | |
| Digital outputs | ||
| Type of digital output | Transistor | |
| Number of digital outputs | 8 | |
| Current-sourcing | Yes | |
| Digital outputs, parameterizable | Yes | |
| output type acc. to IEC 61131, type 2 | Yes | |
| Short-circuit protection | Yes | |
| Response threshold, typ. | 3 A | |
| Limitation of inductive shutdown voltage to | -17 V | |
| Controlling a digital input | Yes | |
| Digital output functions, parameterizable | ||
| Freely usable digital output | Yes | |
| PWM output | Yes; FS02 and FW V2.1.0 or higher | |
| Number, max. | 2 | |
| Cycle duration, parameterizable | Yes; 2 ... 100 ms continuous | |
| ON period, min. | 0 % | |
| ON period, max. | 100 % | |
| Resolution of the duty cycle | 0.1 % | |
| Minimum pulse duration | 300 µs | |
| Switching capacity of the outputs | ||
| on lamp load, max. | 10 W | |
| Load resistance range | ||
| lower limit | 12 ¦ | |
| upper limit | 4 k¦ | |
| Output voltage | ||
| for signal "1", min. | L+ (-0.8 V) | |
| Output current | ||
| for signal "1" rated value | 2 A | |
| for signal "1" permissible range, max. | 2.4 A; note derating specification for PWM operation | |
| for signal "0" residual current, max. | 0.5 mA | |
| Output delay with resistive load | ||
| "0" to "1", typ. | 80 µs | |
| "0" to "1", max. | 100 µs | |
| "1" to "0", typ. | 300 µs | |
| "1" to "0", max. | 500 µs | |
| Parallel switching of two outputs | ||
| for logic links | Yes | |
| for uprating | No | |
| for redundant control of a load | Yes | |
| Switching frequency | ||
| with resistive load, max. | 100 Hz; With PWM operation: 500 Hz | |
| with inductive load, max. | 0.5 Hz; According to IEC 60947-5-1, DC-13; max. 500 Hz with PWM operation only with external circuit; see additional description in the manual | |
| on lamp load, max. | 10 Hz | |
| Total current of the outputs | ||
| Current per channel, max. | 2 A; see additional description in the manual | |
| Current per group, max. | 8 A; see additional description in the manual | |
| Current per module, max. | 16 A; see additional description in the manual | |
| Cable length | ||
| shielded, max. | 1 000 m | |
| unshielded, max. | 600 m | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes | |
| Substitute values connectable | Yes | |
| Alarms | ||
| Diagnostic alarm | Yes | |
| Maintenance interrupt | Yes | |
| Diagnoses | ||
| Monitoring the supply voltage | Yes | |
| Wire-break | No | |
| Short-circuit | Yes | |
| Group error | Yes | |
| Diagnostics indication LED | ||
| RUN LED | Yes; green LED | |
| ERROR LED | Yes; red LED | |
| MAINT LED | Yes; Yellow LED | |
| Monitoring of the supply voltage (PWR-LED) | Yes; green LED | |
| Channel status display | Yes; green LED | |
| for channel diagnostics | Yes; red LED | |
| for module diagnostics | Yes; red LED | |
| Potential separation | ||
| Potential separation channels | ||
| between the channels | No | |
| between the channels, in groups of | 4 | |
| between the channels and backplane bus | Yes | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Standards, approvals, certificates | ||
| Siemens Eco Profile (SEP) | Siemens EcoTech | |
| Suitable for safety functions | No | |
| Suitable for safety-related tripping of standard modules | Yes; From FS03 | |
| Ecological footprint | ||
| environmental product declaration | Yes | |
| Global warming potential | ||
| global warming potential, (total) [CO2 eq] | 43.8 kg | |
| global warming potential, (during production) [CO2 eq] | 9.5 kg | |
| global warming potential, (during operation) [CO2 eq] | 34.5 kg | |
