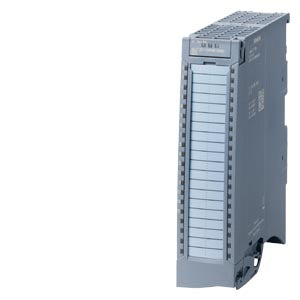

SIMATIC S7-1500 AI 16xI BA
| General information | ||
| Product type designation | AI 16xI BA | |
| HW functional status | from FS01 | |
| Firmware version | V1.0.0 | |
| FW update possible | Yes | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Isochronous mode | No | |
| Prioritized startup | No | |
| Measuring range scalable | No | |
| Scalable measured values | No | |
| Adjustment of measuring range | No | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V16 with HSP 312 / V17 | |
| STEP 7 configurable/integrated from version | V5.5 SP3 / - | |
| PROFIBUS from GSD version/GSD revision | V1.0 / V5.1 | |
| PROFINET from GSD version/GSD revision | V2.3 / - | |
| Operating mode | ||
| Oversampling | No | |
| MSI | Yes | |
| CiR - Configuration in RUN | ||
| Reparameterization possible in RUN | Yes | |
| Calibration possible in RUN | No | |
| Power | ||
| Power consumption from the backplane bus | 0.85 W | |
| Power loss | ||
| Power loss, typ. | 1.2 W | |
| Analog inputs | ||
| Number of analog inputs | 16 | |
| For current measurement | 16 | |
| permissible input current for current input (destruction limit), max. | 40 mA | |
| Input ranges (rated values), currents | ||
| 0 to 20 mA | Yes | |
| Input resistance (0 to 20 mA) | 25 ¦; Plus approx. 42 ohms for overvoltage protection by PTC | |
| -20 mA to +20 mA | Yes | |
| Input resistance (-20 mA to +20 mA) | 25 ¦; Plus approx. 42 ohms for overvoltage protection by PTC | |
| 4 mA to 20 mA | Yes | |
| Input resistance (4 mA to 20 mA) | 25 ¦; Plus approx. 42 ohms for overvoltage protection by PTC | |
| Cable length | ||
| shielded, max. | 800 m | |
| Analog value generation for the inputs | ||
| Measurement principle | integrating | |
| Integration and conversion time/resolution per channel | ||
| Resolution with overrange (bit including sign), max. | 16 bit | |
| Integration time, parameterizable | Yes | |
| Integration time (ms) | 2,5 / 16,67 / 20 / 100 ms | |
| Basic conversion time, including integration time (ms) | 10 / 24 / 27 / 107 ms | |
| Interference voltage suppression for interference frequency f1 in Hz | 400 / 60 / 50 / 10 Hz | |
| Smoothing of measured values | ||
| parameterizable | Yes | |
| Step: None | Yes | |
| Step: low | Yes | |
| Step: Medium | Yes | |
| Step: High | Yes | |
| Encoder | ||
| Connection of signal encoders | ||
| for voltage measurement | No | |
| for current measurement as 2-wire transducer | Yes; with external supply | |
| for current measurement as 4-wire transducer | Yes | |
| for resistance measurement with two-wire connection | No | |
| for resistance measurement with three-wire connection | No | |
| for resistance measurement with four-wire connection | No | |
| Errors/accuracies | ||
| Linearity error (relative to input range), (+/-) | 0.1 % | |
| Temperature error (relative to input range), (+/-) | 0.006 %/K | |
| Crosstalk between the inputs, max. | -50 dB | |
| Repeat accuracy in steady state at 25 °C (relative to input range), (+/-) | 0.1 % | |
| Operational error limit in overall temperature range | ||
| Current, relative to input range, (+/-) | 0.5 % | |
| Basic error limit (operational limit at 25 °C) | ||
| Current, relative to input range, (+/-) | 0.3 % | |
| Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency | ||
| Series mode interference (peak value of interference < rated value of input range), min. | 40 dB | |
| Common mode voltage, max. | 4 V | |
| Common mode interference, min. | 60 dB | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes | |
| Alarms | ||
| Diagnostic alarm | Yes | |
| Limit value alarm | Yes; two upper and two lower limit values in each case | |
| Diagnoses | ||
| Monitoring the supply voltage | No | |
| Wire-break | Yes; Only for 4 ... 20 mA | |
| Short-circuit | No | |
| Group error | No | |
| Overflow/underflow | Yes | |
| Diagnostics indication LED | ||
| RUN LED | Yes; green LED | |
| ERROR LED | Yes; red LED | |
| MAINT LED | No | |
| Monitoring of the supply voltage (PWR-LED) | No | |
| Channel status display | Yes; green LED | |
| for channel diagnostics | Yes; red LED | |
| for module diagnostics | Yes; red LED | |
| Potential separation | ||
| Potential separation channels | ||
| between the channels | No | |
| between the channels, in groups of | 16 | |
| between the channels and backplane bus | Yes | |
| Permissible potential difference | ||
| between the inputs (UCM) | 8 V DC | |
| Between the inputs and MANA (UCM) | 4 V DC | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Standards, approvals, certificates | ||
| Siemens Eco Profile (SEP) | Siemens EcoTech | |
| Ecological footprint | ||
| environmental product declaration | Yes | |
| Global warming potential | ||
| global warming potential, (total) [CO2 eq] | 38.6 kg | |
| global warming potential, (during production) [CO2 eq] | 14.4 kg | |
| global warming potential, (during operation) [CO2 eq] | 24.6 kg | |
| global warming potential, (after end of life cycle) [CO2 eq] | -0.44 kg | |
| product functions / security / header | ||
| signed firmware update | No | |
| data integrity | No | |
| Ambient conditions | ||
| Ambient temperature during operation | ||
| horizontal installation, min. | -30 °C | |
| horizontal installation, max. | 60 °C | |
| vertical | ||
