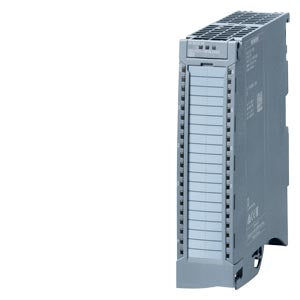

SIMATIC S7-1500 AI 8xU/I HF
| General information | ||
| Product type designation | AI 8xU/I HF | |
| HW functional status | from FS01 | |
| Firmware version | V1.1.0 | |
| FW update possible | Yes | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Isochronous mode | No | |
| Prioritized startup | Yes | |
| Measuring range scalable | No | |
| Scalable measured values | Yes | |
| Adjustment of measuring range | Yes | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V14 / - | |
| STEP 7 configurable/integrated from version | V5.5 SP3 / - | |
| PROFIBUS from GSD version/GSD revision | V1.0 / V5.1 | |
| PROFINET from GSD version/GSD revision | V2.3 / - | |
| Operating mode | ||
| Oversampling | No | |
| MSI | Yes | |
| CiR - Configuration in RUN | ||
| Reparameterization possible in RUN | Yes | |
| Calibration possible in RUN | Yes | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Input current | ||
| Current consumption, max. | 50 mA; with 24 V DC supply | |
| Power | ||
| Power consumption from the backplane bus | 0.85 W | |
| Power loss | ||
| Power loss, typ. | 1.9 W | |
| Analog inputs | ||
| Number of analog inputs | 8 | |
| For current measurement | 8 | |
| For voltage measurement | 8 | |
| permissible input voltage for voltage input (destruction limit), max. | 28.8 V | |
| permissible input current for current input (destruction limit), max. | 40 mA | |
| Input ranges (rated values), voltages | ||
| 0 to +5 V | No | |
| 0 to +10 V | No | |
| 1 V to 5 V | Yes | |
| Input resistance (1 V to 5 V) | 100 k¦ | |
| -10 V to +10 V | Yes | |
| Input resistance (-10 V to +10 V) | 100 k¦ | |
| -2.5 V to +2.5 V | Yes | |
| Input resistance (-2.5 V to +2.5 V) | 100 k¦ | |
| -25 mV to +25 mV | No | |
| -250 mV to +250 mV | No | |
| -5 V to +5 V | Yes | |
| Input resistance (-5 V to +5 V) | 100 k¦ | |
| -50 mV to +50 mV | No | |
| -500 mV to +500 mV | No | |
| -80 mV to +80 mV | No | |
| Input ranges (rated values), currents | ||
| 0 to 20 mA | Yes | |
| Input resistance (0 to 20 mA) | 25 ¦; Plus approx. 42 ohms for overvoltage protection by PTC | |
| -20 mA to +20 mA | Yes | |
| Input resistance (-20 mA to +20 mA) | 25 ¦; Plus approx. 42 ohms for overvoltage protection by PTC | |
| 4 mA to 20 mA | Yes | |
| Input resistance (4 mA to 20 mA) | 25 ¦; Plus approx. 42 ohms for overvoltage protection by PTC | |
| Input ranges (rated values), thermocouples | ||
| Type B | No | |
| Type C | No | |
| Type E | No | |
| Type J | No | |
| Type K | No | |
| Type L | No | |
| Type N | No | |
| Type R | No | |
| Type S | No | |
| Type T | No | |
| Type TXK/TXK(L) to GOST | No | |
| Input ranges (rated values), resistance thermometer | ||
| Cu 10 | No | |
| Cu 10 according to GOST | No | |
| Cu 50 | No | |
| Cu 50 according to GOST | No | |
| Cu 100 | No | |
| Cu 100 according to GOST | No | |
| Ni 10 | No | |
| Ni 10 according to GOST | No | |
| Ni 100 | No | |
| Ni 100 according to GOST | No | |
| Ni 1000 | No | |
| Ni 1000 according to GOST | No | |
| LG-Ni 1000 | No | |
| Ni 120 | No | |
| Ni 120 according to GOST | No | |
| Ni 200 | No | |
| Ni 200 according to GOST | No | |
| Ni 500 | No | |
| Ni 500 according to GOST | No | |
| Pt 10 | No | |
| Pt 10 according to GOST | No | |
| Pt 50 | No | |
| Pt 50 according to GOST | No | |
| Pt 100 | No | |
| Pt 100 according to GOST | No | |
| Pt 1000 | No | |
| Pt 1000 according to GOST | No | |
| Pt 200 | No | |
| Pt 200 according to GOST | No | |
| Pt 500 | No | |
| Pt 500 according to GOST | No | |
| Input ranges (rated values), resistors | ||
| 0 to 150 ohms | No | |
| 0 to 300 ohms | No | |
| 0 to 600 ohms | No | |
| 0 to 3000 ohms | No | |
| 0 to 6000 ohms | No | |
| PTC | No | |
| Cable length | ||
| shielded, max. | 800 m | |
| Analog value generation for the inputs | ||
| Integration and conversion time/resolution per channel | ||
| Resolution with overrange (bit including sign), max. | 24 bit; When using the function "Scaling of the measured values" or "Measuring range adaptation" (32 bit REAL format); 16 bit when using the S7 format (16 bit INTEGER) | |
| Integration time, parameterizable | Yes | |
| Integration time (ms) | Fast mode | |
