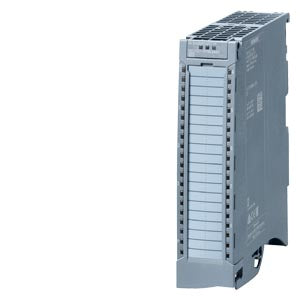

Siemens - 6ES7531-7PF00-0AB0
Siemens - 6ES7531-7PF00-0AB0
Regular price
€537,38 EUR
Regular price
Sale price
€537,38 EUR
Couldn't load pickup availability
Low stock: 8 left
SIMATIC S7-1500 AI 8xU/R/RTD/TC HF
| General information | ||
| Product type designation | AI 8xU/R/RTD/TC HF | |
| HW functional status | from FS01 | |
| Firmware version | V1.1.0 | |
| FW update possible | Yes | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Isochronous mode | No | |
| Prioritized startup | Yes | |
| Measuring range scalable | Yes | |
| Scalable measured values | No | |
| Adjustment of measuring range | No | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V14 / - | |
| STEP 7 configurable/integrated from version | V5.5 SP3 / - | |
| PROFIBUS from GSD version/GSD revision | V1.0 / V5.1 | |
| PROFINET from GSD version/GSD revision | V2.3 / - | |
| Operating mode | ||
| Oversampling | No | |
| MSI | Yes | |
| CiR - Configuration in RUN | ||
| Reparameterization possible in RUN | Yes | |
| Calibration possible in RUN | Yes | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Input current | ||
| Current consumption, max. | 55 mA; with 24 V DC supply | |
| Power | ||
| Power consumption from the backplane bus | 0.85 W | |
| Power loss | ||
| Power loss, typ. | 1.9 W | |
| Analog inputs | ||
| Number of analog inputs | 8; Plus one additional RTD (reference) channel | |
| For voltage measurement | 8; Plus one additional RTD (reference) channel | |
| For resistance/resistance thermometer measurement | 8; Plus one additional RTD (reference) channel | |
| For thermocouple measurement | 8; Plus one additional RTD (reference) channel | |
| permissible input voltage for voltage input (destruction limit), max. | 20 V | |
| Constant measurement current for resistance-type transmitter, typ. | 150 Ohm, 300 Ohm, 600 Ohm, Cu10, Cu50, Cu100, Ni10, Ni100, Ni120, Ni200, Pt10, Pt50, Pt100, Pt200 climate: 1 mA; 6 kOhm, Ni500, Ni1000, LG-Ni1000, Pt200 standard, Pt500, Pt1000, PTC: 0.25 mA | |
| Technical unit for temperature measurement adjustable | Yes; °C/°F/K | |
| Input ranges (rated values), voltages | ||
| 0 to +5 V | No | |
| 0 to +10 V | No | |
| 1 V to 5 V | No | |
| -1 V to +1 V | Yes | |
| Input resistance (-1 V to +1 V) | 10 M¦ | |
| -10 V to +10 V | No | |
| -2.5 V to +2.5 V | No | |
| -25 mV to +25 mV | Yes | |
| Input resistance (-25 mV to +25 mV) | 10 M¦ | |
| -250 mV to +250 mV | Yes | |
| Input resistance (-250 mV to +250 mV) | 10 M¦ | |
| -5 V to +5 V | No | |
| -50 mV to +50 mV | Yes | |
| Input resistance (-50 mV to +50 mV) | 10 M¦ | |
| -500 mV to +500 mV | Yes | |
| Input resistance (-500 mV to +500 mV) | 10 M¦ | |
| -80 mV to +80 mV | Yes | |
| Input resistance (-80 mV to +80 mV) | 10 M¦ | |
| Input ranges (rated values), currents | ||
| 0 to 20 mA | No | |
| -20 mA to +20 mA | No | |
| 4 mA to 20 mA | No | |
| Input ranges (rated values), thermocouples | ||
| Type B | Yes | |
| Input resistance (Type B) | 10 M¦ | |
| Type C | Yes | |
| Input resistance (Type C) | 10 M¦ | |
| Type E | Yes | |
| Input resistance (Type E) | 10 M¦ | |
| Type J | Yes | |
| Input resistance (type J) | 10 M¦ | |
| Type K | Yes | |
| Input resistance (Type K) | 10 M¦ | |
| Type L | No | |
| Type N | Yes | |
| Input resistance (Type N) | 10 M¦ | |
| Type R | Yes | |
| Input resistance (Type R) | 10 M¦ | |
| Type S | Yes | |
| Input resistance (Type S) | 10 M¦ | |
| Type T | Yes | |
| Input resistance (Type T) | 10 M¦ | |
| Type TXK/TXK(L) to GOST | Yes | |
| Input resistance (Type TXK/TXK(L) to GOST) | 10 M¦ | |
| Input ranges (rated values), resistance thermometer | ||
| Cu 10 | Yes; Standard/climate | |
| Input resistance (Cu 10) | 10 M¦ | |
| Cu 10 according to GOST | Yes; Standard/climate | |
| Input resistance (Cu 10 according to GOST) | 10 M¦ | |
| Cu 50 | Yes; Standard/climate | |
| Input resistance (Cu 50) | 10 M¦ | |
| Cu 50 according to GOST | Yes; Standard/climate | |
| Input resistance (Cu 50 according to GOST) | 10 M¦ | |
| Cu 100 | Yes; Standard/climate | |
| Input resistance (Cu 100) | 10 M¦ | |
| Cu 100 according to GOST | Yes; Standard/climate | |
| Input resistance (Cu 100 according to GOST) | 10 M¦ | |
| Ni 10 | Yes; Standard/climate | |
| Input resistance (Ni 10) | 10 M¦ | |
| Ni 10 according to GOST | Yes; Standard/climate | |
| Input resistance (Ni 10 according to GOST) | 10 M¦ | |
| Ni 100 | Yes; Standard/climate | |
| Input resistance (Ni 100) | 10 M¦ | |
| Ni 100 according to GOST | Yes; Standard/climate | |
| Input resistance (Ni 100 according to GOST) | 10 M¦ | |
| Ni 1000 | Yes; Standard/climate | |
| Input resistance (Ni 1000) | 10 M¦ | |
| Ni 1000 according to GOST | Yes; Standard/climate | |
| Input resistance (Ni 1000 according to GOST) | 10 M¦ | |
| LG-Ni 1000 | Yes; Standard/climate | |
| Input resistance (LG-Ni 1000) | 10 M¦ | |
| Ni 120 | Yes; Standard/climate | |
| Input resistance (Ni 120) | 10 M¦ | |
| Ni 120 according to GOST | Yes; Standard/climate | |
