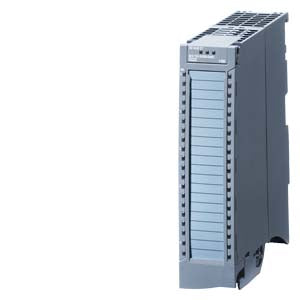

SIMATIC S7-1500 AQ 4xU/I ST
| General information | ||
| Product type designation | AQ 4xU/I ST | |
| HW functional status | from FS04 | |
| Firmware version | V2.2.0 | |
| FW update possible | Yes | |
| Product function | ||
| I&M data | Yes; I&M0 to I&M3 | |
| Isochronous mode | No | |
| Prioritized startup | No | |
| Output range scalable | No | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V12 / V12 | |
| STEP 7 configurable/integrated from version | V5.5 SP3 / - | |
| PROFIBUS from GSD version/GSD revision | V1.0 / V5.1 | |
| PROFINET from GSD version/GSD revision | V2.3 / - | |
| Operating mode | ||
| Oversampling | No | |
| MSO | Yes | |
| CiR - Configuration in RUN | ||
| Reparameterization possible in RUN | Yes | |
| Calibration possible in RUN | Yes | |
| Supply voltage | ||
| Rated value (DC) | 24 V | |
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Input current | ||
| Current consumption, max. | 190 mA; with 24 V DC supply | |
| Power | ||
| Power consumption from the backplane bus | 0.6 W | |
| Power loss | ||
| Power loss, typ. | 4 W | |
| Analog outputs | ||
| Number of analog outputs | 4 | |
| Voltage output, short-circuit protection | Yes | |
| Voltage output, short-circuit current, max. | 24 mA | |
| Current output, no-load voltage, max. | 22 V | |
| Cycle time (all channels), min. | 3.2 ms; independent of number of activated channels | |
| Output ranges, voltage | ||
| 0 to 10 V | Yes | |
| 1 V to 5 V | Yes | |
| -5 V to +5 V | No | |
| -10 V to +10 V | Yes | |
| Output ranges, current | ||
| 0 to 20 mA | Yes | |
| -20 mA to +20 mA | Yes | |
| 4 mA to 20 mA | Yes | |
| Connection of actuators | ||
| for voltage output two-wire connection | Yes | |
| for voltage output four-wire connection | Yes | |
| for current output two-wire connection | Yes | |
| Load impedance (in rated range of output) | ||
| with voltage outputs, min. | 1 k¦; 0.5 kOhm at 1 to 5 V | |
| with voltage outputs, capacitive load, max. | 1 µF | |
| with current outputs, max. | 750 ¦ | |
| with current outputs, inductive load, max. | 10 mH | |
| Cable length | ||
| shielded, max. | 800 m; for current, 200 m for voltage | |
| Analog value generation for the outputs | ||
| Integration and conversion time/resolution per channel | ||
| Resolution with overrange (bit including sign), max. | 16 bit | |
| Conversion time (per channel) | 0.5 ms | |
| Settling time | ||
| for resistive load | 1.5 ms | |
| for capacitive load | 2.5 ms | |
| for inductive load | 2.5 ms | |
| Errors/accuracies | ||
| Output ripple (relative to output range, bandwidth 0 to 50 kHz), (+/-) | 0.02 % | |
| Linearity error (relative to output range), (+/-) | 0.15 % | |
| Temperature error (relative to output range), (+/-) | 0.002 %/K | |
| Crosstalk between the outputs, max. | -100 dB | |
| Repeat accuracy in steady state at 25 °C (relative to output range), (+/-) | 0.05 % | |
| note regarding accuracy | at temperatures below 0 °C, the figures for operating error and temperature error are doubled | |
| Operational error limit in overall temperature range | ||
| Voltage, relative to output range, (+/-) | 0.3 % | |
| Current, relative to output range, (+/-) | 0.3 % | |
| Basic error limit (operational limit at 25 °C) | ||
| Voltage, relative to output range, (+/-) | 0.2 % | |
| Current, relative to output range, (+/-) | 0.2 % | |
| Interrupts/diagnostics/status information | ||
| Diagnostics function | Yes | |
| Substitute values connectable | Yes | |
| Alarms | ||
| Diagnostic alarm | Yes | |
| Diagnoses | ||
| Monitoring the supply voltage | Yes | |
| Wire-break | Yes; Only for output type "current" | |
| Short-circuit | Yes; Only for output type "voltage" | |
| Overflow/underflow | Yes | |
| Diagnostics indication LED | ||
| RUN LED | Yes; green LED | |
| ERROR LED | Yes; red LED | |
| Monitoring of the supply voltage (PWR-LED) | Yes; green LED | |
| Channel status display | Yes; green LED | |
| for channel diagnostics | Yes; red LED | |
| for module diagnostics | Yes; red LED | |
| Potential separation | ||
| Potential separation channels | ||
| between the channels | No | |
| between the channels, in groups of | 4 | |
| between the channels and backplane bus | Yes | |
| Between the channels and load voltage L+ | Yes | |
| Permissible potential difference | ||
| between S- and MANA (UCM) | 8 V DC | |
| Isolation | ||
| Isolation tested with | 707 V DC (type test) | |
| Standards, approvals, certificates | ||
| Siemens Eco Profile (SEP) | Siemens EcoTech | |
| Suitable for safety-related tripping of standard modules | Yes; From FS05 | |
| Ecological footprint | ||
| environmental product declaration | Yes | |
| Global warming potential | ||
| global warming potential, (total) [CO2 eq] | 37.6 kg | |
| global warming potential, (during production) [CO2 eq] | 11.1 kg | |
| global warming potential, (during operation) [CO2 eq] | 26.8 kg | |
| global warming potential, (after end of life cycle) [CO2 eq] | -0.364 kg | |
| Highest safety class achievable for safety-related tripping of standard modules | ||
| Performance level according to ISO 13849-1 | PL d | |
| Category according to ISO 13849-1 | Cat. 3 | |
| SIL acc. to IEC 62061 | SIL 2 | |
| remark on safety-oriented shutdown | ||
