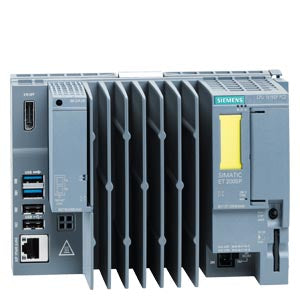

SIMATIC ET 200SP CPU 1515SP PC2 F
| General information | ||
| Product type designation | CPU 1515SP PC2 F | |
| HW functional status | from FS04 | |
| Firmware version | V20.8 | |
| Engineering with | ||
| STEP 7 TIA Portal configurable/integrated from version | V16 | |
| Installed software | ||
| Visualization | No | |
| Control | S7-1500 Software Controller CPU 1505SP F | |
| Configuration control | ||
| via dataset | Yes | |
| Control elements | ||
| Mode selector switch | 1 | |
| Supply voltage | ||
| permissible range, lower limit (DC) | 19.2 V | |
| permissible range, upper limit (DC) | 28.8 V | |
| Reverse polarity protection | Yes | |
| Mains buffering | ||
| Mains/voltage failure stored energy time | 5 ms | |
| Input current | ||
| Current consumption (rated value) | 1.8 A; Full processor load, incl. ET 200SP modules and using USB | |
| Current consumption (in no-load operation), typ. | 0.5 A | |
| Current consumption, max. | 2.9 A | |
| I²t | 0.426 A²·s; with starting current inrush | |
| Power | ||
| Active power input, max. | 55 W; incl. ET 200SP modules and using USB | |
| Infeed power to the backplane bus | 8.75 W | |
| Power loss | ||
| Power loss, typ. | 15 W; without ET 200SP modules and without using USB | |
| Processor | ||
| Processor type | Intel Atom E3940, 1.6 GHz, 4 cores | |
| Memory | ||
| Type of memory | DDR3L | |
| Main memory | 8 GB RAM | |
| CFast memory card | Yes; 128 GB flash memory | |
| SIMATIC memory card required | No | |
| Work memory | ||
| integrated (for program) | 1.5 Mbyte | |
| integrated (for data) | 5 Mbyte | |
| integrated (for CPU function library of CPU Runtime) | 20 Mbyte | |
| Load memory | ||
| integrated (on PC mass storage) | 320 Mbyte | |
| Backup | ||
| with UPS | Yes; all memory areas declared retentive | |
| with non-volatile memory | Yes | |
| CPU-blocks | ||
| Number of elements (total) | 6 000; In addition to blocks such as DBs, FBs and FCs, UDTs, global constants, etc. are also regarded as elements | |
| DB | ||
| Number, max. | 5 999; Number range: 1 to 65535 | |
| Size, max. | 5 Mbyte | |
| FB | ||
| Number, max. | 5 998; Number range: 1 to 65535 | |
| Size, max. | 1 024 kbyte | |
| FC | ||
| Number, max. | 5 999; Number range: 1 to 65535 | |
| Size, max. | 1 024 kbyte | |
| OB | ||
| Size, max. | 1 048 kbyte | |
| Number of free cycle OBs | 100 | |
| Number of time alarm OBs | 20 | |
| Number of delay alarm OBs | 20 | |
| Number of cyclic interrupt OBs | 20 | |
| Number of process alarm OBs | 50 | |
| Number of DPV1 alarm OBs | 3 | |
| Number of isochronous mode OBs | 1 | |
| Number of technology synchronous alarm OBs | 2 | |
| Number of startup OBs | 100 | |
| Number of asynchronous error OBs | 4 | |
| Number of synchronous error OBs | 2 | |
| Number of diagnostic alarm OBs | 1 | |
| Nesting depth | ||
| per priority class | 24; Up to 8 possible for F-blocks | |
| Counters, timers and their retentivity | ||
| S7 counter | ||
| Number | 2 048 | |
| Retentivity | ||
| adjustable | Yes | |
| IEC counter | ||
| Number | Any (only limited by the main memory) | |
| Retentivity | ||
| adjustable | Yes | |
| S7 times | ||
| Number | 2 048 | |
| Retentivity | ||
| adjustable | Yes | |
| IEC timer | ||
| Number | Any (only limited by the main memory) | |
| Retentivity | ||
| adjustable | Yes | |
| Data areas and their retentivity | ||
| Retentive data area (incl. timers, counters, flags), max. | 410 kbyte; For storage in NVRAM; for storage in mass storage 5 242 020 bytes | |
| Flag | ||
| Size, max. | 16 kbyte | |
| Number of clock memories | 8; 8 clock memory bit, grouped into one clock memory byte | |
| Data blocks | ||
| Retentivity adjustable | Yes | |
| Retentivity preset | No | |
| Local data | ||
| per priority class, max. | 64 kbyte; max. 16 KB per block | |
| Address area | ||
| Number of IO modules | 8 192 | |
| I/O address area | ||
| Inputs | 32 kbyte; All inputs are in the process image | |
| Outputs | 32 kbyte; All outputs are in the process image | |
| of which per assigned PC interface | ||
| Inputs (volume) | 8 kbyte | |
| Outputs (volume) | 8 kbyte | |
| Subprocess images | ||
| Number of subprocess images, max. | 32 | |
| Hardware configuration | ||
| Integrated power supply | Yes | |
| Number of distributed IO systems | 20 | |
| Number of DP masters | ||
| Via CM | 1 | |
| Rack | ||
| Modules per rack, max. | 64; CPU 1515SP PC + 64 modules + server module | |
| Quantity of operable ET 200SP modules, max. | 64 | |
| Quantity of operable ET 200AL modules, max. | 16 | |
| Number of lines, max. | 1 | |
| PtP CM | ||
| Number of PtP CMs | the number of connectable PtP CMs is only limited by the number of available slots | |
| Time of day | ||
| Clock | ||
| Type | Hardware clock | |
| Hardware clock (real-time) | Yes; Resolution: 1 s | |
| Backup time | ||
