Siemens - 6ES7972-0BA42-0XA0

Siemens - 6ES7972-0BA42-0XA0

€25,47 EUR
€25,47 EUR
Sale Sold out

Low stock: 2 left

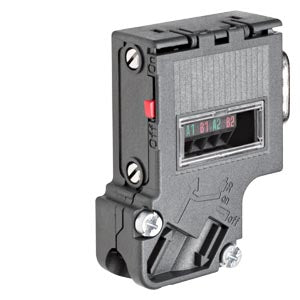

PROFIBUS Busconnector 12MBit/s inclined cable outlet

product type designation PROFIBUS connector
product description PROFIBUS bus connector, RS 485, screw, without programming port, 35°
suitability for use for connecting PROFIBUS stations to the PROFIBUS bus cable
transfer rate
transfer rate / with PROFIBUS DP 9.6 kbit/s ... 12 Mbit/s
interfaces
number of electrical connections
for PROFIBUS cables 2
for network components or terminal equipment 1
type of electrical connection
for PROFIBUS cables Screw
for network components or terminal equipment 9-pin sub D connector
type of electrical connection / FastConnect No
mechanical data
design of terminating resistor Resistor combination integrated and connectable via slide switch
material / of the enclosure plastic
locking mechanism design Screwed joint
design, dimensions and weights
type of cable outlet 35 degree cable outlet
width 15.8 mm
height 54 mm
depth 39.5 mm
net weight 29 g
ambient conditions
ambient temperature
during operation -25 ... +60 °C
during storage -40 ... +70 °C
during transport -40 ... +70 °C
protection class IP IP20
product features, product functions, product components / general
product feature
silicon-free Yes
product component
PG connection socket No
strain relief Yes
standards, specifications, approvals
certificate of suitability
RoHS conformity Yes
UL approval Yes
reference code
according to IEC 81346-2 XG
according to IEC 81346-2:2019 XGA
further information / internet links
internet link
to website: Selection guide for cables and connectors https://support.industry.siemens.com/cs/ww/en/view/109766358
to web page: selection aid TIA Selection Tool https://www.siemens.com/tstcloud
to website: Industrial communication https://www.siemens.com/simatic-net
to web page: SiePortal https://sieportal.siemens.com
to website: Image database https://www.automation.siemens.com/bilddb
to website: CAx-Download-Manager https://www.siemens.com/cax
to website: Industry Online Support https://support.industry.siemens.com
security information
security information Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement and continuously maintain a holistic, state-of-the-art industrial cybersecurity concept. Siemens products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
