Siemens - 6GK1500-0FC10
Siemens - 6GK1500-0FC10
Regular price
€34,12 EUR
Regular price
Sale price
€34,12 EUR
Couldn't load pickup availability
22 in stock

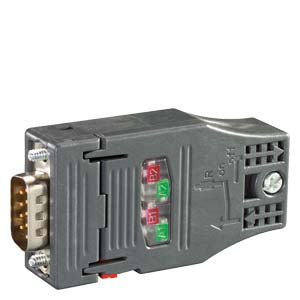

PROFIBUS FC RS 485 Plug 180°
| product type designation | PROFIBUS FC bus connector RS 485 | |
| product description | Bus connector with axial cable outlet (180°) | |
| suitability for use | For connecting PROFIBUS nodes to the PROFIBUS bus cable | |
| transfer rate | ||
| transfer rate / with PROFIBUS | 9.6 kbit/s ... 12 Mbit/s | |
| interfaces | ||
| number of electrical connections | ||
| for PROFIBUS cables | 2 | |
| for network components or terminal equipment | 1 | |
| type of electrical connection | ||
| for PROFIBUS cables | Integrated insulation displacement terminals for 2-core PB FC installation cables | |
| for network components or terminal equipment | Sub-D connector (9-pin) | |
| type of electrical connection / FastConnect | Yes | |
| mechanical data | ||
| design of terminating resistor | Integrated resistor combination that can be selected with slide switch. Disconnect function: When the resistor is connected, the outgoing bus is isolated. | |
| material / of the enclosure | plastic | |
| locking mechanism design | Screwed joint | |
| design, dimensions and weights | ||
| type of cable outlet | 180° cable outlet | |
| width | 16 mm | |
| height | 62 mm | |
| depth | 34.5 mm | |
| net weight | 40 g | |
| ambient conditions | ||
| ambient temperature | ||
| during operation | -40 ... +70 °C | |
| during storage | -25 ... +80 °C | |
| during transport | -25 ... +80 °C | |
| relative humidity | ||
| at 25 °C / without condensation / during operation / maximum | 75 % | |
| protection class IP | IP20 | |
| product features, product functions, product components / general | ||
| product feature | ||
| silicon-free | Yes | |
| product component | ||
| PG connection socket | No | |
| strain relief | Yes | |
| standards, specifications, approvals | ||
| certificate of suitability | ||
| RoHS conformity | Yes | |
| UL approval | Yes | |
| cULus approval | Yes | |
| railway application in accordance with EN 50155 | No | |
| reference code | ||
| according to IEC 81346-2:2019 | XHA | |
| standards, specifications, approvals / Environmental Product Declaration | ||
| Environmental Product Declaration | Yes | |
| global warming potential [CO2 eq] | ||
| total | 0.73 kg | |
| during manufacturing | 0.44 kg | |
| during operation | 0.24 kg | |
| after end of life | 0.05 kg | |
| further information / internet links | ||
| internet link | ||
| to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 | |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud | |
| to website: Industrial communication | https://www.siemens.com/simatic-net | |
| to web page: SiePortal | https://sieportal.siemens.com | |
| to website: Image database | https://www.automation.siemens.com/bilddb | |
| to website: CAx-Download-Manager | https://www.siemens.com/cax | |
| to website: Industry Online Support | https://support.industry.siemens.com | |
| security information | ||
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement and continuously maintain a holistic, state-of-the-art industrial cybersecurity concept. Siemens products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) | |
| Approvals / Certificates | ||
