Siemens - 6GK1503-2CB00
Siemens - 6GK1503-2CB00
Regular price
€431,20 EUR
Regular price
Sale price
€431,20 EUR
Couldn't load pickup availability
Low stock: 1 left

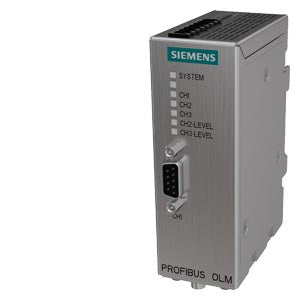

PROFIBUS OLM/G11 V4.0
| product type designation | PROFIBUS OLM/G11 V4.0 | |
| transfer rate | ||
| transfer rate / with PROFIBUS | 9.6 kbit/s ... 12 Mbit/s | |
| transfer rate / with PROFIBUS PA | 45.45 kbit/s | |
| interfaces | ||
| number of electrical/optical connections / for network components or terminal equipment / maximum | 2 | |
| number of electrical connections | ||
| for network components or terminal equipment | 1 | |
| for measuring device | 1 | |
| for signaling contact | 1 | |
| for power supply | 1 | |
| for redundant voltage supply | 1 | |
| type of electrical connection | ||
| for network components or terminal equipment | 9-pin Sub-D socket | |
| for measuring device | 2-pole terminal block | |
| for power supply and signaling contact | 5-pole terminal block | |
| number of optical interfaces / for fiber optic cable | 1 | |
| design of the optical interface / for fiber optic cable | BFOC port | |
| optical data | ||
| attenuation factor / of the FOC transmission link | ||
| for glass FOC with 50/125 µm / at 3 dB/km / maximum | 10 dB | |
| for glass FOC with 62.5/125 µm / at 3.5 dB/km / maximum | 12 dB | |
| propagation delay [bit] | 6.5 bit | |
| connectable optical power relative to 1 mW | ||
| for glass FOC with 50/125 µm / at 3 dB/km | -16 dB | |
| for glass FOC with 62.5/125 µm / at 3.5 dB/km | -13 dB | |
| optical sensitivity relating to 1 mW | ||
| for glass FOC with 50/125 µm / at 3 dB/km | -28 dB | |
| for glass FOC with 62.5/125 µm / at 3.5 dB/km | -28 dB | |
| wavelength / of the optical interface / note | 860 nm, multimode | |
| wire length | ||
| for glass FOC with 50/125 µm / at 3 dB/km / maximum | 3 km | |
| for glass FOC with 62.5/125 µm / at 3.5 dB/km / maximum | 3 km | |
| signal inputs/outputs | ||
| operating voltage / of the signaling contacts / at DC / rated value | 24 V | |
| operational current / of the signaling contacts / at DC / maximum | 0.1 A | |
| supply voltage, current consumption, power loss | ||
| type of voltage / of the supply voltage | DC | |
| supply voltage / at DC / rated value | 24 V | |
| supply voltage / at DC | 18.8 ... 28.8 V | |
| product component / fusing at power supply input | Yes | |
| consumed current / at DC / at 24 V / maximum | 0.2 A | |
| ambient conditions | ||
| ambient temperature | ||
| during operation | 0 ... 60 °C | |
| during storage | -40 ... +70 °C | |
| during transport | -40 ... +70 °C | |
| relative humidity | ||
| at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP40 | |
| design, dimensions and weights | ||
| design | compact | |
| width | 39.5 mm | |
| height | 112 mm | |
| depth | 74.5 mm | |
| net weight | 340 g | |
| fastening method | ||
| 35 mm DIN-rail mounting | Yes | |
| wall mounting | Yes | |
| product functions / redundancy | ||
| product function / ring redundancy | Yes | |
| standards, specifications, approvals | ||
| standard | ||
| for safety / from CSA and UL | UL 60950-1, CSA C22.2 Nr. 60950-1 | |
| for emitted interference | EN 61000-6-4 (Class A) | |
| for interference immunity | EN 61000-6-2 | |
| certificate of suitability | EN 61000-6-2, EN 61000-6-4 | |
| CE marking | Yes | |
| C-Tick | Yes | |
| Marine classification association | ||
| American Bureau of Shipping Europe Ltd. (ABS) | Yes | |
| French marine classification society (BV) | Yes | |
| Det Norske Veritas (DNV) | Yes | |
| Germanische Lloyd (GL) | Yes | |
| Lloyds Register of Shipping (LRS) | Yes | |
| Nippon Kaiji Kyokai (NK) | Yes | |
| reference code | ||
| according to IEC 81346-2:2019 | KGC | |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 | |
| standards, specifications, approvals / hazardous environments | ||
| certificate of suitability / CCC / for hazardous zone according to GB standard | No | |
| standards, specifications, approvals / Environmental Product Declaration | ||
| Environmental Product Declaration | Yes | |
| global warming potential [CO2 eq] | ||
| total | 165.41 kg | |
| during manufacturing | 15.09 kg | |
| during operation | 150.26 kg | |
| after end of life | 0.06 kg | |
| further information / internet links | ||
| internet link | ||
| to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 | |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud | |
| to website: Industrial communication | https://siemens.com/industrial-communication | |
| to web page: SiePortal | https://sieportal.siemens.com/ | |
| to website: Image database | https://www.automation.siemens.com/bilddb | |
| to website: CAx-Download-Manager | https://www.siemens.com/cax | |
| to website: Industry Online Support | https://support.industry.siemens.com | |
| security information | ||
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement and continuously maintain a holistic, state-of-the-art industrial cybersecurity concept. Siemens products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) | |
| Approvals / Certificates | ||
