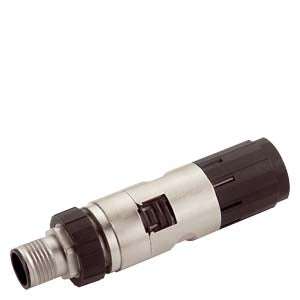

Siemens - 6GK1901-0DB20-6AA0
Siemens - 6GK1901-0DB20-6AA0
Regular price
€20,91 EUR
Regular price
Sale price
€20,91 EUR
Couldn't load pickup availability
142 in stock
IE FastConnect M12 Plug PRO 2x 2 M12
| product type designation | IE FC M12 Plug PRO (PROFINET) | |
| product description | M12 connector with high protection, 4-pole, D-coded | |
| suitability for use | For connecting electrical cables to SCALANCE X208PRO, ET200 PRO PN or ET200 eco PN for fast assembly with the FastConnect system | |
| transfer rate | ||
| transfer rate / for Industrial Ethernet | 10, 100 Mbit/s | |
| interfaces | ||
| number of electrical connections | ||
| for Industrial Ethernet FC TP cables | 4 | |
| for network components or terminal equipment | 1 | |
| type of electrical connection | ||
| for Industrial Ethernet FC TP cables | integrated cut-and-clamp contacts for 4-wire TP FC installation cable AWG22 | |
| for network components or terminal equipment | M12 plug (D-coded, male) | |
| type of electrical connection / FastConnect | Yes | |
| mechanical data | ||
| material / of the enclosure | metal | |
| number of reuses | 10 | |
| locking mechanism design | Screwed joint | |
| tightening torque / for M12 round connector / maximum | 0.6 N·m | |
| connector coding / of the M12 circular connector | D | |
| design, dimensions and weights | ||
| type of cable outlet | 180° cable outlet | |
| width | 19 mm | |
| height | 19 mm | |
| depth | 73 mm | |
| net weight | 40 g | |
| connectable cable cross-section | 6.5 ... 6.5 mm | |
| connectable conductor cross-section | 0.33 mm² | |
| ambient conditions | ||
| ambient temperature | ||
| during operation | -40 ... +85 °C | |
| during storage | -40 ... +85 °C | |
| during transport | -40 ... +85 °C | |
| relative humidity | ||
| at 25 °C / without condensation / during operation / maximum | 95 % | |
| chemical resistance | ||
| to water | resistant | |
| protection class IP | IP65/67 | |
| product features, product functions, product components / general | ||
| product feature | ||
| PoE capability | Yes | |
| PoE+ capability | Yes | |
| silicon-free | Yes | |
| product component | ||
| strain relief | Yes | |
| standards, specifications, approvals | ||
| certificate of suitability | ||
| RoHS conformity | Yes | |
| UL approval | Yes | |
| cULus approval | Yes | |
| railway application in accordance with EN 50155 | No | |
| standard for structured cabling | Cat5 | |
| reference code | ||
| according to IEC 81346-2:2019 | XGA | |
| standards, specifications, approvals / Environmental Product Declaration | ||
| Environmental Product Declaration | Yes | |
| global warming potential [CO2 eq] | ||
| total | 0.32 kg | |
| during manufacturing | 0.28 kg | |
| during operation | 0.01 kg | |
| after end of life | 0.03 kg | |
| further information / internet links | ||
| internet link | ||
| to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 | |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud | |
| to website: Industrial communication | https://www.siemens.com/simatic-net | |
| to web page: SiePortal | https://sieportal.siemens.com | |
| to website: Image database | https://www.automation.siemens.com/bilddb | |
| to website: CAx-Download-Manager | https://www.siemens.com/cax | |
| to website: Industry Online Support | https://support.industry.siemens.com | |
| security information | ||
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement and continuously maintain a holistic, state-of-the-art industrial cybersecurity concept. Siemens products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) | |
| Approvals / Certificates | ||
