Siemens - 6GK1905-0EB10
Siemens - 6GK1905-0EB10
Regular price
€78,56 EUR
Regular price
Sale price
€78,56 EUR
Couldn't load pickup availability
Low stock: 1 left

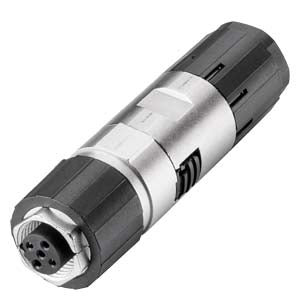

PROFIBUS FastConnect M12 Plug PRO (5er Pack)
| product type designation | PB FC M12 Cable Connector PRO | |
| product description | M12 connector with socket insert, 5-pole, B-coded | |
| suitability for use | For connecting electrical PB FC bus cables to ET200 PRO, suitable for fast assembly with the FastConnect system | |
| transfer rate | ||
| transfer rate / with PROFIBUS | 9.6 kbit/s ... 12 Mbit/s | |
| interfaces | ||
| number of electrical connections | ||
| for PROFIBUS cables | 1 | |
| for network components or terminal equipment | 1 | |
| type of electrical connection | ||
| for PROFIBUS cables | Integrated insulation displacement terminals for 2-core PB FC installation cables | |
| for network components or terminal equipment | M12 connector (female insert, 5-pin, B-coded) | |
| type of electrical connection / FastConnect | Yes | |
| mechanical data | ||
| material / of the enclosure | metal | |
| number of reuses | 10 | |
| locking mechanism design | Screwed joint | |
| tightening torque / for M12 round connector / maximum | 0.6 N·m | |
| connector coding / of the M12 circular connector | B | |
| design, dimensions and weights | ||
| type of cable outlet | 180° cable outlet | |
| width | 19 mm | |
| height | 19 mm | |
| depth | 73 mm | |
| net weight | 40 g | |
| connectable cable cross-section | 6 ... 8 mm | |
| connectable conductor cross-section | 0.33 mm² | |
| ambient conditions | ||
| ambient temperature | ||
| during operation | -40 ... +85 °C | |
| during storage | -40 ... +85 °C | |
| during transport | -40 ... +85 °C | |
| chemical resistance | ||
| to water | resistant | |
| protection class IP | IP65/67 | |
| product features, product functions, product components / general | ||
| product feature | ||
| silicon-free | Yes | |
| product component | ||
| strain relief | Yes | |
| standards, specifications, approvals | ||
| certificate of suitability | ||
| RoHS conformity | Yes | |
| UL approval | Yes | |
| cULus approval | Yes | |
| railway application in accordance with EN 50155 | No | |
| reference code | ||
| according to IEC 81346-2:2019 | XGA | |
| standards, specifications, approvals / Environmental Product Declaration | ||
| Environmental Product Declaration | Yes | |
| global warming potential [CO2 eq] | ||
| total | 0.32 kg | |
| during manufacturing | 0.28 kg | |
| during operation | 0.01 kg | |
| after end of life | 0.03 kg | |
| further information / internet links | ||
| internet link | ||
| to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 | |
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud | |
| to website: Industrial communication | https://www.siemens.com/simatic-net | |
| to web page: SiePortal | https://sieportal.siemens.com | |
| to website: Image database | https://www.automation.siemens.com/bilddb | |
| to website: CAx-Download-Manager | https://www.siemens.com/cax | |
| to website: Industry Online Support | https://support.industry.siemens.com | |
| security information | ||
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement and continuously maintain a holistic, state-of-the-art industrial cybersecurity concept. Siemens products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) | |
| Approvals / Certificates | ||
