Siemens - 6GK1905-0FA00

Siemens - 6GK1905-0FA00

€70,07 EUR
€70,07 EUR
Sale Sold out

Low stock: 2 left

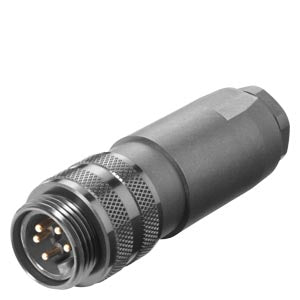

7/8" Anschlußstecker (5er Pack)

product type designation 7/8-inch connector
product description 7/8" connection plug with male contact insert, rated current 9 A, 5-pole
suitability for use For field assembly with ET200
interfaces
number of electrical connections
for network components or terminal equipment 1
type of electrical connection
for PROFIBUS cables Integrated screw contacts for 5-core power cables
for network components or terminal equipment 7/8 inch plug (male insert)
type of electrical connection / FastConnect No
mechanical data
material / of the enclosure metal
locking mechanism design Screwed joint
tightening torque / for M12 round connector / maximum 1.5 N·m
design, dimensions and weights
type of cable outlet 180° cable outlet
width 27 mm
height 27 mm
depth 83 mm
net weight 50 g
connectable cable cross-section 10 ... 12 mm
connectable conductor cross-section 1.5 mm²
ambient conditions
ambient temperature
during operation -40 ... +70 °C
during storage -40 ... +80 °C
during transport -40 ... +80 °C
chemical resistance
to water resistant
protection class IP IP65/67
product features, product functions, product components / general
product feature
silicon-free Yes
product component
strain relief Yes
standards, specifications, approvals
certificate of suitability
RoHS conformity Yes
UL approval No
railway application in accordance with EN 50155 No
reference code
according to IEC 81346-2:2019 XGA
further information / internet links
internet link
to website: Selection guide for cables and connectors https://support.industry.siemens.com/cs/ww/en/view/109766358
to web page: selection aid TIA Selection Tool https://www.siemens.com/tstcloud
to website: Industrial communication https://www.siemens.com/simatic-net
to web page: SiePortal https://sieportal.siemens.com
to website: Image database https://www.automation.siemens.com/bilddb
to website: CAx-Download-Manager https://www.siemens.com/cax
to website: Industry Online Support https://support.industry.siemens.com
security information
security information Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement and continuously maintain a holistic, state-of-the-art industrial cybersecurity concept. Siemens products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
