Siemens - 6GK5204-0BA00-2KB2
Siemens - 6GK5204-0BA00-2KB2
Regular price
€549,78 EUR
Regular price
Sale price
€549,78 EUR
Couldn't load pickup availability
Low stock: 1 left

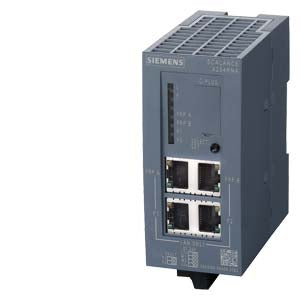

SCALANCE X204RNA
| product type designation | ||
| product brand name | SCALANCE | |
| product type designation | X204RNA | |
| transfer rate | ||
| transfer rate | 10, 100 Mbit/s | |
| interfaces / for communication / integrated | ||
| number of electrical connections | ||
| for network components or terminal equipment | 4 | |
| interfaces / other | ||
| number of electrical connections | ||
| for signaling contact | 1 | |
| for power supply | 1 | |
| type of electrical connection | ||
| for signaling contact | 2-pole terminal block | |
| for power supply | 4-pole terminal block | |
| design of the removable storage | ||
| C-PLUG | Yes | |
| operating voltage / of the signaling contacts | ||
| at DC / rated value | 24 V | |
| operational current / of the signaling contacts | ||
| at DC / maximum | 0.1 A | |
| supply voltage, current consumption, power loss | ||
| product component / connection for redundant voltage supply | Yes | |
| type of voltage / 1 / of the supply voltage | DC | |
| supply voltage / 1 / rated value | 24 V | |
| power loss [W] / 1 / rated value | 3.5 W | |
| supply voltage / 1 / rated value | 19.2 ... 28.8 V | |
| consumed current / 1 / maximum | 0.15 A | |
| type of electrical connection / 1 / for power supply | 4-pole terminal block | |
| product component / 1 / fusing at power supply input | Yes | |
| fuse protection type / 1 / at input for supply voltage | 2.0 A | |
| ambient conditions | ||
| ambient temperature | ||
| during operation | -40 ... +60 °C | |
| during storage | -40 ... +70 °C | |
| during transport | -40 ... +70 °C | |
| relative humidity | ||
| at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
| design, dimensions and weights | ||
| design | compact | |
| width | 45 mm | |
| height | 100 mm | |
| depth | 87 mm | |
| net weight | 0.23 kg | |
| fastening method | ||
| 35 mm DIN-rail mounting | Yes | |
| wall mounting | Yes | |
| S7-300 rail mounting | No | |
| S7-1500 rail mounting | No | |
| product functions / management, configuration, engineering | ||
| product function | ||
| CLI | Yes | |
| web-based management | Yes | |
| MIB support | Yes | |
| TRAPs via email | Yes | |
| configuration with STEP 7 | No | |
| port mirroring | No | |
| multiport mirroring | No | |
| with IRT / PROFINET IO switch | No | |
| PROFINET IO diagnosis | No | |
| switch-managed | No | |
| protocol / is supported | ||
| Telnet | No | |
| HTTP | Yes | |
| HTTPS | Yes | |
| TFTP | No | |
| FTP | No | |
| BOOTP | No | |
| GMRP | No | |
| DCP | Yes | |
| LLDP | No | |
| SNMP v1 | Yes | |
| SNMP v2 | Yes | |
| SNMP v3 | Yes | |
| IGMP (snooping/querier) | No | |
| identification & maintenance function | ||
| I&M0 - device-specific information | Yes | |
| I&M1 - higher level designation/location designation | Yes | |
| product functions / diagnostics | ||
| product function | ||
| port diagnostics | Yes | |
| statistics Packet Size | Yes | |
| statistics packet type | Yes | |
| error statistics | Yes | |
| product functions / redundancy | ||
| protocol / is supported / Media Redundancy Protocol (MRP) | No | |
| product function | ||
| media redundancy protocol (MRP) with redundancy manager | No | |
| ring redundancy | No | |
| high speed redundancy protocol (HRP) with redundancy manager | No | |
| high speed redundancy protocol (HRP) with standby redundancy | No | |
| High-availability Seamless Redundancy (HSR) | No | |
| Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | Yes | |
| High-availability Seamless Redundancy (HSR) and Parallel Redundancy Protocol (PRP) coupling | No | |
| passive listening | No | |
| product functions / security | ||
| protocol / is supported | ||
| SSH | Yes | |
| product functions / time | ||
| product function | ||
| SICLOCK support | No | |
| protocol / is supported | ||
| NTP | No | |
| SNTP | Yes | |
| standards, specifications, approvals | ||
| certificate of suitability | ||
| CE marking | Yes | |
| KC approval | Yes | |
| Regulatory Compliance Mark (RCM) | Yes | |
| standard | ||
| for EMC interference emission | EN 61000-6-4:2001 (Class A) | |
| for immunity to EMC | EN 61000-6-4:2001 | |
| for safety / from CSA and UL | UL 60950-1 E115352, CSA C22.2 No. 60950-1 | |
| standards, specifications, approvals / hazardous environments | ||
| certificate of suitability | ||
| ATEX | Yes | |
| UKEX | Yes | |
| IECEx | Yes | |
| CCC / for hazardous zone according to GB standard | Yes | |
| FM registration | ||
