Siemens - 6GK5208-0BA00-2TB2
Siemens - 6GK5208-0BA00-2TB2
Regular price
€348,06 EUR
Regular price
Sale price
€348,06 EUR
Couldn't load pickup availability
Low stock: 1 left

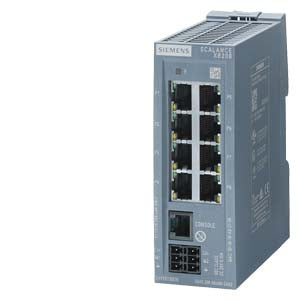

SCALANCE XB208
| product type designation | ||
| product brand name | SCALANCE | |
| product type designation | XB208 | |
| transfer rate | ||
| transfer rate | 10, 100 Mbit/s | |
| interfaces / for communication / integrated | ||
| number of electrical connections | ||
| for network components or terminal equipment | 8; RJ45 | |
| interfaces / other | ||
| number of electrical connections | ||
| for operator console | 1 | |
| for power supply | 1 | |
| type of electrical connection | ||
| for operator console | RJ11 | |
| for management purposes | RJ45 | |
| supply voltage, current consumption, power loss | ||
| product component / connection for redundant voltage supply | Yes | |
| type of voltage / 1 / of the supply voltage | DC | |
| supply voltage / 1 / rated value | 24 V | |
| supply voltage / 1 / rated value | 19.2 ... 28.8 V | |
| consumed current / 1 / maximum | 0.17 A | |
| type of electrical connection / 1 / for power supply | 6-pole terminal block | |
| product component / 1 / fusing at power supply input | Yes | |
| ambient conditions | ||
| ambient temperature | ||
| during operation | 0 ... 60 °C | |
| during storage | -40 ... +70 °C | |
| during transport | -40 ... +70 °C | |
| relative humidity | ||
| at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
| design, dimensions and weights | ||
| design | compact | |
| width | 40 mm | |
| height | 117 mm | |
| depth | 109 mm | |
| net weight | 0.25 kg | |
| material / of the enclosure | Polycarbonate (PC-GF10) | |
| fastening method | ||
| 35 mm DIN-rail mounting | Yes | |
| product features, product functions, product components / general | ||
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 | |
| cascading in cases of star topology | any (depending only on signal propagation time) | |
| product functions / management, configuration, engineering | ||
| product function | ||
| CLI | Yes | |
| web-based management | Yes | |
| MIB support | Yes | |
| TRAPs via email | Yes | |
| configuration with STEP 7 | Yes | |
| RMON | Yes | |
| port mirroring | Yes | |
| multiport mirroring | No | |
| CoS | Yes | |
| PROFINET IO diagnosis | Yes | |
| switch-managed | Yes | |
| PROFINET conformity class | B | |
| network load class / according to PROFINET | III | |
| telegram length / for Ethernet / maximum | 1632 byte | |
| protocol / is supported | ||
| Telnet | Yes | |
| HTTP | Yes | |
| HTTPS | Yes | |
| TFTP | Yes | |
| SFTP | Yes | |
| DCP | Yes | |
| LLDP | Yes | |
| EtherNet/IP | Yes | |
| SNMP v1 | Yes | |
| SNMP v2 | Yes | |
| SNMP v3 | Yes | |
| IGMP (snooping/querier) | Yes | |
| identification & maintenance function | ||
| I&M0 - device-specific information | Yes | |
| I&M1 - higher level designation/location designation | Yes | |
| product functions / diagnostics | ||
| product function | ||
| port diagnostics | Yes | |
| statistics Packet Size | Yes | |
| statistics packet type | Yes | |
| error statistics | Yes | |
| SysLog | Yes | |
| product functions / VLAN | ||
| product function | ||
| VLAN - port based | Yes | |
| number of VLANs / maximum | 257 | |
| number of VLANs - dynamic / maximum | 257 | |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 | |
| product functions / DHCP | ||
| product function | ||
| DHCP client | Yes | |
| product functions / redundancy | ||
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes | |
| product function | ||
| media redundancy protocol (MRP) with redundancy manager | Yes | |
| Media Redundancy Protocol Interconnection (MRP-I) | Yes | |
| of the PROFINET IO device / is supported / PROFINET system redundancy | No | |
| ring redundancy | Yes | |
| high speed redundancy protocol (HRP) with redundancy manager | Yes | |
| high speed redundancy protocol (HRP) with standby redundancy | Yes | |
| redundancy procedure STP | Yes | |
| redundancy procedure RSTP | Yes | |
| redundancy procedure RSTP+ | Yes | |
| Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes | |
| passive listening | Yes | |
| product functions / security | ||
| product function | ||
| IEEE 802.1x (radius) | Yes | |
| RADIUS client | Yes | |
| broadcast/multicast/unicast limiter | Yes | |
| broadcast blocking | Yes | |
| protocol / is supported | ||
| SSH | Yes | |
| SSL | Yes | |
| product functions / time | ||
| product function | ||
| SICLOCK support | Yes | |
| NTP-client | Yes | |
| SNTP client | Yes | |
| protocol / is supported | ||
| SNTP | Yes | |
