Siemens - 6GK5216-0BA00-2AC2
Siemens - 6GK5216-0BA00-2AC2
Regular price
€729,27 EUR
Regular price
Sale price
€729,27 EUR
Couldn't load pickup availability
15 in stock

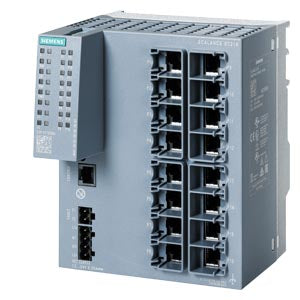

SCALANCE XC216
| product type designation | ||
| product brand name | SCALANCE | |
| product type designation | XC216 | |
| transfer rate | ||
| transfer rate | 10, 100 Mbit/s | |
| interfaces / for communication / integrated | ||
| number of electrical connections | ||
| for network components or terminal equipment | 16; RJ45 | |
| number of 10/100 Mbit/s RJ45 ports | ||
| with securing collar | 16 | |
| interfaces / other | ||
| number of electrical connections | ||
| for operator console | 1 | |
| for signaling contact | 1 | |
| for power supply | 1 | |
| type of electrical connection | ||
| for operator console | RJ11 | |
| for signaling contact | 2-pole terminal block | |
| for power supply | 4-pole terminal block | |
| design of the removable storage | ||
| C-PLUG | Yes | |
| operating voltage / of the signaling contacts | ||
| at DC / rated value | 24 V | |
| operational current / of the signaling contacts | ||
| at DC / maximum | 0.1 A | |
| supply voltage, current consumption, power loss | ||
| product component / connection for redundant voltage supply | Yes | |
| type of voltage / 1 / of the supply voltage | DC | |
| supply voltage / 1 / rated value | 24 V | |
| power loss [W] / 1 / rated value | 6.6 W | |
| consumed current / 1 / at rated supply voltage / maximum | 0.275 A | |
| supply voltage / 1 / rated value | 9.6 ... 31.2 V | |
| consumed current / 1 / maximum | 0.55 A | |
| type of electrical connection / 1 / for power supply | 4-pole terminal block | |
| product component / 1 / fusing at power supply input | Yes | |
| fuse protection type / 1 / at input for supply voltage | 2.5 A / 125 V | |
| ambient conditions | ||
| ambient temperature | ||
| during operation | -40 ... +70 °C | |
| during storage | -40 ... +85 °C | |
| during transport | -40 ... +85 °C | |
| relative humidity | ||
| at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
| design, dimensions and weights | ||
| design | compact | |
| width | 120 mm | |
| height | 147 mm | |
| depth | 125 mm | |
| net weight | 0.8 kg | |
| material / of the enclosure | Polycarbonate (PC-GF10) / pressure die cast aluminum | |
| fastening method | ||
| 35 mm DIN-rail mounting | Yes | |
| wall mounting | Yes | |
| S7-300 rail mounting | Yes | |
| S7-1500 rail mounting | Yes | |
| product features, product functions, product components / general | ||
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 | |
| cascading in cases of star topology | any (depending only on signal propagation time) | |
| product function | ||
| QoS according to DSCP | Yes | |
| product feature | ||
| Cut Through switching method | No | |
| Store & Forward switching method | Yes | |
| product functions / management, configuration, engineering | ||
| product function | ||
| CLI | Yes | |
| web-based management | Yes | |
| MIB support | Yes | |
| TRAPs via email | Yes | |
| configuration with STEP 7 | Yes | |
| RMON | Yes | |
| SMTP server | No | |
| port mirroring | Yes | |
| multiport mirroring | Yes | |
| CoS | Yes | |
| PROFINET IO diagnosis | Yes | |
| switch-managed | Yes | |
| PROFINET conformity class | B | |
| telegram length / for Ethernet / maximum | 1632 byte | |
| protocol / is supported | ||
| Telnet | Yes | |
| HTTP | Yes | |
| HTTPS | Yes | |
| TFTP | Yes | |
| SFTP | Yes | |
| BOOTP | No | |
| GMRP | Yes | |
| DCP | Yes | |
| LLDP | Yes | |
| EtherNet/IP | Yes | |
| SNMP v1 | Yes | |
| SNMP v2 | Yes | |
| SNMP v3 | Yes | |
| IGMP (snooping/querier) | Yes | |
| identification & maintenance function | ||
| I&M0 - device-specific information | Yes | |
| I&M1 - higher level designation/location designation | Yes | |
| product functions / diagnostics | ||
| product function | ||
| port diagnostics | Yes | |
| statistics Packet Size | Yes | |
| statistics packet type | Yes | |
| error statistics | Yes | |
| SysLog | Yes | |
| product functions / VLAN | ||
| product function | ||
| VLAN - port based | Yes | |
| VLAN - protocol-based | No | |
| VLAN - IP-based | No | |
| number of VLANs / maximum | 257 | |
| number of VLANs - dynamic / maximum | 257 | |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 | |
| product functions / DHCP | ||
| product function | ||
| DHCP server | Yes | |
| DHCP client | Yes | |
| DHCP Option 82 | Yes | |
| DHCP Option 66 | Yes | |
| DHCP Option 67 | Yes | |
