Siemens - 6GK5324-0GG10-3AR2
Siemens - 6GK5324-0GG10-3AR2
Regular price
€1.281,74 EUR
Regular price
Sale price
€1.281,74 EUR
Couldn't load pickup availability
Low stock: 1 left

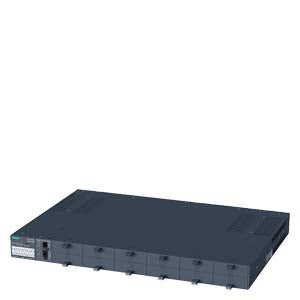

SCALANCE XR324-12M
| product type designation | ||
| product brand name | SCALANCE | |
| product type designation | XR324-12M | |
| transfer rate | ||
| transfer rate | 10, 100, 1000 Mbit/s | |
| interfaces / for communication / integrated | ||
| number of 100 Mbit/s ST(BFOC) ports | ||
| for multimode | 24 | |
| number of 100 Mbit/s SC ports | ||
| for multimode | 24 | |
| interfaces / other | ||
| number of electrical connections | ||
| for operator console | 1 | |
| for signaling contact | 1 | |
| for media module | 12 | |
| for power supply | 1 | |
| type of electrical connection | ||
| for operator console | RJ11 | |
| for signaling contact | 2-pole terminal block | |
| for power supply | 2-pole terminal block | |
| design of the removable storage | ||
| C-PLUG | Yes | |
| operating voltage / of the signaling contacts | ||
| at DC / rated value | 24 V | |
| operational current / of the signaling contacts | ||
| at DC / maximum | 0.1 A | |
| supply voltage, current consumption, power loss | ||
| product component / connection for redundant voltage supply | Yes | |
| type of voltage supply / redundant power supply unit | No | |
| type of voltage / 1 / of the supply voltage | AC | |
| supply voltage / 1 / rated value | 230 V | |
| power loss [W] / 1 / rated value | 50 W | |
| supply voltage / 1 / rated value | 85 ... 264 V | |
| consumed current / 1 / maximum | 0.8 A | |
| type of electrical connection / 1 / for power supply | 2-pole terminal block | |
| product component / 1 / fusing at power supply input | Yes | |
| fuse protection type / 1 / at input for supply voltage | 3.15 A / 250 V | |
| ambient conditions | ||
| ambient temperature | ||
| during operation | -40 ... +70 °C | |
| during storage | -40 ... +85 °C | |
| during transport | -40 ... +85 °C | |
| note | Reduced operating temperature through the use of media modules (-40 °C to +70 °C) or SFP plug-in transceivers (-40 °C to +60 °C). If the device is installed in the vertical position, the maximum operating temperature is reduced to +50 °C. | |
| relative humidity | ||
| at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
| design, dimensions and weights | ||
| design | 19-inch rack | |
| number of modular height units / relating to 19-inch cabinet | 1 | |
| width | 483 mm | |
| height | 44 mm | |
| depth | 305 mm | |
| net weight | 5.9 kg | |
| product feature / conformal coating | No | |
| fastening method | When used in shipbuilding, the device must be secured in the 19" rack at four points | |
| 19-inch installation | Yes | |
| 35 mm DIN-rail mounting | No | |
| wall mounting | No | |
| S7-300 rail mounting | No | |
| S7-1500 rail mounting | No | |
| product features, product functions, product components / general | ||
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 100 | |
| cascading in cases of star topology | any (depending only on signal propagation time) | |
| product functions / management, configuration, engineering | ||
| product function | ||
| CLI | Yes | |
| web-based management | Yes | |
| MIB support | Yes | |
| TRAPs via email | Yes | |
| configuration with STEP 7 | Yes | |
| RMON | Yes | |
| port mirroring | Yes | |
| multiport mirroring | Yes | |
| CoS | Yes | |
| PROFINET IO diagnosis | Yes | |
| switch-managed | Yes | |
| PROFINET conformity class | B | |
| protocol / is supported | ||
| Telnet | Yes | |
| HTTP | Yes | |
| HTTPS | Yes | |
| TFTP | Yes | |
| FTP | Yes | |
| BOOTP | Yes | |
| GMRP | Yes | |
| DCP | Yes | |
| LLDP | Yes | |
| SNMP v1 | Yes | |
| SNMP v2 | Yes | |
| SNMP v3 | Yes | |
| IGMP (snooping/querier) | Yes | |
| identification & maintenance function | ||
| I&M0 - device-specific information | Yes | |
| I&M1 - higher level designation/location designation | Yes | |
| product functions / diagnostics | ||
| product function | ||
| port diagnostics | Yes | |
| statistics Packet Size | Yes | |
| statistics packet type | Yes | |
| error statistics | Yes | |
| SysLog | Yes | |
| product functions / VLAN | ||
| product function | ||
| VLAN - port based | Yes | |
| VLAN - protocol-based | No | |
| VLAN - IP-based | No | |
| VLAN dynamic | Yes | |
| number of VLANs / maximum | 255 | |
| number of VLANs - dynamic / maximum | 255 | |
| product functions / DHCP | ||
| product function | ||
| DHCP client | Yes | |
| DHCP Option 82 | Yes | |
| DHCP Option 66 | Yes | |
| DHCP Option 67 | Yes | |
| product functions / redundancy | ||
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes | |
| product function | ||
| media redundancy protocol (MRP) with redundancy manager | Yes | |
| ring redundancy | ||
