Siemens - 6GK5876-4AA10-2BA2
Siemens - 6GK5876-4AA10-2BA2
Regular price
€552,77 EUR
Regular price
Sale price
€552,77 EUR
Couldn't load pickup availability
Low stock: 5 left

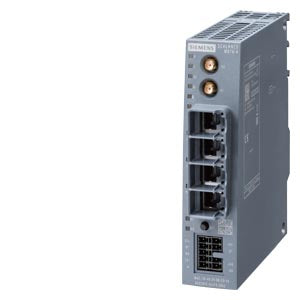

SCALANCE M876-4 4G-Router
| transfer rate | ||
| transfer rate / for Industrial Ethernet | 10, 100 Mbit/s | |
| transfer rate | ||
| for GPRS transmission / with downlink / maximum | 85.6 kbit/s | |
| for GPRS transmission / with uplink / maximum | 85.6 kbit/s | |
| with eGPRS transmission / with downlink / maximum | 236.8 kbit/s | |
| with eGPRS transmission / with uplink / maximum | 236.8 kbit/s | |
| with UMTS transmission / with downlink / maximum | 14.4 Mbit/s | |
| with UMTS transmission / with uplink / maximum | 5.76 Mbit/s | |
| for LTE transmission / with downlink / maximum | 100 Mbit/s | |
| for LTE transmission / with uplink / maximum | 50 Mbit/s | |
| interfaces | ||
| number of electrical connections | ||
| for internal network | 4 | |
| for external network | 2 | |
| number of electrical connections | ||
| for power supply | 2 | |
| type of electrical connection | ||
| for internal network | RJ45 port (10/100 Mbit/s, TP, autocrossover) | |
| for external antenna(s) | SMA antenna socket (50 ohms) | |
| for power supply | 5-pole terminal strip | |
| signal inputs/outputs | ||
| number of digital inputs | 1 | |
| number of digital outputs | 1 | |
| WAN connection | ||
| type of wireless network / is supported | LTE, UMTS, GSM | |
| type of mobile wireless service / is supported | GPRS, eGPRS, HSPA+ | |
| operating frequency / for GSM transmission | 850 MHz, 900 MHz, 1800 MHz, 1900 MHz | |
| frequency band / is supported | ||
| LTE | B1, B2, B3, B4, B5, B7, B8, B12, B13, B18, B19, B20, B26, B28, B38, B40, B41, B66 | |
| UMTS | B1, B2, B4, B5, B6, B8, B19 | |
| supply voltage, current consumption, power loss | ||
| supply voltage / rated value | 10.8 ... 28.8 | |
| consumed current | ||
| at DC / at 24 V / typical | 0.33 A | |
| power loss [W] | ||
| maximum | 8 W | |
| supply voltage / 1 / rated value | 24 V | |
| type of voltage / 1 / of the supply voltage | DC | |
| ambient conditions | ||
| ambient temperature | ||
| during operation | -20 ... +70 °C | |
| during storage | -40 ... +85 °C | |
| relative humidity / at 25 °C / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
| design, dimensions and weights | ||
| design | compact | |
| depth | 127 mm | |
| height | 147 mm | |
| width | 35 mm | |
| fastening method | ||
| 35 mm DIN-rail mounting | Yes | |
| S7-300 rail mounting | Yes | |
| S7-1500 rail mounting | Yes | |
| wall mounting | Yes | |
| product features, product functions, product components / general | ||
| product function | ||
| DynDNS client | Yes | |
| no-ip.com client | Yes | |
| product functions / management, configuration, engineering | ||
| product function | ||
| CLI | Yes | |
| web-based management | Yes | |
| MIB support | Yes | |
| TRAPs via email | Yes | |
| protocol / is supported | ||
| Telnet | Yes | |
| HTTP | Yes | |
| HTTPS | Yes | |
| type of configuration | Web-based management | |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 | |
| product functions / diagnostics | ||
| protocol / is supported | ||
| SNMP v1 | Yes | |
| SNMP v2 | Yes | |
| SNMP v2c | Yes | |
| SNMP v3 | Yes | |
| product function | ||
| statistics Packet Size | No | |
| statistics packet type | No | |
| error statistics | No | |
| SysLog | Yes | |
| packet filter log | Yes | |
| product functions / DHCP | ||
| product function | ||
| DHCP client | Yes | |
| DHCP server - internal network | Yes | |
| product functions / routing | ||
| router function | ||
| NAT (IP masquerading) | Yes | |
| port forwarding | Yes | |
| NAT traversal | Yes | |
| 1:1 NAT | Yes | |
| DNS cache | Yes | |
| product functions / security | ||
| suitability for operation / Virtual Private Network | Yes | |
| firewall version | Statefull Inspection | |
| product function | ||
| password protection | Yes | |
| packet filter | Yes | |
| broadcast/multicast/unicast limiter | No | |
| product function | ||
| broadcast blocking | No | |
| with VPN connection | IPsec, OpenVPN (as Client) | |
| number of possible connections / with VPN connection | 20 | |
| type of authentication / with Virtual Private Network / PSK | Yes | |
| protocol / is supported | ||
| IPsec tunnel and transport mode | Yes | |
| key length | ||
| 1 / with IPsec AES / with Virtual Private Network | 128 bit | |
| 2 / with IPsec AES / with Virtual Private Network | 192 bit | |
| 3 / with IPsec AES / with Virtual Private Network | 256 bit | |
| with IPsec 3DES / with Virtual Private Network | 168 bit | |
| type of Internet key exchange / with Virtual Private Network | ||
| main mode | Yes | |
| quick mode | Yes | |
| type of packet authentication / with Virtual Private Network | MD5, SHA-1, SHA-256, SHA-384, SHA-512 | |
| IETF profile / with Virtual Private Network / X.509v3 certificate | Yes | |
| product functions / time | ||
