Siemens - 6GK5992-1AL00-8AC0

Siemens - 6GK5992-1AL00-8AC0

€1.051,05 EUR
€1.051,05 EUR
Sale Sold out

Low stock: 1 left

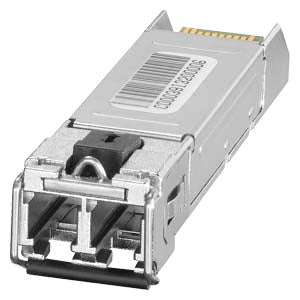

SCALANCE X SFP992-1

interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum 1
number of optical interfaces / for network components or terminal equipment / maximum 1
number of 1000 Mbit/s LC ports / for multimode / integrated 1
design of the optical interface / for network components or terminal equipment LC
wavelength / of the optical interface 850 nm; Multi-mode
connectable optical power relative to 1 mW
of the transmitter output / minimum -9.5 dB
of the transmitter output / maximum -2.5 dB
of the receiver input / maximum -3 dB
optical sensitivity relating to 1 mW / of the receiver input / minimum -17 dB
attenuation factor / of the FOC transmission link / minimum necessary 0 dB
range / at the optical interface / depending on the optical fiber used 0.35 ... 0.75 km
transmission method / for connection type 1 1000BASE-SX
ambient conditions
ambient temperature
during operation -40 ... +85 °C
during storage -40 ... +85 °C
during transport -40 ... +85 °C
note A maximum operating temperature of +85 °C is permissible for a duration of 16 hours
relative humidity / at 25 °C / without condensation / during operation / maximum 95 %
protection class IP IP20
design, dimensions and weights
design SFP Module
width 14 mm
height 9 mm
depth 57 mm
net weight 0.02 kg
fastening method latched
standards, specifications, approvals
standard
for FM FM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4
for hazardous zone EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X
for safety / from CSA and UL UL 62368-1 and CAN/CSA C22.2 No. 62368-1:19
for emitted interference EN 61000-6-4:2007 (Class A)
for interference immunity EN 61000-6-2:2005
certificate of suitability EN 61000-6-2:2005, EN 61000-6-4:2007
CE marking Yes
C-Tick Yes
KC approval No
Marine classification association
French marine classification society (BV) Yes
MTBF 670 a
reference code
according to IEC 81346-2:2019 KEC
further information / internet links
internet link
to website: Selection guide for cables and connectors https://support.industry.siemens.com/cs/ww/en/view/109766358
to web page: selection aid TIA Selection Tool https://www.siemens.com/tstcloud
to website: Industrial communication https://www.siemens.com/simatic-net
to web page: SiePortal https://sieportal.siemens.com/
to website: Image database https://www.automation.siemens.com/bilddb
to website: CAx-Download-Manager https://www.siemens.com/cax
to website: Industry Online Support https://support.industry.siemens.com
security information
security information Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement and continuously maintain a holistic, state-of-the-art industrial cybersecurity concept. Siemens products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
