Siemens - 6GK7243-1JX30-0XE0
Siemens - 6GK7243-1JX30-0XE0
Regular price
€384,31 EUR
Regular price
Sale price
€384,31 EUR
Couldn't load pickup availability
Low stock: 2 left

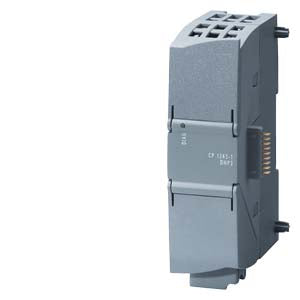

SIMATIC S7-1200 CP 1243-1 DNP3
| product type designation | CP 1243-1 DNP3 | |
| transfer rate | ||
| transfer rate | ||
| at the 1st interface | 10 ... 100 Mbit/s | |
| interfaces | ||
| number of interfaces / according to Industrial Ethernet | 1 | |
| number of electrical connections | ||
| at the 1st interface / according to Industrial Ethernet | 1 | |
| for power supply | 0 | |
| type of electrical connection | ||
| at the 1st interface / according to Industrial Ethernet | RJ45 port | |
| supply voltage, current consumption, power loss | ||
| type of voltage / of the supply voltage | DC | |
| supply voltage / 1 / from backplane bus | 5 V | |
| consumed current | ||
| from backplane bus / at DC / at 5 V / typical | 0.25 A | |
| power loss [W] | 1.25 W | |
| ambient conditions | ||
| ambient temperature | ||
| for vertical installation / during operation | -20 ... +60 °C | |
| for horizontally arranged busbars / during operation | -20 ... +70 °C | |
| during storage | -40 ... +70 °C | |
| during transport | -40 ... +70 °C | |
| relative humidity | ||
| at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
| design, dimensions and weights | ||
| module format | Compact module S7-1200 single width | |
| width | 30 mm | |
| height | 110 mm | |
| depth | 75 mm | |
| net weight | 0.122 kg | |
| fastening method | ||
| 35 mm DIN-rail mounting | Yes | |
| wall mounting | Yes | |
| product features, product functions, product components / general | ||
| number of units | ||
| per CPU / maximum | 3 | |
| performance data / S7 communication | ||
| number of possible connections / for S7 communication | ||
| maximum | like CPU | |
| performance data / IT functions | ||
| number of possible connections | ||
| as email client / maximum | 1 | |
| performance data / telecontrol | ||
| suitability for use | ||
| node station | No | |
| substation | Yes | |
| TIM control center | No | |
| control center connection | control center with DNP3 function | |
| by means of a permanent connection | supported | |
| note | Connection to SCADA system using DNP3 services | |
| protocol / is supported | ||
| DNP3 | Yes | |
| IEC 60870-5 | No | |
| product function / data buffering if connection is aborted | Yes; 64,000 values | |
| number of data points per station / maximum | 200 | |
| performance data / teleservice | ||
| diagnostics function / online diagnostics with SIMATIC STEP 7 | Yes | |
| product function | ||
| program download with SIMATIC STEP 7 | Yes | |
| remote firmware update | Yes | |
| product functions / management, configuration, engineering | ||
| configuration software | ||
| required | STEP 7 Basic/Professional | |
| product functions / time | ||
| protocol / is supported | ||
| NTP | No | |
| time synchronization | ||
| from control center | Yes | |
| further information / internet links | ||
| internet link | ||
| to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud | |
| to website: Industrial communication | https://www.siemens.com/simatic-net | |
| to website: Image database | https://www.automation.siemens.com/bilddb | |
| to website: CAx-Download-Manager | https://siemens.com/cax | |
| to website: Industry Online Support | https://support.industry.siemens.com | |
| security information | ||
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement and continuously maintain a holistic, state-of-the-art industrial cybersecurity concept. Siemens products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) | |
| Approvals / Certificates | ||
