Siemens - 6GK7343-2AH11-0XA0
Siemens - 6GK7343-2AH11-0XA0
Regular price
€593,66 EUR
Regular price
Sale price
€593,66 EUR
Couldn't load pickup availability
Low stock: 2 left

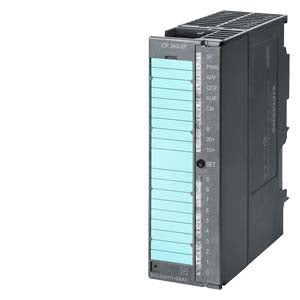

SIMATIC S7-300 CP 343-2P
| General technical data | |||
| product designation | AS-Interface Master | ||
| product type designation | CP 343-2 P (AS-i V 3.0) | ||
| protection class IP | IP20 | ||
| type of electrical connection of the AS-Interface | S7-300, front connector, 20-pin | ||
| type of voltage supply | via backplane bus | ||
| consumed current | |||
| from profile conductors of the AS-Interface | |||
| at 30 V maximum | mA | 100 | |
| from backplane bus maximum | mA | 200 | |
| power loss [W] | W | 4 | |
| insulation voltage rated value | V | 500 | |
| product feature redundancy capability | Yes | ||
| note | in connection with redundant IM153 | ||
| product function suitable for AS-i Power24V | Yes | ||
| note | from product status 2 / firmware V3.1 | ||
| product function | |||
| web-based management | No | ||
| diagnostics via email | No | ||
| galvanic isolation | Yes | ||
| display version | |||
| as status display by LED | RUN, APF, CER, AUP, CM, SF | ||
| type of configuration of the AS-Interface | Set pushbutton on device, STEP7, command interface | ||
| Communication/ Protocol | |||
| version of the AS-Interface specification | V 3.0 | ||
| AS-Interface master profile is supported | M4 (in acc. with AS-interface specification V 3.0) | ||
| type of data transmission | S7-300 / ET 200M backplane bus | ||
| number of units per CPU maximum note | Limited only by current draw from backplane bus | ||
| number of interfaces | |||
| as AS-Interface | 1 | ||
| according to RS 485 | 0 | ||
| according to Industrial Ethernet | 0 | ||
| according to PROFINET | 0 | ||
| according to wireless | 0 | ||
| according to USB | 0 | ||
| other | 0 | ||
| product component optical interface | No | ||
| protocol is supported | |||
| ASIsafe (Safety at work) protocol | No | ||
| PROFIsafe protocol | No | ||
| PROFIBUS protocol | No | ||
| PROFINET IO protocol | No | ||
| PROFINET CBA protocol | No | ||
| TCP/IP | No | ||
| SNMP | No | ||
| standard for wireless communication IEEE 802.11 | No | ||
| Inputs/ Outputs | |||
| number of inputs for AS-Interface maximum | 496 | ||
| number of outputs for AS-Interface maximum | 496 | ||
| number of AS-i slaves per AS-Interface maximum | 62 | ||
| bus cycle time of the AS-Interface | |||
| for 31 slaves | ms | 5 | |
| for 62 slaves | ms | 10 | |
| access to digital I/O data | via process image/peripheral addresses | ||
| access to analog I/O data | via data record transfer | ||
| Mechanical data | |||
| width | mm | 40 | |
| height | mm | 125 | |
| depth | mm | 120 | |
| fastening method | S7 mounting rail | ||
| module format | S7-300 modular system | ||
| Ambient conditions | |||
| ambient temperature | |||
| if installed on horizontal mounting rail during operation | °C | 0 ... 60 | |
| if installed on vertical mounting rail during operation | °C | 0 ... 40 | |
| during transport | °C | -40 ... +70 | |
| during storage | °C | -40 ... +70 | |
| relative humidity at 25 °C during operation maximum | % | 95 | |
| installation altitude at height above sea level maximum | m | 2 000 | |
| Safety related data | |||
| suitability for use safety-related function | No | ||
| explosion protection marking for intrinsic safety of related equipment | |||
| EEx ia | No | ||
| EEx ib | No | ||
| explosion protection category for gas | II 3 G Ex ec IIC T4 Gc | ||
| explosion protection category for dust | none | ||
| Certificates/ approvals | |||
