Siemens - 6GK7343-5FA01-0XE0

Siemens - 6GK7343-5FA01-0XE0

€919,00 EUR
€919,00 EUR
Sale Sold out

Low stock: 3 left

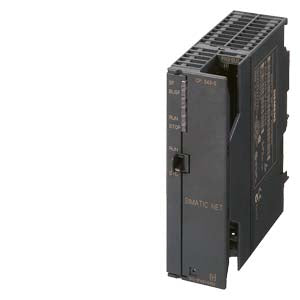

SIMATIC S7-300 CP 343-5

product type designation CP 343-5
transfer rate
transfer rate
at the 1st interface / according to PROFIBUS 9.6 kbit/s ... 12 Mbit/s
interfaces
number of interfaces / according to Industrial Ethernet 0
number of electrical connections
at the 1st interface / according to PROFIBUS 1
for power supply 1
type of electrical connection
at the 1st interface / according to PROFIBUS 9-pin Sub-D socket (RS485)
for power supply 4-pole terminal block
supply voltage, current consumption, power loss
type of voltage / of the supply voltage DC
supply voltage / 1 / from backplane bus 5 V
supply voltage 24 V
supply voltage / external 24 V
supply voltage / external / at DC / rated value 24 V
relative positive tolerance / at DC / at 24 V 20 %
relative negative tolerance / at DC / at 24 V 15 %
consumed current
from backplane bus / at DC / at 5 V / typical 0.15 A
from external supply voltage / at DC / at 24 V / typical 0.25 A
power loss [W] 5 W
ambient conditions
ambient temperature
during operation 0 ... 60 °C
during storage -40 ... +70 °C
during transport -40 ... +70 °C
relative humidity
at 25 °C / without condensation / during operation / maximum 95 %
protection class IP IP20
design, dimensions and weights
module format Compact module S7-300 single width
width 40 mm
height 125 mm
depth 120 mm
net weight 0.3 kg
fastening method
S7-300 rail mounting Yes
product features, product functions, product components / general
number of units
per CPU / maximum 4
performance data / open communication
number of possible connections / for open communication / by means of SEND/RECEIVE blocks / maximum 16
data volume
as user data per connection / for open communication / by means of SEND/RECEIVE blocks / maximum 240 byte
performance data / FMS functions
number of possible connections / for FMS connection / maximum 16
data volume / of the variables
for READ job / maximum 237 byte
for WRITE and REPORT job / maximum 233 byte
number of variables
configurable from server to FMS partner 256
loadable from server to FMS partner 256
performance data / S7 communication
number of possible connections / for S7 communication
maximum 16
performance data / multi-protocol mode
number of active connections / with multi-protocol mode 48
performance data / telecontrol
protocol / is supported
TCP/IP No
product functions / management, configuration, engineering
configuration software
required STEP 7 V5.1 SP3 or higher and NCM S7 for PROFIBUS
standards, specifications, approvals
reference code
according to IEC 81346-2:2019 KEC
certificate of suitability / CE marking Yes
certificate of suitability / UKCA marking Yes
certificate of suitability / Regulatory Compliance Mark (RCM) Yes
certificate of suitability / RoHS conformity Yes
certificate of suitability / EAC approval Yes
standards, specifications, approvals / hazardous environments / header
certificate of suitability / ATEX Yes
certificate of suitability / IECEx Yes
certificate of suitability / ULhazloc approval Yes
certificate of suitability / CCC / for hazardous zone according to GB standard Yes
standards, specifications, approvals / marine classification / header
Marine classification association / Polski Rejestr Statkow (PRS) Yes
standards, specifications, approvals / Environmental Product Declaration
Environmental Product Declaration Yes
global warming potential [CO2 eq]
total 229.03 kg
during manufacturing 17.48 kg
during operation 211.2 kg
after end of life 0.35 kg
further information / internet links
internet link
to website: Selection guide for cables and connectors https://support.industry.siemens.com/cs/ww/en/view/109766358
to web page: selection aid TIA Selection Tool https://www.siemens.com/tstcloud
to website: Industrial communication https://www.siemens.com/simatic-net
to web page: SiePortal https://sieportal.siemens.com/
to website: Image database https://www.automation.siemens.com/bilddb
to website: CAx-Download-Manager https://siemens.com/cax
to website: Industry Online Support https://support.industry.siemens.com
security information
security information Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement and continuously maintain a holistic, state-of-the-art industrial cybersecurity concept. Siemens products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customers exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
