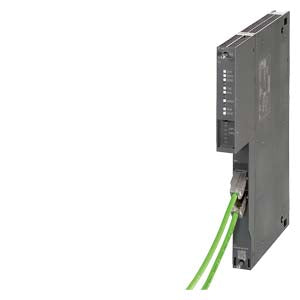

Siemens - 6GK7443-1EX30-0XE1
Siemens - 6GK7443-1EX30-0XE1
Regular price
€1.733,11 EUR
Regular price
Sale price
€1.733,11 EUR
Couldn't load pickup availability
Low stock: 1 left
SIMATIC S7-400 CP 443-1
| product type designation | CP 443-1 | |
| transfer rate | ||
| transfer rate | ||
| at the 1st interface | 10 ... 100 Mbit/s | |
| interfaces | ||
| number of interfaces / according to Industrial Ethernet | 2 | |
| number of electrical connections | ||
| at the 1st interface / according to Industrial Ethernet | 2 | |
| type of electrical connection | ||
| at the 1st interface / according to Industrial Ethernet | RJ45 port | |
| design of the removable storage | ||
| C-PLUG | No | |
| supply voltage, current consumption, power loss | ||
| type of voltage / of the supply voltage | DC | |
| supply voltage / 1 / from backplane bus | 5 V | |
| relative symmetrical tolerance / at DC | ||
| at 5 V | 5 % | |
| consumed current | ||
| from backplane bus / at DC / at 5 V / typical | 1.4 A | |
| power loss [W] | 7.25 W | |
| ambient conditions | ||
| ambient temperature | ||
| during operation | 0 ... 60 °C | |
| during storage | -40 ... +70 °C | |
| during transport | -40 ... +70 °C | |
| note | Operation from 0 °C to 70 °C possible as of hardware version 2 | |
| relative humidity | ||
| at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
| design, dimensions and weights | ||
| module format | Compact module S7-400 single width | |
| width | 25 mm | |
| height | 290 mm | |
| depth | 210 mm | |
| net weight | 0.7 kg | |
| product feature / conformal coating | Yes | |
| product features, product functions, product components / general | ||
| number of units | ||
| per CPU / maximum | 14 | |
| note | max. 4 as PN IO ctrl. | |
| performance data / open communication | ||
| number of possible connections / for open communication / by means of SEND/RECEIVE blocks / maximum | 64 | |
| data volume | ||
| as user data per ISO connection / for open communication / by means of SEND/RECEIVE blocks / maximum | 8 Kibyte | |
| as user data per ISO on TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum | 8 Kibyte | |
| as user data per TCP connection / for open communication / by means of SEND/RECEIVE blocks / maximum | 8 Kibyte | |
| as user data per UDP connection / for open IE communication / by means of SEND/RECEIVE blocks / maximum | 2 Kibyte | |
| number of possible connections / for open communication | ||
| by means of T blocks / maximum | 64 | |
| data volume | ||
| as user data per ISO on TCP connection / for open communication / by means of T blocks / maximum | 1452 byte | |
| performance data / S7 communication | ||
| number of possible connections / for S7 communication | ||
| maximum | 128; when using several CPUs | |
| with PG connections / maximum | 2 | |
| performance data / multi-protocol mode | ||
| number of active connections / with multi-protocol mode | 128 | |
| performance data / PROFINET communication / as PN IO controller | ||
| product function / PROFINET IO controller | Yes | |
| number of PN IO devices / on PROFINET IO controller / operable / total | 128 | |
| number of PN IO IRT devices / on PROFINET IO controller / operable | 64 | |
| number of external PN IO lines / with PROFINET / per rack | 4 | |
| data volume | ||
| as user data for input variables / as PROFINET IO controller / maximum | 4 Kibyte | |
| as user data for output variables / as PROFINET IO controller / maximum | 4 Kibyte | |
| as user data for input variables per PN IO device / as PROFINET IO controller / maximum | 1433 byte | |
| as user data for output variables per PN IO device / as PROFINET IO controller / maximum | 1433 byte | |
| as user data for input variables per PN IO device / for each sub-module as PROFINET IO controller / maximum | 240 byte | |
| as user data for output variables per PN IO device / for each sub-module as PROFINET IO controller / maximum | 240 byte | |
| product functions / management, configuration, engineering | ||
| product function / MIB support | Yes | |
| protocol / is supported | ||
| SNMP v1 | Yes | |
| DCP | Yes | |
| LLDP | Yes | |
| configuration software | ||
| required | STEP 7 V5.5 SP3 or higher / STEP 7 Professional V12 (TIA Portal) or higher | |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 | |
| product functions / diagnostics | ||
| product function / web-based diagnostics | Yes | |
| product functions / switch | ||
| product feature / switch | Yes | |
| product function | ||
| switch-managed | No | |
| with IRT / PROFINET IO switch | Yes | |
| configuration with STEP 7 | Yes | |
| product functions / redundancy | ||
| product function | ||
| ring redundancy | Yes | |
| redundancy manager | Yes | |
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes | |
| product functions / security | ||
| product function | ||
| password protection for Web applications | No | |
| ACL - IP-based | Yes | |
| ACL - IP-based for PLC/routing | No | |
| switch-off of non-required services | Yes | |
| blocking of communication via physical ports | Yes | |
| log file for unauthorized access | No | |
| product functions / time | ||
| product function / SICLOCK support | Yes | |
| product function / pass on time synchronization | Yes | |
| protocol / is supported | ||
| NTP | Yes | |
| SIMATIC time synchronization (SIMATIC Time) | Yes | |
| standards, specifications, approvals | ||
| reference code | ||
| according to IEC 81346-2:2019 | KEC | |
| certificate of suitability / CE marking | Yes | |
| certificate of suitability / UKCA marking | Yes | |
| certificate of suitability / Regulatory Compliance Mark (RCM) | Yes | |
| certificate of suitability / RoHS conformity | Yes | |
| certificate of suitability / EAC approval | Yes | |
| standards, specifications, approvals / hazardous environments / header | ||
| certificate of suitability / ATEX | Yes | |
| certificate of suitability / IECEx | Yes | |
