Siemens - 6GK7542-1AX10-0XE0
Siemens - 6GK7542-1AX10-0XE0
Regular price
€723,66 EUR
Regular price
Sale price
€723,66 EUR
Couldn't load pickup availability
Low stock: 2 left

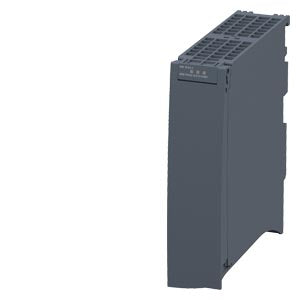

SIMATIC S7-1500 CM 1542-1
| product type designation | CM 1542-1 | |
| transfer rate | ||
| transfer rate | ||
| at the 1st interface | 100 Mbit/s | |
| interfaces | ||
| number of interfaces / according to Industrial Ethernet | 1 | |
| number of electrical connections | ||
| at the 1st interface / according to Industrial Ethernet | 2 | |
| type of electrical connection | ||
| at the 1st interface / according to Industrial Ethernet | RJ45 port | |
| supply voltage, current consumption, power loss | ||
| type of voltage / of the supply voltage | DC | |
| supply voltage / 1 / from backplane bus | 15 V | |
| relative symmetrical tolerance / at DC | ||
| at 15 V | 3 % | |
| consumed current | ||
| from backplane bus / at DC / at 15 V / typical | 0.22 A | |
| power loss [W] | 3.3 W | |
| ambient conditions | ||
| ambient temperature | ||
| for vertical installation / during operation | -30 ... +40 °C | |
| for horizontally arranged busbars / during operation | -30 ... +60 °C | |
| during storage | -40 ... +70 °C | |
| during transport | -40 ... +70 °C | |
| note | without condensation or icing | |
| installation altitude / at height above sea level / maximum | 5000 m | |
| ambient condition / relating to ambient temperature - air pressure - installation altitude | restrictions for installation altitudes > 2 000 m, see manual | |
| relative humidity | ||
| at 25 °C / without condensation / during operation / maximum | 95 % | |
| protection class IP | IP20 | |
| design, dimensions and weights | ||
| module format | Compact module S7-1500 single width | |
| width | 35 mm | |
| height | 142 mm | |
| depth | 129 mm | |
| net weight | 0.4 kg | |
| fastening method | ||
| S7-1500 rail mounting | Yes | |
| product features, product functions, product components / general | ||
| number of units | ||
| per CPU / maximum | 8 | |
| note | depending on CPU type | |
| performance data / open communication | ||
| number of possible connections / for open communication | ||
| by means of T blocks / maximum | 64; depending on the system upper limit | |
| data volume | ||
| as user data per ISO on TCP connection / for open communication / by means of T blocks / maximum | 65536 byte | |
| number of Multicast stations | 6 | |
| performance data / S7 communication | ||
| number of possible connections / for S7 communication | ||
| maximum | 64; depending on the system upper limit | |
| performance data / multi-protocol mode | ||
| number of active connections / with multi-protocol mode | 64 | |
| performance data / PROFINET communication / as PN IO controller | ||
| product function / PROFINET IO controller | Yes | |
| number of PN IO devices / on PROFINET IO controller / operable / total | 128 | |
| number of PN IO IRT devices / on PROFINET IO controller / operable | 64 | |
| number of external PN IO lines / with PROFINET / per rack | 10 | |
| data volume | ||
| as user data for input variables / as PROFINET IO controller / maximum | 8 Kibyte | |
| as user data for output variables / as PROFINET IO controller / maximum | 8 Kibyte | |
| as user data for input variables per PN IO device / as PROFINET IO controller / maximum | 1433 byte | |
| as user data for output variables per PN IO device / as PROFINET IO controller / maximum | 1433 byte | |
| as user data for input variables per PN IO device / for each sub-module as PROFINET IO controller / maximum | 256 byte | |
| as user data for output variables per PN IO device / for each sub-module as PROFINET IO controller / maximum | 256 byte | |
| performance data / PROFINET communication / as PN IO device | ||
| product function / PROFINET IO device | Yes | |
| data volume | ||
| as user data for input variables / as PROFINET IO device / maximum | 8192 byte | |
| as user data for output variables / as PROFINET IO device / maximum | 8192 byte | |
| as user data for input variables / for each sub-module as PROFINET IO device | 256 byte | |
| as user data for output variables / for each sub-module as PROFINET IO device | 256 byte | |
| as user data for the consistency area for each sub-module | 256 byte | |
| number of submodules / per PROFINET IO-Device | 32 | |
| performance data / telecontrol | ||
| protocol / is supported | ||
| TCP/IP | Yes | |
| product functions / management, configuration, engineering | ||
| product function / MIB support | Yes | |
| protocol / is supported | ||
| SNMP v1 | Yes | |
| DCP | Yes | |
| LLDP | Yes | |
| configuration software | ||
| required | STEP 7 Professional V18 (TIA Portal) or higher | |
| identification & maintenance function | ||
| I&M0 - device-specific information | Yes | |
| I&M1 - higher level designation/location designation | Yes | |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 | |
| product functions / diagnostics | ||
| product function / web-based diagnostics | Yes; via S7-1500 CPU | |
| product functions / switch | ||
| product feature / switch | Yes | |
| product function | ||
| switch-managed | No | |
| with IRT / PROFINET IO switch | Yes | |
| configuration with STEP 7 | Yes | |
| product functions / routing | ||
| service / routing / note | IP routing up to 1 Mbps | |
| product function | ||
| static IP routing | Yes | |
| static IP routing IPv6 | No | |
| dynamic IP routing | No | |
| dynamic IP routing IPv6 | No | |
| protocol / is supported | ||
| RIP v1 | No | |
| RIPv2 | No | |
| RIPnG for IPv6 | No | |
| OSPFv2 | No | |
| OSPFv3 for IPv6 | No | |
| VRRP | No | |
| VRRP for IPv6 | No | |
| BGP | No | |
| PPP | No | |
| PPoE via DSL | No | |
| product functions / redundancy | ||
